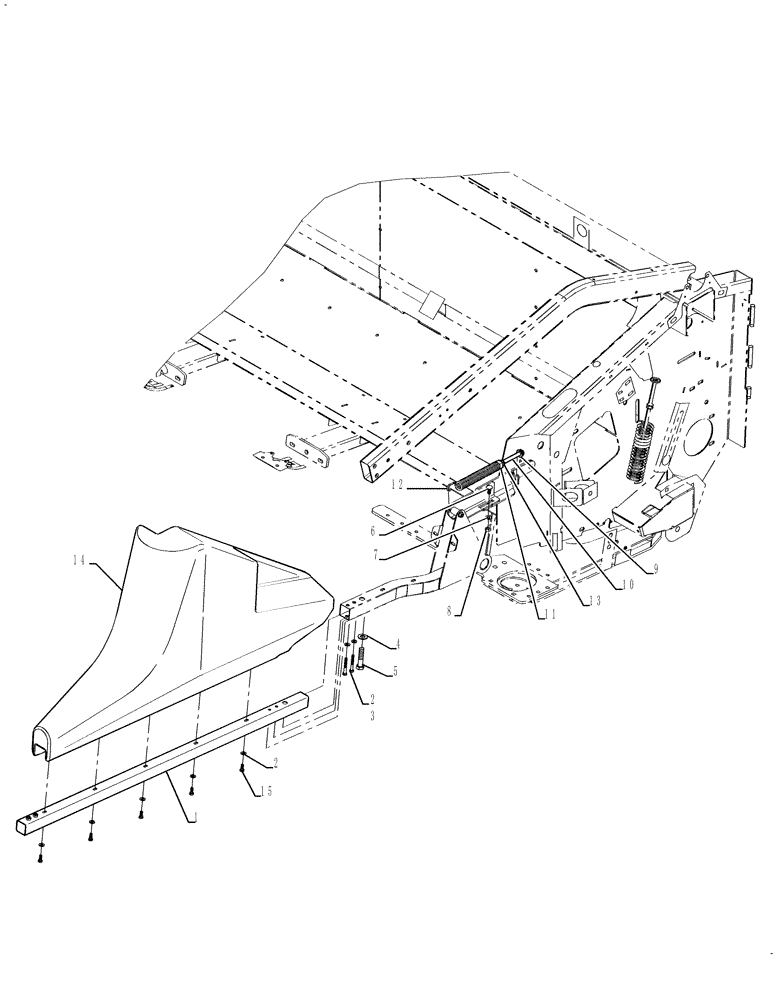

Запчасти Case IH 3020-25 (58.131.01[02]) - DIVIDER ASSEMBLY, LONG, LEFT HAND (58) - ATTACHMENTS/HEADERS

1

84308107

TUBE

Long Divider, Left Hand

1шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

7шт.

3

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

2шт.

4

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

5

120092

BOLT,M16 x 70mm, Cl 8.8

1шт.

6

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

1шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

8

100016

NUT,M10 x 1.5, Cl 8

1шт.

9

496-21053

WASHER,17/32" x 1 1/16" x .134"

1шт.

10

86508731

BOLT,Hex, 1/2 - 13" x 7", Gr 8

1шт.

11

1316731C1

SPECIAL NUT

1шт.

12

84306385

SPRING

For Double Hook Design Refer to SB 2011/6 HDRUP00311

1шт.

13

9706685

NUT,M12 x 1.75, Cl 8

1шт.

14

84254734

DIVIDER POINT

Long, Left Hand

1шт.

15

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

5шт.
