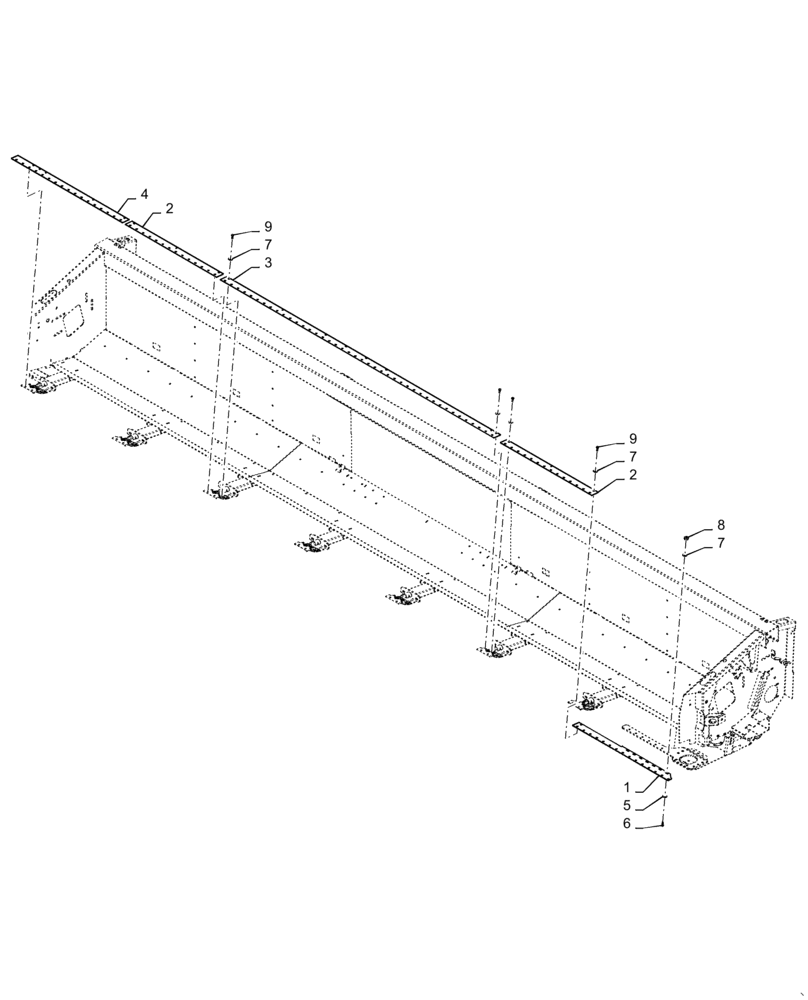

Запчасти Case IH 3020-25 (58.130.03[03]) - FLOOR, ASSY, CUTTERBAR ASSY, SINGLE DRIVE (58) - ATTACHMENTS/HEADERS

1

84126951

BAR

LH

1шт.

1

84195556

CUTTERBAR

LH, Includes Hardware

1шт.

2

84211046

CUTTERBAR

Inside Piece

2шт.

2

84294102

SERVICE KIT

Inside Piece, Includes Hardware

2шт.

3

84353032

CUTTERBAR,3198.4mm L

Center

1шт.

3

84353044

CUTTERBAR,3198.4mm L

Service Kit, Center, Includes Hardware

1шт.

4

84126957

BAR

RH

1шт.

4

84195560

SERVICE KIT

RH, Includes Hardware

1шт.

5

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

7шт.

6

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

7шт.

7

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

17шт.

8

100016

NUT,M10 x 1.5, Cl 8

7шт.

9

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

10шт.
