Запчасти Case IH 3020-25 (58.130.03[01]) - FLOOR ASSEMBLY, SINGLE DRIVE (58) - ATTACHMENTS/HEADERS

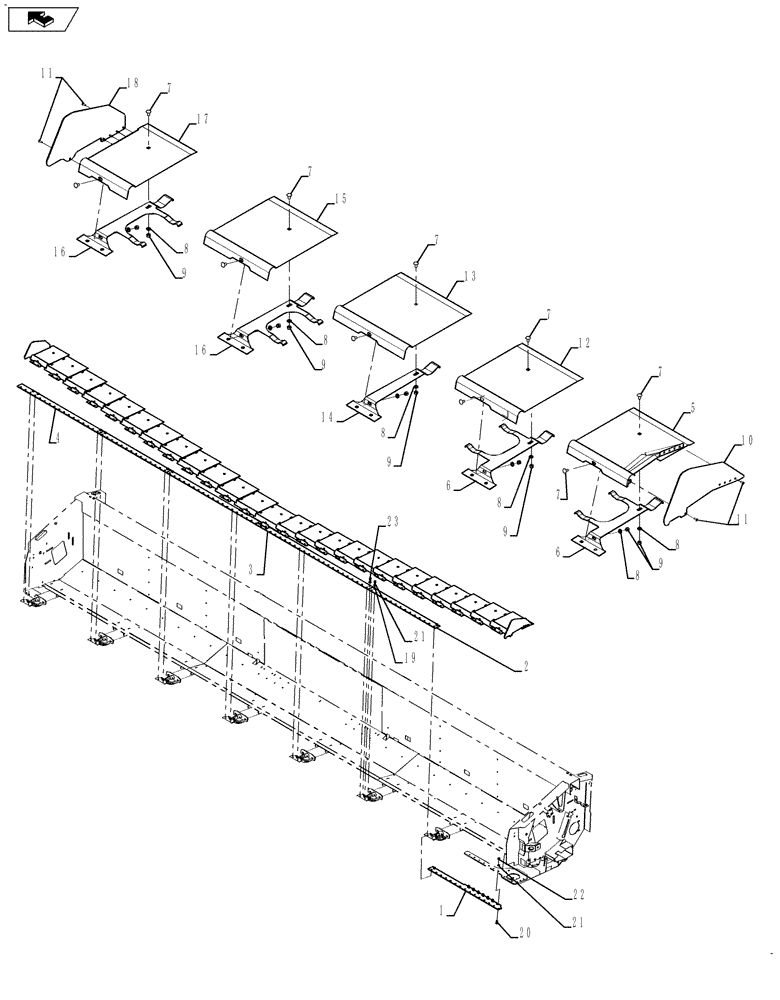

Схема запчастей Case IH 3020-25 - (58.130.03[01]) - FLOOR ASSEMBLY, SINGLE DRIVE (58) - ATTACHMENTS/HEADERS
10
13
18
9
7
3
7
19
15
16
4
23
2
7
11
11
6
14
22
5
7
7
8
16
21
1
9
9
home
20
7
8
17
8
9
6
9
8
21
12
8
8

Артикул

Название

Примечание

Количество

1

84195556

CUTTERBAR

CUTTERBAR, Left Hand, Includes Hardware, 20, 25, 30, And 35 Foot Header

1шт.

2

84195559

SERVICE KIT

CUTTERBAR, Center, Includes Hardware, 25, 30 And 35 Foot Header

1шт.

3

84359494

SERVICE KIT

CUTTERBAR, IN, Includes Hardware, 20 Foot Header

1шт.

3

84195558

SERVICE KIT

CUTTERBAR, IN, Includes Hardware, 35 Foot Header

1шт.

3

84292854

CUTTERBAR,1826.8mm L

Kit, IN, Includes Hardware, 30 Foot Header

2шт.

3

84294102

SERVICE KIT

CUTTERBAR, IN, Includes Hardware, 25 Foot Header

1шт.

3

84353044

CUTTERBAR,3198.4mm L

Kit, Center, 30, 35 Foot Header

1шт.

4

84359495

SERVICE KIT

CUTTERBAR, Right Hand, Includes Hardware, 20 Foot Header

1шт.

4

84195560

SERVICE KIT

CUTTERBAR, Right Hand, Includes Hardware, 25, 30, And 35 Foot Header

1шт.

5

84330933

SHEET

Floor Assembly, Left Hand

1шт.

6

84324323

LEAF SPRING

Floor Assembly, Left Hand

12шт.

7

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

1шт.

8

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

9

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

10

84332238

PLATE

Left Hand

1шт.

11

445394

RIVET,Pop, 3/16" x 1/2" OAL

10шт.

12

84330930

SHEET

Floor Assembly, Left Hand, 20 Foot Header

9шт.

12

84330930

SHEET

Floor Assembly, Left Hand, 25 Foot Header

11шт.

12

84330930

SHEET

Floor Assembly, Left Hand, 30 Foot Header

14шт.

12

84330930

SHEET

Floor Assembly, Left Hand, 35 Foot Header

16шт.

13

84330928

SHEET

Floor Assembly, Center

1шт.

14

84324326

LEAF SPRING

Floor Assembly, Center

1шт.

15

84330932

SHEET

Floor Assembly, Right Hand, 20 Foot Header

8шт.

15

84330932

SHEET

Floor Assembly, Right Hand, 25 Foot Header

11шт.

15

84330932

SHEET

Floor Assembly, Right Hand, 30 Foot Header

13шт.

15

84330932

SHEET

Floor Assembly, Right Hand, 35 Foot Header

16шт.

16

84324324

LEAF SPRING

Floor Assembly, Right Hand

12шт.

17

84330929

SHEET

Floor Assembly, Right Hand End

1шт.

18

84174195

SEAL

Floor Assembly, Right Hand End

1шт.

19

394629

WASHER,10.5mm ID x 24mm OD x 3mm Thk

8шт.

20

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

7шт.

21

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

15шт.

22

100016

NUT,M10 x 1.5, Cl 8

7шт.

23

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

8шт.

5

84494553

SHEET

Floor Assembly, Left Hand End, Start Year: 01-JAN-12

1шт.

10

84494081

PLATE

Floor Assembly, End Plate, Start Year: 01-JAN-12

1шт.

17

84483537

SHEET

Floor Assembly, Right Hand End, Start Year: 01-JAN-12

1шт.

Выбрано товаров: 37
