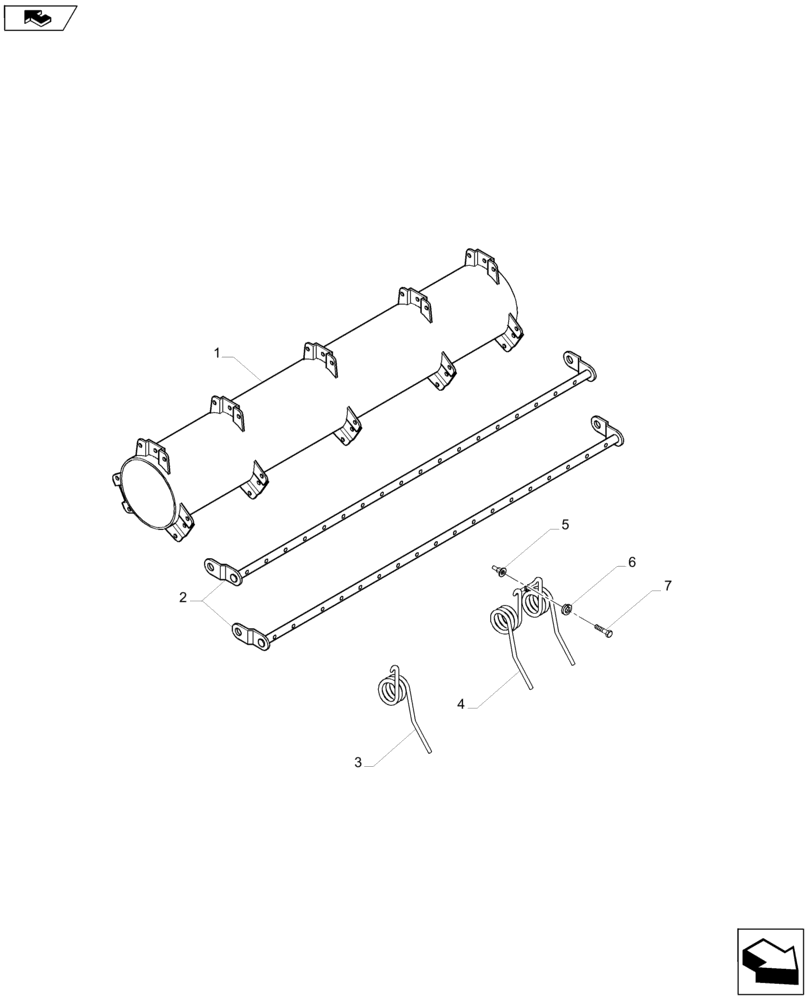

Запчасти Case IH 3020-25 (58.101.06) - STEEL TINES, PICKUP REEL, 6 BAT (58) - ATTACHMENTS/HEADERS

1

84297394

SUPPORT TUBE

Central

1шт.

2

84297499

TUBE

3rd hole = 318.31 mm

3шт.

2

84297498

TUBE

3rd hole = 242.11 mm

3шт.

3

87017196

TINE

Steel, Single

33шт.

4

87017195

TINE

Steel, Double

159шт.

5

87029978

KIT

Steel Tine

192шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

192шт.

7

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

192шт.
