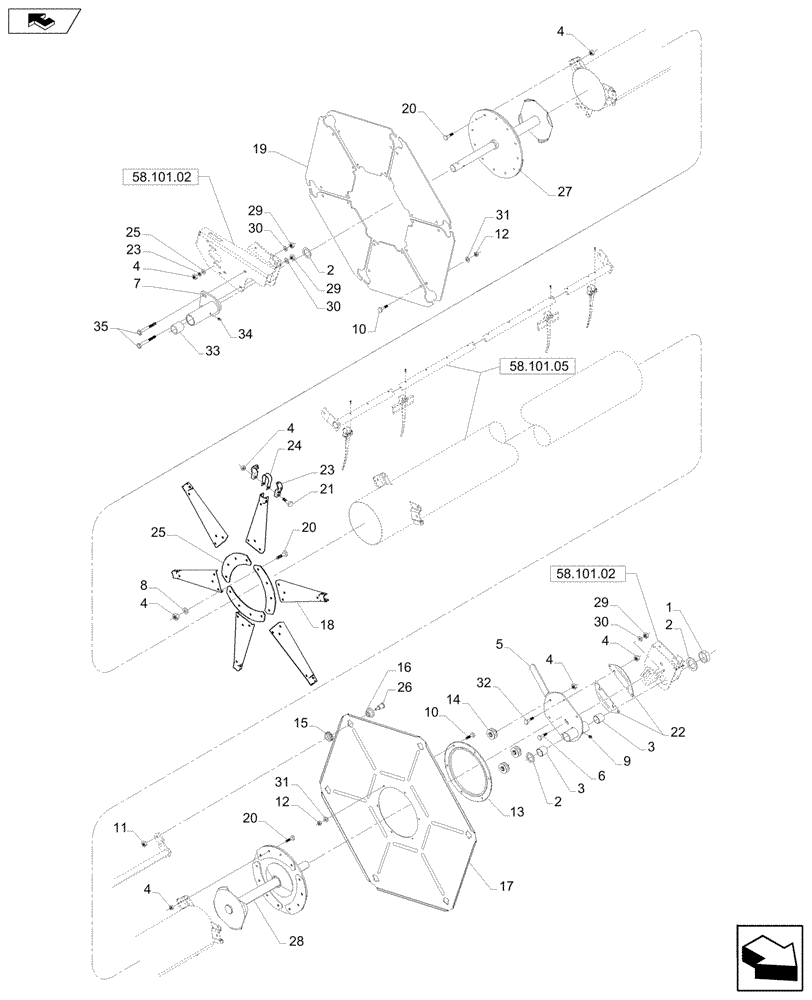

Запчасти Case IH 3020-25 (58.101.04[02]) - PICKUP REEL, PLASTIC TINES (58) - ATTACHMENTS/HEADERS

1

86518431

COLLAR

2шт.

2

167934

WASHER,1.62" ID x 2.25" OD x 0.139"

4шт.

3

167940

BUSHING,39.76mm ID x 44.53mm OD x 38.1mm L

2шт.

4

100037

LOCK NUT,M10 x 1.5, Cl 8

96шт.

5

86609389

FRAME

1шт.

6

86512428

CARRIAGE BOLT,Sq Nk, M12 x 40mm, Cl 8.8, Full Thd

2шт.

7

84473235

HUB

1шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

60шт.

9

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

1шт.

10

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

11

100038

NUT,M12 x 1.75, Cl 8

6шт.

12

9706690

NUT,M8 x 1.25, Cl 8

6шт.

13

167953

RING

1шт.

14

86518386

BALL BEARING,10 mm ID x 38.97 mm OD x 44.15 mm

6шт.

15

86518392

ROLLER BEARING,30.963 mm ID x 52.4 mm OD x 14.5 mm

6шт.

16

86518393

PLUG,22 mm ID x 30 mm OD

6шт.

17

86609726

SHIELD

1шт.

18

87523837

ARM

30шт.

19

86626144

SHIELD

6шт.

20

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

60шт.

21

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

30шт.

22

87047050

SHIELD

2шт.

23

9842300

BEARING ASSY,=H1204&I1204

60шт.

24

9842301

STRAP

30шт.

25

87053169

PLATE

18шт.

26

86518387

SCREW

6шт.

27

427411A1

SHAFT

Driving, RH 20 Foot Header

1шт.

27

84212117

SHAFT

Driving, RH 35 Foot Header

1шт.

27

87037954

SHAFT

Driving, RH 25 and 30 Foot Header

1шт.

28

86609553

SHAFT

Driven, LH 20, 25 and 30 Foot Header

1шт.

28

84212118

SHAFT

Driven, LH 35 Foot Header

1шт.

29

9706685

NUT,M12 x 1.75, Cl 8

3шт.

30

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

3шт.

31

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

32

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

6шт.

33

84473233

BRONZE BUSHING

2шт.

34

87414

LUBE NIPPLE,1/4" - 28

1шт.

35

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.
