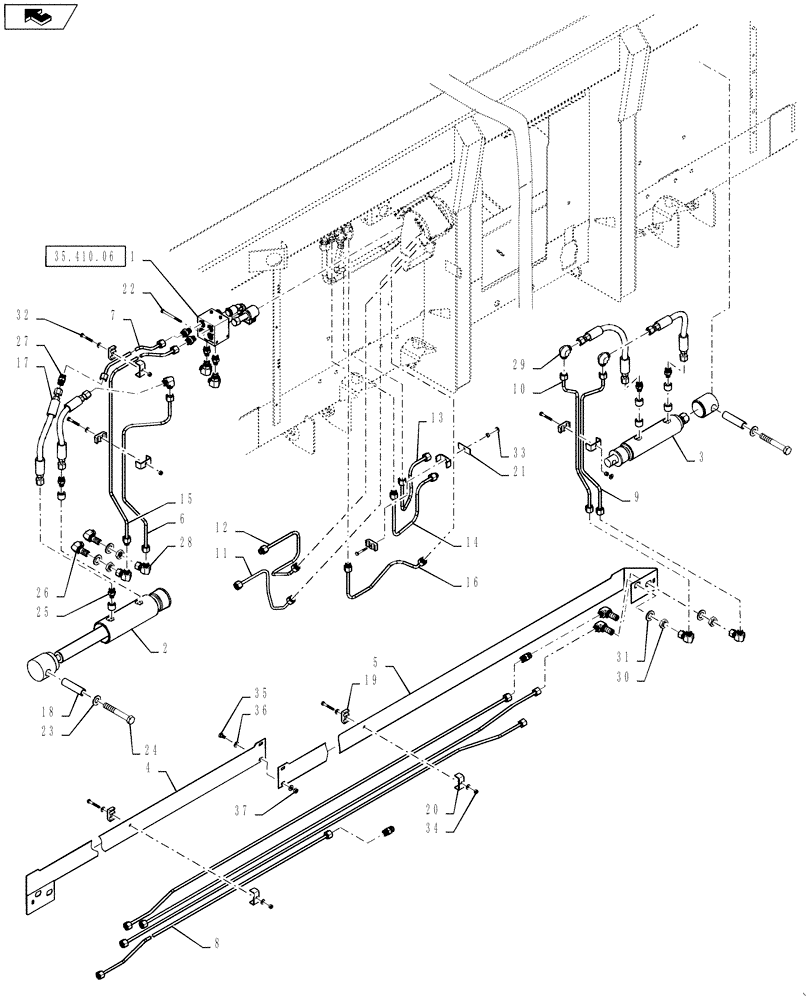

Запчасти Case IH 3020-25 (35.410.05) - HYDRAULIC CUTTERBAR SUSPENSION, 25, 30, 35 FOOT HEADER (35) - HYDRAULIC SYSTEMS

1

NSS

NOT SOLD SEPARAT

MANIFOLD, Hydraulic

1шт.

2

84210572

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 130mm Stroke

1шт.

3

84210573

HYDRAULIC CYLINDER,Double Acting, 28.57mm Rod, 130mm Stroke

1шт.

3

84412622

SEAL KIT

Not Shown

1шт.

4

84328549

BRACKET

1шт.

5

84345689

BRACKET

1шт.

6

84424278

HYD TUBE

Hydraulic System

1шт.

7

84327589

HYD TUBE

Hydraulic System

1шт.

8

84327599

HYD TUBE

Hydraulic System

4шт.

9

84327597

HYD TUBE

Hydraulic System

1шт.

10

84410250

HYD TUBE

Hydraulic System

1шт.

11

84411471

HYD TUBE

Hydraulic System

1шт.

12

84411473

HYD TUBE

Hydraulic System

1шт.

13

84411475

HYD TUBE

Hydraulic System

1шт.

14

84411477

HYD TUBE

Hydraulic System

1шт.

15

84411479

HYD TUBE

Hydraulic System

1шт.

16

84412204

HYD TUBE

Hydraulic System

1шт.

17

84127229

HYDRAULIC HOSE,9.53mm ID x 338mm L, SAE 100R16

Hydraulic System

4шт.

18

84263584

SPACER

2шт.

19

430357

CLAMP

12шт.

20

431941

SUPPORT

6шт.

21

434097

SUPPORT

1шт.

22

9850685

BOLT,Hex, M6 - 1 x 90mm, Cl 8.8

2шт.

23

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

2шт.

24

43874

BOLT,Hex, M16 x 110, 8.8

2шт.

25

86580177

HYD CONNECTOR,11/16"-16 ORFS x M12 x 1.5 ORB

4шт.

26

87317453

ELBOW,90 Degree, 11/16" - 16, ORFS, Blkhd

4шт.

27

84431546

UNION,11/16"-16 ORFS

4шт.

28

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

4шт.

29

87564749

ELBOW,90 Degree, 11/16"-16, ORFS

3шт.

30

87016606

WASHER,20mm ID x 34mm OD x 3mm Thk

4шт.

31

87010704

BHD LOCK NUT,11/16"-16

4шт.

32

43118

BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8

6шт.

33

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

10шт.

34

353308

NUT,M6 x 1.0, Cl 8

8шт.

35

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

36

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

37

43362

NUT,M8 x 1.25, Cl 10

2шт.
