Запчасти Case IH 3020-20 (35.410.04[02]) - SUSPENSION, CUTTERBAR, IN-CAB ADJUST OPTION (35) - HYDRAULIC SYSTEMS

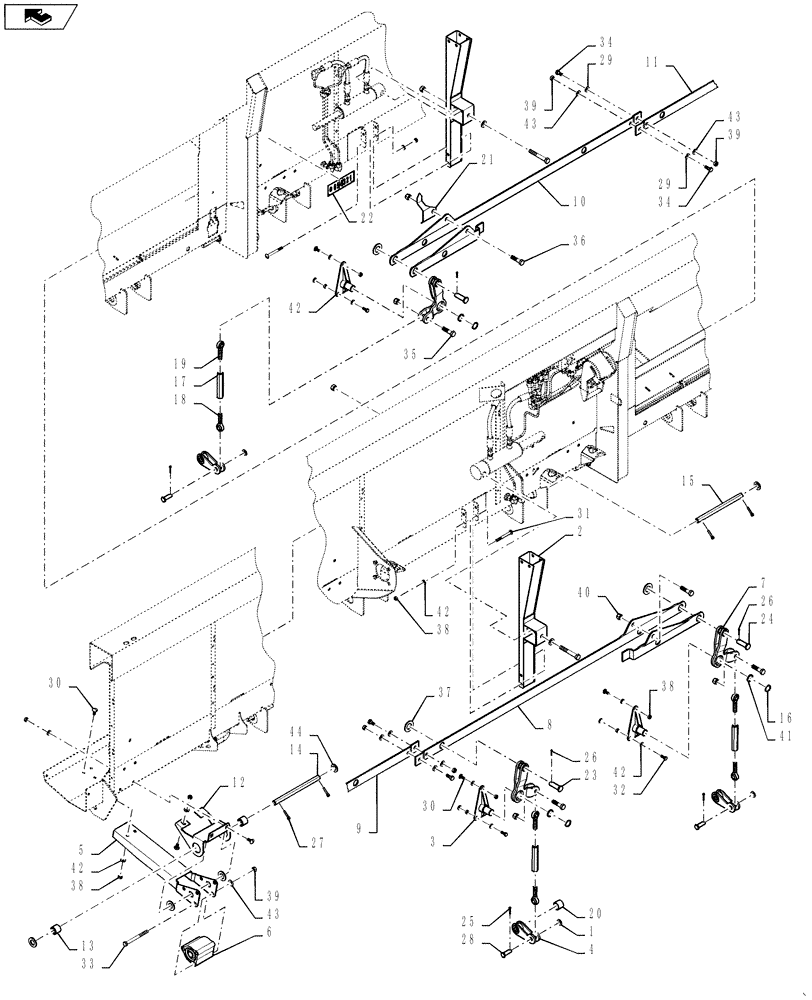

Схема запчастей Case IH 3020-20 - (35.410.04[02]) - SUSPENSION, CUTTERBAR, IN-CAB ADJUST OPTION (35) - HYDRAULIC SYSTEMS
16
22
43
43
37
11
40
21
1
39
12
9
30
10
32
39
17
30
42
36
42
39
13
7
38
25
42
14
26
28
41
26
6
44
19
29
15
5
29
38
31
34
home
34
8
2
23
33
43
18
4
20
42
38
27
3
35
24

Артикул

Название

Примечание

Количество

1

86511326

WASHER,17mm ID x 30mm OD x 3mm Thk

25 Foot

8шт.

1

86511326

WASHER,17mm ID x 30mm OD x 3mm Thk

30 Foot

10шт.

1

86511326

WASHER,17mm ID x 30mm OD x 3mm Thk

35 Foot

12шт.

2

84323744

SUPPORT

2шт.

3

84248754

BRACKET

25 Foot

8шт.

3

84248754

BRACKET

30 Foot

10шт.

3

84248754

BRACKET

35 Foot

12шт.

4

84235768

ARM

25 Foot

8шт.

4

84235768

ARM

30 Foot

10шт.

4

84235768

ARM

35 Foot

12шт.

5

84343827

CHANNEL

1шт.

6

84126918

TORSION SPRING,19.2mm ID x 80.5mm OD x 101.22mm L

1шт.

7

84322612

BRACKET

25 Foot, Inc. 43, 44

8шт.

7

84322612

BRACKET

30 Foot, Inc. 43, 44

10шт.

7

84322612

BRACKET

35 Foot, Inc. 43, 44

12шт.

8

84335949

ADJUSTING PLATE

1шт.

9

84335952

ADJUSTING PLATE

1шт.

10

84335954

ADJUSTING PLATE

1шт.

11

84335956

ADJUSTING PLATE

1шт.

11

84416268

ADJUSTING PLATE

25 Foot

1шт.

12

84254760

MOUNTING PLATE

1шт.

13

84271863

BUSHING

Hex

2шт.

14

87736132

SHAFT

Hex

1шт.

15

84251484

SHAFT

Hex

1шт.

16

370003

SNAP RING,M30, External

30 Foot

10шт.

16

370003

SNAP RING,M30, External

25 Foot

8шт.

16

370003

SNAP RING,M30, External

35 Foot

12шт.

17

84398437

TURNBUCKLE

30 Foot

10шт.

17

84398437

TURNBUCKLE

35 Foot

12шт.

17

84398437

TURNBUCKLE

25 Foot

8шт.

18

84247642

BALL JOINT

30 Foot

10шт.

18

84247642

BALL JOINT

35 Foot

12шт.

19

84283454

BALL JOINT

Left Hand, 30 Foot

10шт.

18

84247642

BALL JOINT

25 Foot

8шт.

19

84283454

BALL JOINT

Left Hand, 35 Foot

12шт.

20

84129438

SPACER,24mm ID x 39mm OD x 29mm L

3шт.

21

84126961

INDICATOR

1шт.

19

84283454

BALL JOINT

Left Hand, 25 Foot

8шт.

22

84389900

DECAL

Indicator

1шт.

23

84252590

PIN

4шт.

24

84264006

PIN

30 Foot

6шт.

24

84264006

PIN

35 Foot

8шт.

25

130007

COTTER PIN,M4 x 25

30 Foot

10шт.

25

130007

COTTER PIN,M4 x 25

35 Foot

12шт.

26

412686

COTTER PIN,M5 x 32

30 Foot

10шт.

24

84264006

PIN

25 Foot

4шт.

26

412686

COTTER PIN,M5 x 32

35 Foot

12шт.

27

412687

COTTER PIN,6.3mm OD x 32mm OAL

30 Foot

12шт.

27

412687

COTTER PIN,6.3mm OD x 32mm OAL

35 Foot

14шт.

25

130007

COTTER PIN,M4 x 25

25 Foot

8шт.

28

9503184

CLEVIS PIN,M16 x 50

30 Foot

10шт.

28

9503184

CLEVIS PIN,M16 x 50

35 Foot

12шт.

29

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

4шт.

26

412686

COTTER PIN,M5 x 32

25 Foot

8шт.

30

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

30 Foot

16шт.

30

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

35 Foot

18шт.

31

87646163

CARRIAGE BOLT,Short Sq Nk, M10 x 1.5 x 100mm, Cl 8.8

8шт.

27

412687

COTTER PIN,6.3mm OD x 32mm OAL

25 Foot

10шт.

32

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

30 Foot

20шт.

32

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

35 Foot

24шт.

33

395277

BOLT,Hex, M12 x 1.75 x 130mm, Cl 8.8

3шт.

28

9503184

CLEVIS PIN,M16 x 50

25 Foot

8шт.

34

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

4шт.

35

323866

BOLT,Hex, M16 x 2.0 x 60mm, Cl 8.8

30 Foot

10шт.

35

323866

BOLT,Hex, M16 x 2.0 x 60mm, Cl 8.8

35 Foot

12шт.

36

120092

BOLT,M16 x 70mm, Cl 8.8

2шт.

30

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

25 Foot

14шт.

37

86511327

WASHER,21mm ID x 37mm OD x 3mm Thk

30 Foot

10шт.

37

86511327

WASHER,21mm ID x 37mm OD x 3mm Thk

35 Foot

12шт.

38

86500689

NUT,M10 x 1.5, Cl 10

30 Foot

24шт.

38

86500689

NUT,M10 x 1.5, Cl 10

35 Foot

26шт.

32

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

25 Foot

16шт.

39

337475

NUT,M12, Cl 10

7шт.

40

86000441

NUT,M16 x 2.0, Cl 8

30 Foot

12шт.

40

86000441

NUT,M16 x 2.0, Cl 8

35 Foot

14шт.

35

323866

BOLT,Hex, M16 x 2.0 x 60mm, Cl 8.8

25 Foot

8шт.

42

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

30 Foot

44шт.

42

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

35 Foot

50шт.

43

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

7шт.

44

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

4шт.

37

86511327

WASHER,21mm ID x 37mm OD x 3mm Thk

25 Foot

8шт.

38

86500689

NUT,M10 x 1.5, Cl 10

25 Foot

22шт.

40

86000441

NUT,M16 x 2.0, Cl 8

25 Foot

10шт.

41

14497531

WASHER,31mm ID x 56mm OD x 4mm Thk

31 x 56 x 4 mm, 25 Foot

8шт.

41

14497531

WASHER,31mm ID x 56mm OD x 4mm Thk

31 x 56 x 4 mm, 30 Foot

10шт.

41

14497531

WASHER,31mm ID x 56mm OD x 4mm Thk

31 x 56 x 4 mm, 35 Foot

12шт.

42

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

25 Foot

38шт.

43

210022

BUSHING

(Not Shown)

1шт.

44

382974

BUSHING,20.05mm ID x 23mm OD x 15mm L

(Not Shown)

2шт.

Выбрано товаров: 89
