Запчасти Case IH 3020-20 (88.058.17) - KIT MAINT. FLEX HEADER DOUBLE DRIVE (88) - ACCESSORIES

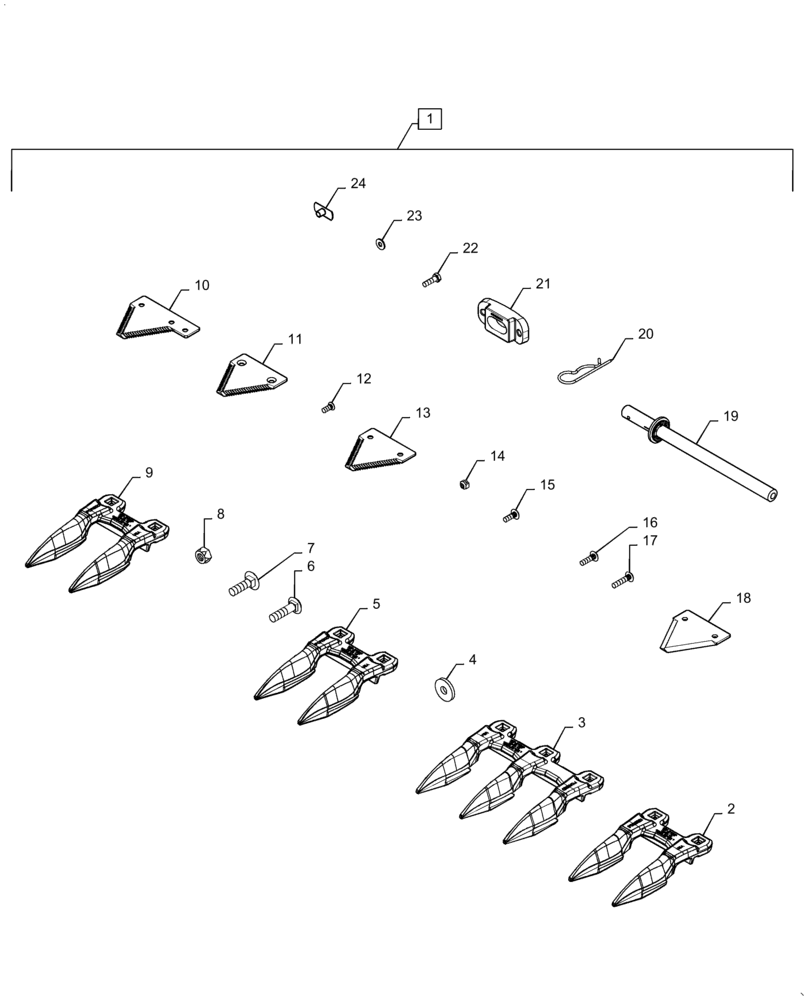

Схема запчастей Case IH 3020-20 - (88.058.17) - KIT MAINT. FLEX HEADER DOUBLE DRIVE (88) - ACCESSORIES
2
12
22
3
5
13
21
9
1
15
4
7
18
23
14
16
19
20
6
24
10
11
8
17

Артикул

Название

Примечание

Количество

1

47800626

KIT

Includes 2 - 24

1шт.

2

87702974

GUARD

Knife 3IN

3шт.

3

84225871

KNIFE COVER

Knife 3 Point

1шт.

4

83904166

WASHER,10.5mm ID x 30mm OD x 4mm Thk

2шт.

5

87470814

KNIFE COVER

Knife Overlap

1шт.

6

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

4шт.

7

9833222

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

4шт.

8

100037

LOCK NUT,M10 x 1.5, Cl 8

8шт.

9

87702973

GUARD

HT Knife 3IN

12шт.

10

87470188

KNIFE SECTION

Tomahawk

1шт.

11

87470187

KNIFE SECTION

OS BT CST BH

2шт.

12

87470018

SCREW,FLAT, M6 x 14.5mm, Cl 10.9

6шт.

13

87470186

KNIFE SECTION

OS BT CSB BH

3шт.

14

84429102

LOCK NUT

50шт.

15

87663841

SCREW,Pan HD, M6 x 18mm, Cl 10.9

50шт.

16

84429100

SCREW,Pan HD, M6 x 22mm, Cl 10.9

13шт.

17

84429101

SCREW,Pan HD, M6 x 28mm, Cl 10.9

18шт.

18

87728905

KNIFE SECTION

OS BT STD BH

25шт.

19

84194057

FINGER,Assembly, Grain Header

2шт.

20

740591

SPRING,M10 x 67

2шт.

21

87620690

GUIDE,Auger Finger

2шт.

22

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

23

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

24

84315756

NUT

12шт.

Выбрано товаров: 24
