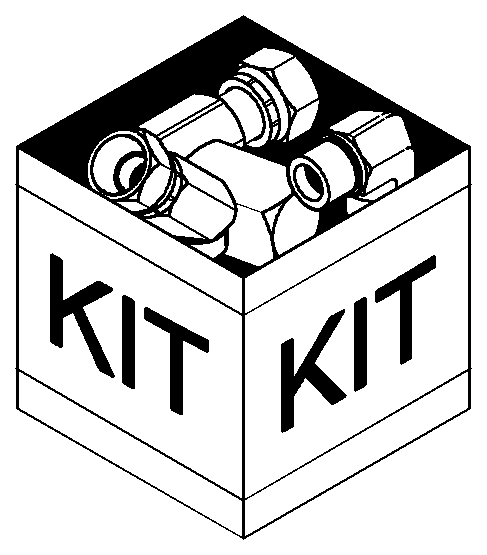

Запчасти Case IH 3020-20 (88.058.13[01]) - CUTTER BAR REBUILD KIT STD. GUARD SINGLE DRIVE 20FT WITHOUT KNIFE (88) - ACCESSORIES

1

47761081

KIT

Includes 2 - 14

1шт.

2

87702974

GUARD

3 inch Guard

4шт.

3

84422134

KNIFE CLIP

2шт.

4

43473

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

40шт.

5

9833222

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

40шт.

6

100037

LOCK NUT,M10 x 1.5, Cl 8

82шт.

7

87702973

GUARD

Knife 3"

36шт.

8

86630786

KNIFE CLIP,Heat Treated

18шт.

9

86630787

KNIFE CLIP

18шт.

10

87742342

PLOW BOLT,M10 x 1.5 x 30mm, Class 10.9

20шт.

11

86619802

FLANGE NUT,M10 x 1.5, Cl 8

20шт.

12

84245171

GUARD

RH Knife 3"

1шт.

13

84422992

ADJUSTING PLATE

2шт.

14

86512426

CARRIAGE BOLT,Sq Nk, M10 x 50mm, Cl 8.8

2шт.
