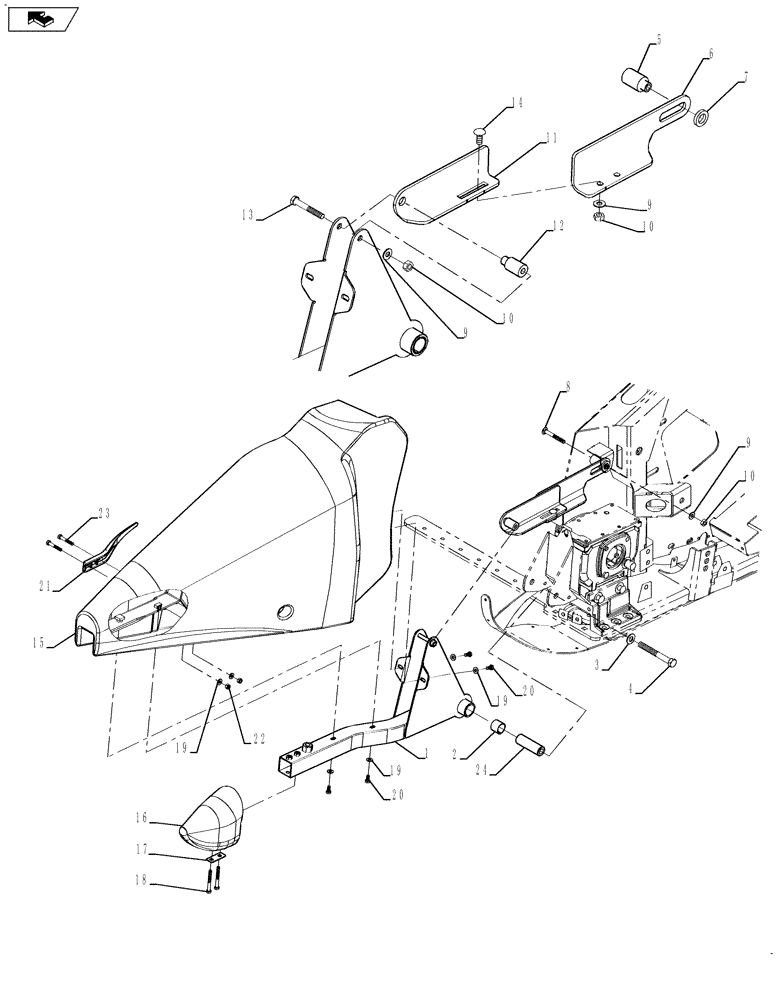

Запчасти Case IH 3020-20 (58.131.01[01]) - DIVIDER ASSEMBLY, LEFT HAND (58) - ATTACHMENTS/HEADERS

1

84137065

DIVIDER

Left Hand

1шт.

2

210022

BUSHING

Left Hand Divider

2шт.

3

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

4

354360

BOLT,Hex, M16 x 2 x 130mm, Cl 8.8

1шт.

5

84173955

SPACER,11mm ID x 30mm OD x 55mm L

Stepped, Wide/Dual Drive

1шт.

6

84306410

LINKAGE

Left Hand

1шт.

7

84206679

WASHER,19mm ID x 32mm OD x 6mm Thk

2шт.

7

84396244

LINKAGE

If required

1шт.

8

412189

CARRIAGE BOLT,Short Sq Nk, M10 x 1.5 x 80mm, Cl 8.8

1шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

10

100016

NUT,M10 x 1.5, Cl 8

3шт.

11

84306514

LINKAGE

Left Hand

1шт.

12

84137057

SPACER,11mm ID x 25mm OD x 50.8mm L

Lower Pivot

1шт.

13

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

1шт.

14

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

1шт.

15

84173224

DIVIDER

Left Hand

1шт.

16

87736718

DIVIDER POINT

1шт.

17

84147660

PLATE

Left Hand

1шт.

18

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

2шт.

19

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

20

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

21

87488952

DEFLECTOR

Crop

1шт.

22

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

23

120107

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8, Full Thd

2шт.

24

84137037

SPACER,17mm ID x 29.98mm OD x 93.15mm L

Lower Pivot

1шт.
