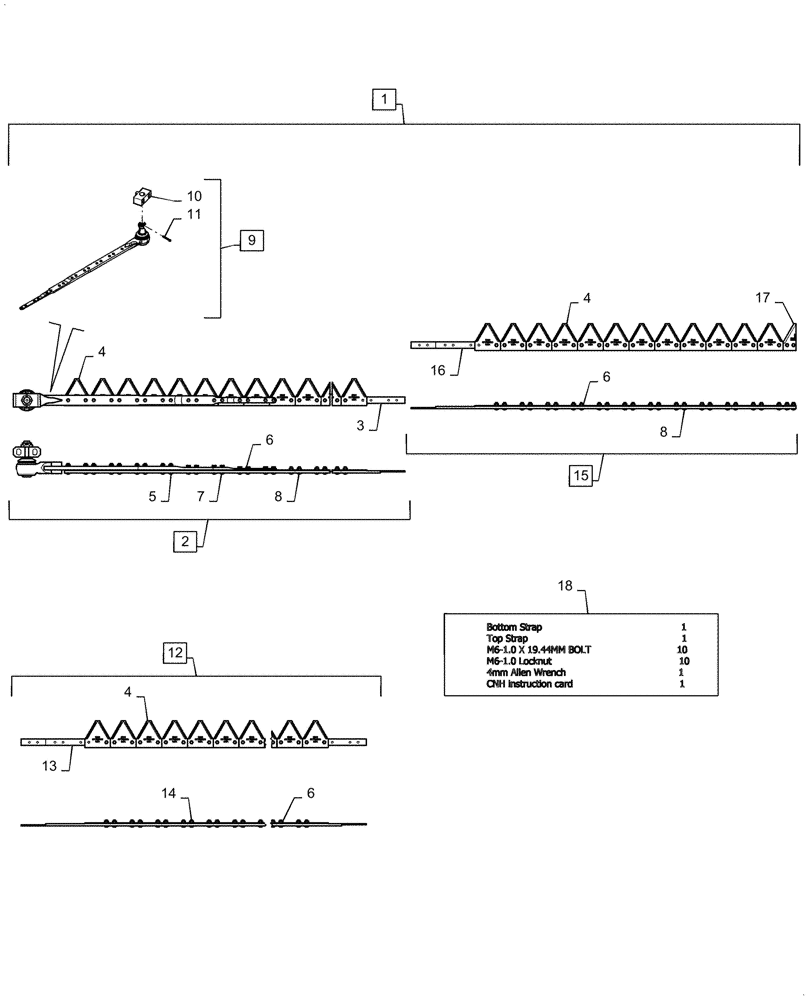

Запчасти Case IH 3020-20 (58.110.03) - SEGMENTED KNIFE ASSY (58) - ATTACHMENTS/HEADERS

1

84585671

KNIFE

20FT Fine, Segmented Assy, Incl 2 - 18

1шт.

1

84585670

KNIFE

20FT Coarse, Segmented Assy, Incl 2 - 18

1шт.

2

84585640

KNIFE

LH Fine, Segmented Head Assy, Incl 3 - 11

1шт.

2

84585639

KNIFE

LH Coarse, Segmented Head Assy, Incl 3 - 11

1шт.

3

84585680

STRIP

Knifeback

1шт.

4

87728899

KNIFE SECTION

Fine

80шт.

4

87728905

KNIFE SECTION

Coarse

80шт.

5

84429101

SCREW,Pan HD, M6 x 28mm, Cl 10.9

9шт.

6

84429102

LOCK NUT

146шт.

7

84429100

SCREW,Pan HD, M6 x 22mm, Cl 10.9

4шт.

8

87663841

SCREW,Pan HD, M6 x 18mm, Cl 10.9

75шт.

9

84275285

CUTTERHEAD

Incl 10 ,11, Serial Range: -YDH420266

1шт.

Applies To 84585671 And 84585670

1шт.

9

84275287

CUTTERHEAD

Incl 10 ,11, Start Serial: YDH420267

1шт.

Applies To 47601030 And 47601031

1шт.

10

84275917

CONNECTING BLOCK

, Serial Range: -YDH420266

1шт.

Applies To 84585671 And 84585670

1шт.

10

47390299

BLOCK

, Start Serial: YDH420267

1шт.

Applies To 47601030 And 47601031

1шт.

11

300595

COTTER PIN,M4 x 40

1шт.

12

84585646

KNIFE

Center Fine, Segmented Assy, Incl 4, 6, 13, 14

1шт.

12

84585645

KNIFE

Center Coarse, Segmented Assy, Incl 4, 6, 13, 14

1шт.

13

NSS

NOT SOLD SEPARAT

Knifeback

1шт.

14

86563537

BOLT

58шт.

15

84585655

KNIFE

Tail Assy, Fine, Segmented, Incl 4, 6, 8, 16, 17

1шт.

15

84585654

KNIFE

Tail Assy, Coarse, Segmented, Incl 4, 6, 8, 16, 17

1шт.

16

NSS

NOT SOLD SEPARAT

Knifeback

1шт.

17

84543491

KNIFE SECTION

Half

1шт.

18

84585647

SERVICE KIT

Metric Splice

2шт.
