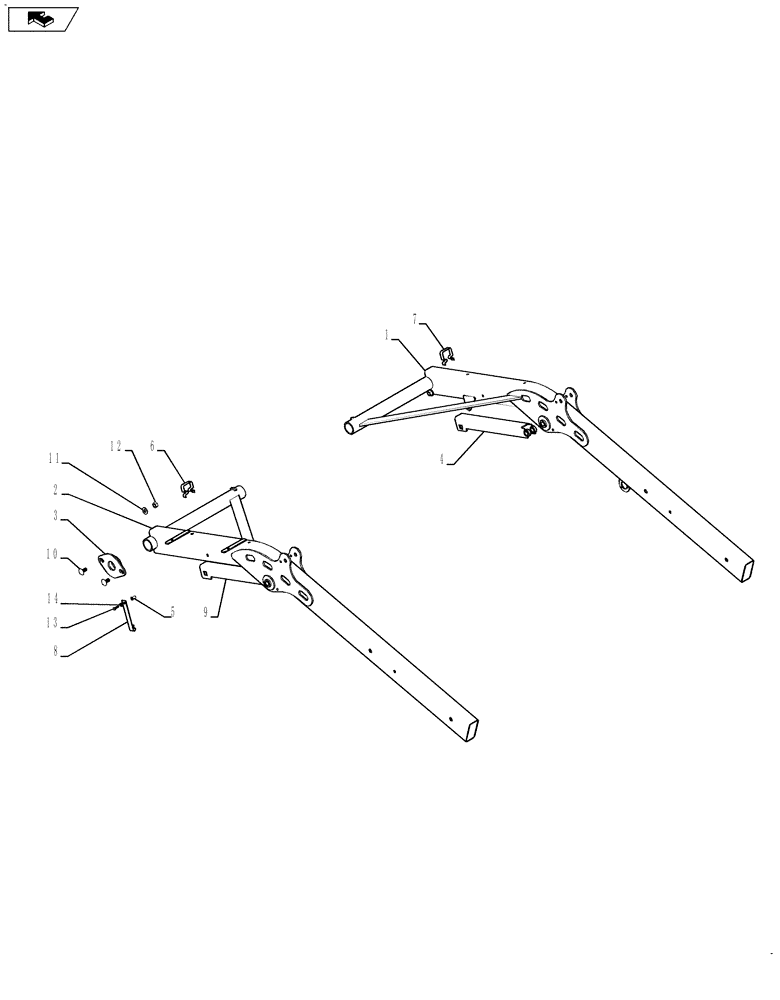

Запчасти Case IH 3020-20 (58.101.01) - REEL ARMS (58) - ATTACHMENTS/HEADERS

1

84348475

ARM

Reel, Left Hand

1шт.

2

84348476

ARM

Reel, Right Hand

1шт.

3

87645701

HINGE

Reel Arm

2шт.

4

84234631

SUPPORT

Reel Arm, Left Hand

1шт.

5

9833239

THREADED INSERT

M6

6шт.

6

84242532

SPRING CLIP

Reel Arm, Right Hand

1шт.

7

84242566

SPRING CLIP

Reel Arm, Left Hand

1шт.

8

84072277

HOOK

2шт.

9

84242351

SUPPORT

Reel Arm, Right Hand

1шт.

10

374895

CARRIAGE BOLT,M12 x 1.75 x 25mm, Cl 8.8

4шт.

11

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

12

9706685

NUT,M12 x 1.75, Cl 8

4шт.

13

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

14

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.
