Запчасти Case IH 3020-20 (58.100.02) - REEL DRIVE (58) - ATTACHMENTS/HEADERS

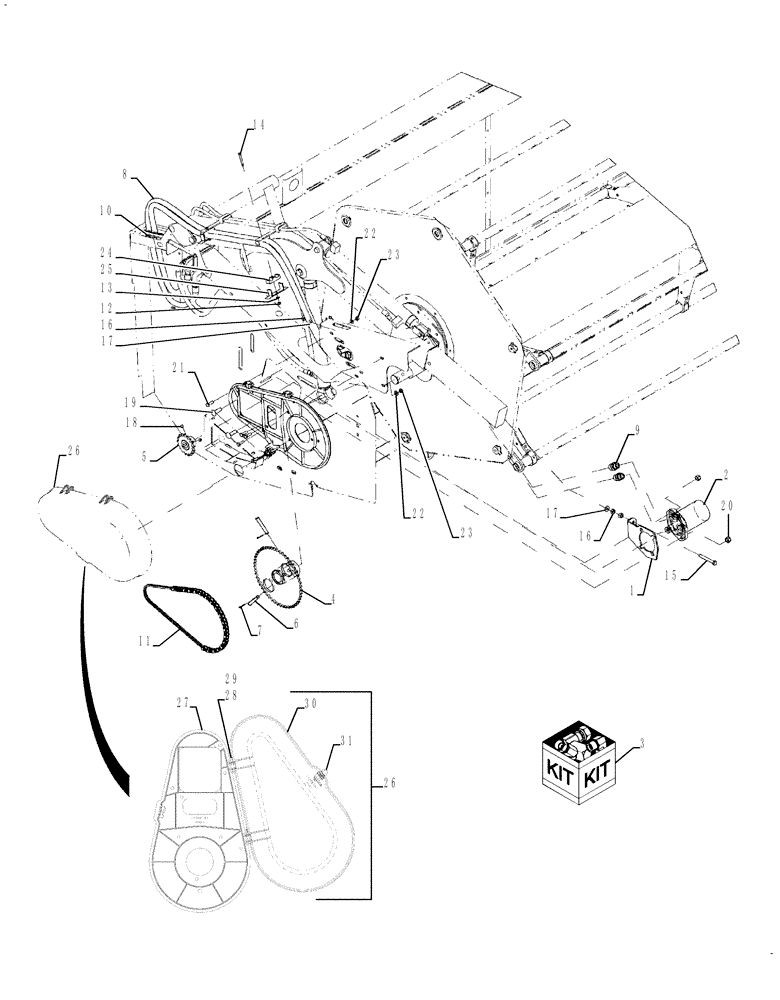

Схема запчастей Case IH 3020-20 - (58.100.02) - REEL DRIVE (58) - ATTACHMENTS/HEADERS
24
26
2
22
7
16
9
21
17
16
14
31
30
26
25
12
1
3
5
10
11
18
17
15
23
6
29
22
20
28
19
23
8
4
13
27

Артикул

Название

Примечание

Количество

1

87045366

ANGLE

Reel Drive Motor

1шт.

2

130409A1

MOTOR, HYDRAULIC

Reel Drive

1шт.

87036557R

REMAN-HYD MOTOR

3020-20, 3020-25, 3020-30, 3020-35 All (1/11-); Reman for new PN 130409A1

1шт.

87036557C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

3

188118A1

SEAL KIT

Reel Drive Motor

1шт.

4

129973A2

SPROCKET

Reel Driven, 51T

1шт.

5

87450165

DRIVE SPROCKET

Reel, 17T

1шт.

6

87036559

CLEVIS PIN,7/16" x 2.781"

2шт.

7

280251

COTTER PIN,3/32" OD x 1" OAL

2шт.

8

87659777

FLEXIBLE HOSE,12.70 mm ID x 2400.00 mm, SAE 100R17 Or SAE 100R16

Reel Drive

2шт.

9

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

2шт.

10

397985

BOLT,Hex, M6 x 70mm, Cl 8.8, Full Thd

1шт.

11

87053561

CHAIN,70 Links x 15.88mm = 1111.25mm

Reel Drive, #50, 43.75"

1шт.

12

353308

NUT,M6 x 1.0, Cl 8

3шт.

13

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

14

412559

BOLT,Hex, M6 x 50mm, Cl 8.8, Full Thd

2шт.

15

120116

SCREW,Hex, M10 x 1.5 x 80mm, Cl 8.8, Full Thd

Bolt, M10 X 80 Full, GR8.8, ZND

1шт.

16

100016

NUT,M10 x 1.5, Cl 8

3шт.

17

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

18

87304415

SET SCREW,3/8" - 24 x 3/8"

2шт.

19

328754

CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8

2шт.

20

100038

NUT,M12 x 1.75, Cl 8

2шт.

21

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

5шт.

22

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

23

9706690

NUT,M8 x 1.25, Cl 8

5шт.

24

430356

CLAMP

6шт.

25

84814948

SUPPORT

Reel Drive

3шт.

26

258978A1

SHIELD

Reel Drive, Inc. 27-31

1шт.

27

258980A1

SUPPORT

Reel Drive Shield

1шт.

28

439-1428

HEADED PIN,1/4" OD x 1-3/4" OAL, Gr 2

Reel Drive Shield

2шт.

29

432-612

COTTER PIN,3/32" x 3/4"

Reel Drive Shield

2шт.

30

84346731

SHIELD

Reel Drive

1шт.

31

291944A1

LATCH

Reel Drive Shield

1шт.

Выбрано товаров: 33
