Запчасти Case IH 2212 (10.00[1]) - OUTER DIVIDERS (58) - ATTACHMENTS/HEADERS

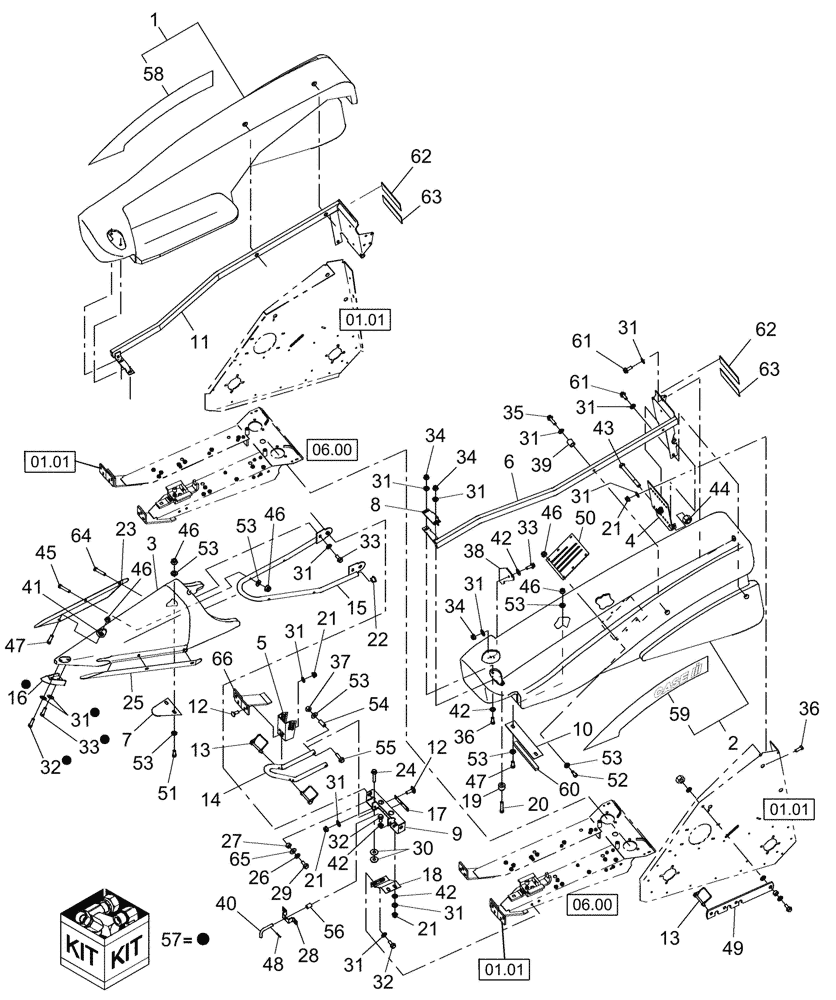

Схема запчастей Case IH 2212 - (10.00[1]) - OUTER DIVIDERS (58) - ATTACHMENTS/HEADERS
06.00
21
9
37
48
18
44
42
15
35
33
64
31
53
31
29
49
62
66
42
14
53
52
59
46
3
31
31
16
20
56
42
21
8
63
31
34
10
4
53
31
41
53
2
57
27
25
21
55
26
19
33
36
61
31
34
39
33
53
46
53
7
42
63
17
31
47
40
22
54
32
32
13
31
46
21
5
12
51
58
47
12
31
65
28
6
32
36
11
62
1
31
43
38
31
31
34
60
24
30
45
53
61
50
23
46
13
46
01.01
01.01
01.01
01.01
06.00

Артикул

Название

Примечание

Количество

1

86980201

SHIELD

RH, CIH Decal Included and is NSS

1шт.

BPIN CBJ032001

1шт.

1

87571725

HOOD

RH, CIH Decal Included and is NSS

1шт.

PIN CBJ032001 and after

1шт.

2

86980202

SHIELD

LH, CIH Decal Included and is NSS

1шт.

BPIN CBJ032001

1шт.

2

87571723

HOOD

LH, CIH Decal Included and is NSS

1шт.

PIN CBJ032001 and after

1шт.

3

86980203

POINT

End

2шт.

4

86583742

BRACKET

2шт.

5

86583883

BRACKET

Bolted to Ref 27 of Fig 01.01

2шт.

6

86729264

TUBE,1581.10 mm L

LH

1шт.

7

86583885

PLATE

Non AHHC/FT

2шт.

7

87020038

PLATE

With AHHC/FT Sensor Chain Attachment

2шт.

8

86544357

CATCH

Catch

2шт.

9

86729278

BRACKET

Support

2шт.

10

86583889

SUPPORT

4шт.

11

86729267

TUBE,1581.10 mm L

RH

1шт.

12

711-10030

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

2шт.

13

647695

PIN,7.94mm OD

Snap

6шт.

14

86729277

TUBE,135, 379.1 mm L

Support

2шт.

15

86729268

TUBE,756.30, 341.80 mm L

2шт.

16

87015178

POINT

Casting

2шт.

17

86583900

PLATE

Flat

2шт.

18

86583906

SUPPORT

2шт.

19

86530602

PIN

2шт.

20

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

2шт.

21

100016

NUT,M10 x 1.5, Cl 8

14шт.

22

86583879

PLUG

4шт.

23

86555871

WEAR STRIP

Angle, End, RH

2шт.

24

374887

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

2шт.

25

86555870

WEAR STRIP

Angle, End, LH

2шт.

26

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

27

131522

SPACER

SPLIT .53ID .74OD .34L

4шт.

28

86583871

CHANNEL

2шт.

29

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

4шт.

30

122432

WASHER,17mm ID x 41mm OD x 6mm Thk

0.656" ID x 1.62" OD x 0.25" Thk

4шт.

31

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

40шт.

32

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

12шт.

33

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

10шт.

34

100037

LOCK NUT,M10 x 1.5, Cl 8

8шт.

35

412479

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

Cap, HH, CL 8.8, M10 x 1.5 x 40

4шт.

36

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

6шт.

37

9706690

NUT,M8 x 1.25, Cl 8

4шт.

38

86526475

FLAP

2шт.

39

37836

SPACER,1" - 8 x 8"

SPLIT .41ODX.62ODX.94

4шт.

40

84232899

PIN,14.29mm OD

Jack

2шт.

41

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

4шт.

42

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

10шт.

43

380422

BOLT,Hex, M20 x 2.5 x 190mm, Cl 8.8

2шт.

44

86536985

NUT,M20 x 2.5, Cl 10

2шт.

45

86559150

CARRIAGE BOLT,Sht Nk, M8 x 50mm, Cl 8.8

8шт.

46

86629542

NUT,M8 x 1.25, Cl 8.8

32шт.

47

86512420

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 20mm, Full Thd, Cl 8.8

12шт.

48

87020816

LOCK PIN,4.76mm OD x 31.75mm L

2шт.

49

86538688

PROP

2шт.

50

87024877

PLATE

Hood Transport

2шт.

51

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

52

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

53

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

44шт.

54

86551559

SPACER

4шт.

55

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

4шт.

56

86611329

SPRING

2шт.

57

87017987

KIT

Cast Point, Qty 1 Point & Fasteners, See Note This Figure

1шт.

58

NS

NOT SERVICED

Case IH Logo, RH, Part of moulding process

1шт.

59

NS

NOT SERVICED

Case IH Logo, LH, Part of moulding process

1шт.

60

NH291525

EDGE

PVC, Double Lip, 0.39" x 0.52" x 0.6Ft

1шт.

61

300383

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

2шт.

62

86547781

REFLECTOR,RED

Red, Retroreflective

1шт.

63

86547783

REFLECTOR,Tape, Red Orange

Red-Orange Flourescent

1шт.

64

86512421

CARRIAGE BOLT,Sq Nk, M8 x 60mm, Cl 8.8

2шт.

65

87613265

WASHER,0.53" ID x 1.25" OD x 0.13" Thk

17/32" x 1-1/8" x 0.134"

2шт.

66

86611547

BRACKET

1шт.

Выбрано товаров: 73
