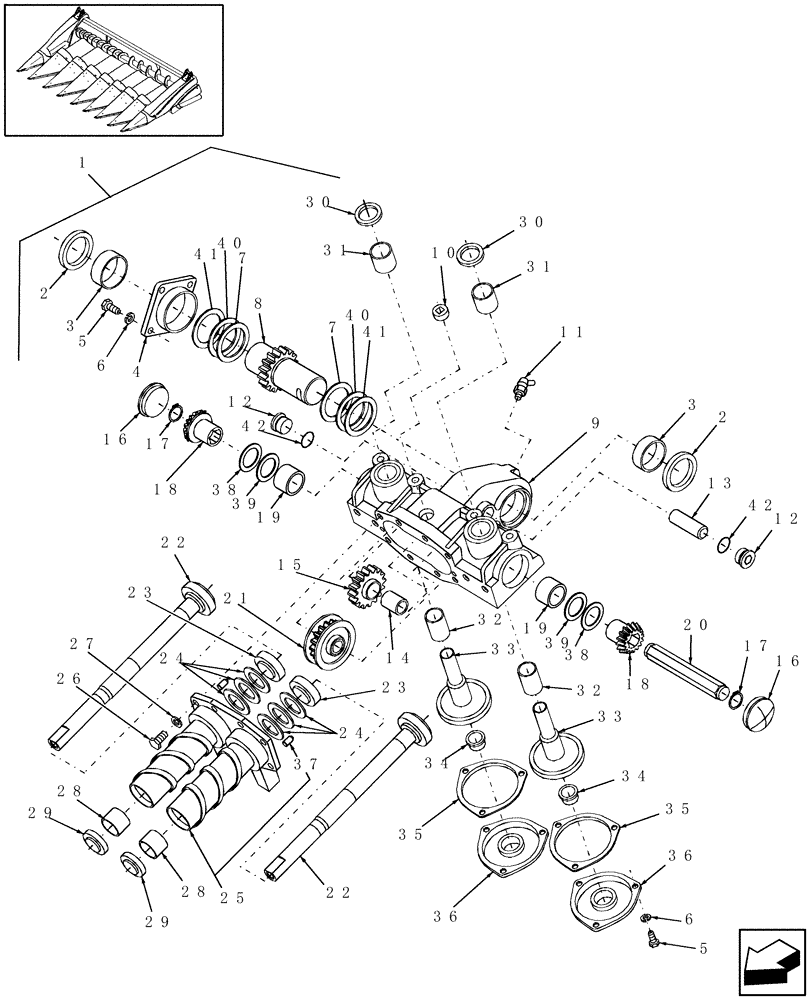

Запчасти Case IH 2208 (07.00[2]) - ROW UNIT GEARBOX BREAKDOWN, PIN HAJ034742 AND AFTER [INCLUDES ALL CBJS] (58) - ATTACHMENTS/HEADERS

1

87015496

GEARBOX

Assy, Row Unit

1шт.

1

87663021R

REMAN-GEARBOX

Remanufactured GEARBOX

1шт.

1

87663021C

CORE-GEARBOX

Return No, GEARBOX

1шт.

2

196011

OIL SEAL

2шт.

3

762759

NEEDLE BEARING

2шт.

4

86542388

BEARING ASSY

1шт.

5

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

10шт.

6

80681

LOCK WASHER,5/16"

10шт.

7

87012541

THRUST WASHER

2шт.

8

87012539

DRIVING GEAR

Spur

1шт.

9

86622790

HOUSING

Row Unit

1шт.

10

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

1шт.

11

86977989

LUBE NIPPLE,90 Degree, 1/8" - 27 NPT, Leakproof

1шт.

12

9841223

PLUG,1-1/16" - 12 ORB

2шт.

13

86522005

IDLE SHAFT

Gear

1шт.

14

63805

NEEDLE BEARING

1шт.

15

86519595

IDLER GEAR

Spur

1шт.

16

87108807

PLUG

Grease

2шт.

17

197297

SNAP RING,#98, Ext

2шт.

18

86622795

BEVEL GEAR

2шт.

19

86624334

NEEDLE BEARING,Needle, 38.1mm ID x 47.63mm OD x 31.75mm W

2шт.

20

86522050

SHAFT

Hex

1шт.

21

86540211

GEAR

Assy, Roll Drive

1шт.

22

86641997

SHAFT

Roll

2шт.

23

86523363

BEARING ASSY,31.76mm ID x 62mm OD x 24mm W

2шт.

24

87025487

SHIM,50mm ID x 62mm OD x 0.1mm Thk

2 /ARшт.

24

87025488

SHIM,50mm ID x 62mm OD x 0.3mm Thk

1 /ARшт.

24

87025489

SHIM,50mm ID x 62mm OD x 0.5mm Thk

2 /ARшт.

25

87107018

SPINDLE

Assy

1шт.

Ref 25 of the BSN assembly may be supplied until stock exhausted as long as shims 87025487 & 87025488 are also supplied.

1шт.

26

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

8шт.

27

80680

LOCK WASHER,3/8 0.381 CST ZND

8шт.

28

86523364

NEEDLE BEARING,Needle, 31.75mm ID x 41.27mm OD x 31.75mm W

2шт.

29

86529697

SEAL,29.46mm ID x 52.32mm OD x 16.2mm Thk

Oil

2шт.

30

634036

OIL SEAL

Oil

2шт.

31

9827792

DRIVE BUSHING,35.01mm ID x 44.5mm OD x 38.1mm L

2шт.

32

87012540

SPACER,25.4mm ID x 34.92mm OD x 56.1mm L

2шт.

33

86530072

BEVEL GEAR

2шт.

34

86521526

FLANGED BEARING

Bearing

2шт.

35

86550515

SHIM,115.8mm ID x 127mm OD x 0.18mm Thk

0.178mm

2 /ARшт.

35

86550517

SHIM,115.8mm ID x 126.2mm OD x 0.5mm Thk

0.508mm

4 /ARшт.

36

86531930

CAP COVER

2шт.

37

64780

DOWEL,1/4" x 1/2", HDN

Dowel, 1/4" x 1/2"

2шт.

38

66802

THRUST BEARING

Thrust

2шт.

39

142436

THRUST WASHER

2шт.

40

87012543

THRUST BEARING,57.15mm ID x 76.2mm OD x 1.98mm W

2шт.

41

87012542

THRUST WASHER,57.15mm ID x 76.2mm OD x 1.6mm Thk

2шт.

42

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.
