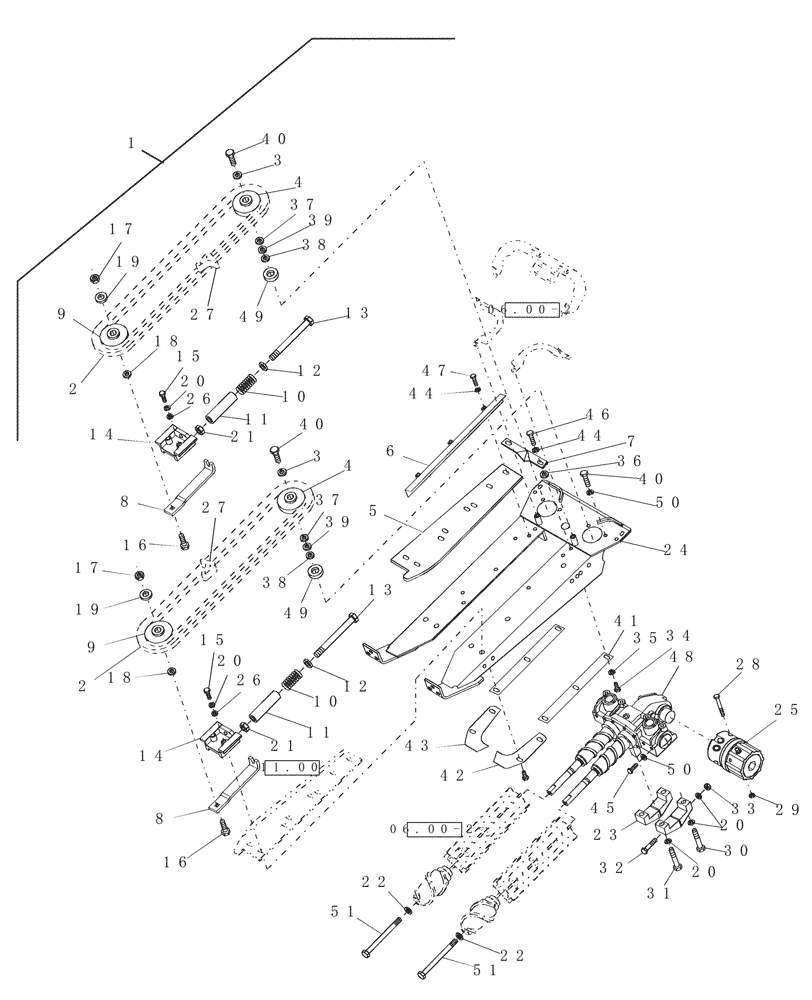

Запчасти Case IH 2208 (06.00[3]) - ROW UNIT, AVAILABLE AS AN ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

86614662

ASSEMBLY

See Fig 06.00[2] & 11.00; Rolls, Strippers & Plates Ordered Separately

1шт.

2

86978515

CHAIN (AG)

Chrome Pin

2шт.

2

86979313

CHAIN (AG)

Low Cost Black Pin

2шт.

2

87382807

CHAIN LINKS KIT

Kit, W/links 87398355 and 87382864

1шт.

3

576658

WASHER,13.49mm ID x 36.51mm OD x 3.43mm Thk

2шт.

4

86837081

SPROCKET

7 Teeth

2шт.

5

86611537

PLATE

RH

1шт.

5

LH, See Fig 11.00 For Hydraulic Plates & Fig 06.00[2] For Manual Plates

1шт.

6

86611426

GUIDE

LH & RH Manual

2шт.

7

87027837

WEAR PLATE

1шт.

8

87029139

BRACKET

Idler Weld Assembly

2шт.

9

87034967

SPROCKET

Idler

2шт.

10

86583948

SPRING

Compression

2шт.

11

86583945

TUBE,38.10 mm OD x 133.40 mm L

2шт.

12

130358

WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk

Hardened, 5/8"

2шт.

13

675499

BOLT,Hex, 5/8" - 11 x 10", Gr 5

Cap, G5, 5/8"-11 x 10", Adjusting

2шт.

14

86611369

BRACKET

Idler

2шт.

15

86508581

BOLT,Hex, M12 x 90mm, Cl 8.8

4шт.

16

280540

PLOW BOLT,#3, 5/8" - 11 x 2 3/4", Gr 5

2шт.

17

19670

NUT,5/8"-11, GB

2шт.

18

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

2шт.

19

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

2шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

10шт.

21

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

22

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

(33/64" ID x 1" OD x .135" Thk)

2шт.

23

86583944

BRACKET

Assembly

4шт.

24

86625832

FRAME

Row Unit, Gray

1шт.

Used W/ Hydraulic Strippers

1шт.

24

87593349

FRAME ASSY

Row Unit, Black

1шт.

Used W/O Hydraulic Strippers

1шт.

25

Clutch, Radial Pin, See Fig 08.00[2]

1шт.

26

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

27

627481

LINK CHAIN

CA555, C6E

1шт.

28

426-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

2шт.

29

88902

NUT,3/8"-16

2шт.

30

86000020

BOLT,Hex, 1/2" - 13 x 6", Gr 5

2шт.

31

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

32

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

33

280431

NUT,1/2"-13, G5

2шт.

34

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

10шт.

35

394630

WASHER,13mm ID x 28mm OD x 4mm Thk

10шт.

36

29046

WASHER,11.1mm ID x 25.4mm OD x 0.457mm Thk

2ARшт.

37

245532

WASHER,25.53mm ID x 31.24mm OD x 0.38mm Thk

1-1/4"OD, 1"ID, 0.015"Thick

2ARшт.

38

80245530

WASHER,25.53mm ID x 31.24mm OD x 0.91mm Thk

2 ARшт.

39

245531

WASHER,25.53mm ID x 31.24mm OD x 1.65mm Thk

2 ARшт.

40

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

6шт.

41

87034132

KNIFE ASSY

8.8" Long [Eventual supersession to 16.4" long]

2шт.

BPIN CBJ032001

1шт.

41

86611418

KNIFE

16.4" Long

2шт.

PIN CBJ032001 and after

1шт.

42

86611414

KNIFE

Assy, LH Front

1шт.

43

86611411

KNIFE,211.5mm L x 139mm W x 6.3mm Thk

Assy, RH Front

1шт.

44

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

45

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

46

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

47

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

3шт.

48

Gear Box Assy, Row Unit, See Fig 07.00[2]

1шт.

49

86611408

SHIELD

2шт.

50

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

8шт.

51

426-8136

BOLT,Hex, 1/2" - 13 x 8-1/2", Gr 8

2шт.
