Запчасти Case IH 2208 (04.01[3]) - AUGER DRIVE, SINGLE, DRIVING SIDE. PIN CBJ030601 AND AFTER (58) - ATTACHMENTS/HEADERS

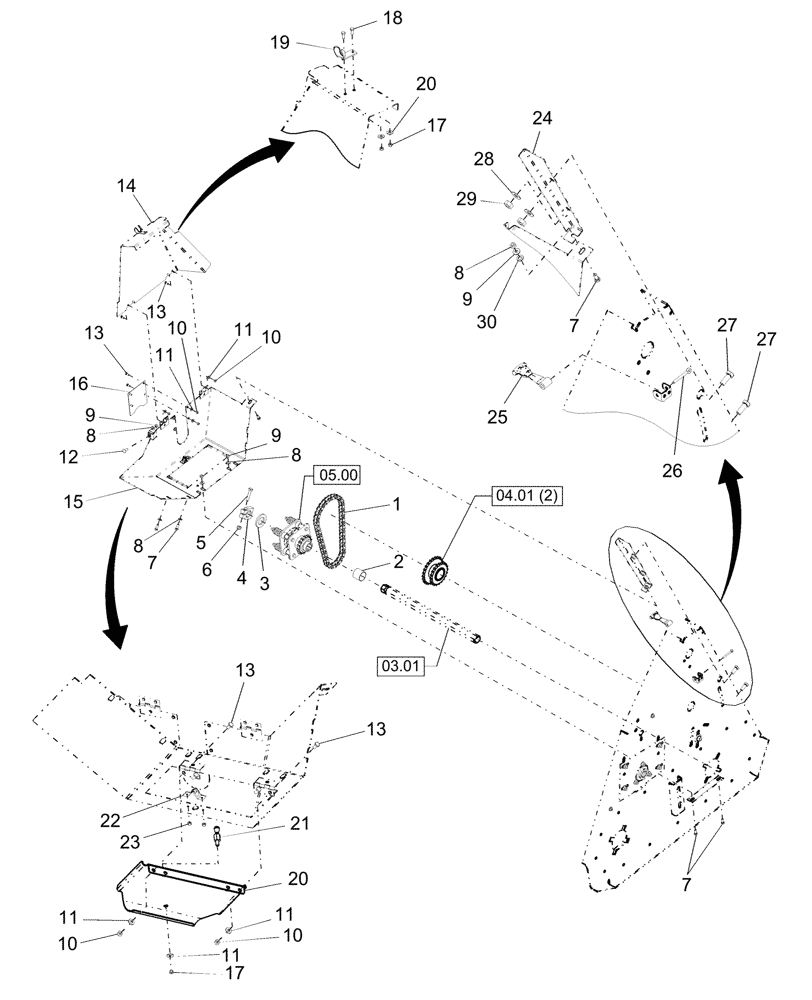

Схема запчастей Case IH 2208 - (04.01[3]) - AUGER DRIVE, SINGLE, DRIVING SIDE. PIN CBJ030601 AND AFTER (58) - ATTACHMENTS/HEADERS
04.01 (2)
12
13
23
25
29
3
4
9
17
5
11
11
27
20
10
6
14
11
17
26
19
8
13
11
13
10
7
10
30
8
10
22
8
11
7
21
16
20
24
28
2
1
9
15
8
13
9
7
18
27
03.01
05.00

Артикул

Название

Примечание

Количество

1

87284076

CHAIN

#60, 3/4"P, 48 Links Total [1 Connector W/Spring Clips], 36" Length

1шт.

2

87501867

SPACER

Hex Shaft

1шт.

3

86555132

WASHER,36.6mm ID x 63.5mm OD x 6.35mm Thk

Rubber, 37.35mm ID x 62.50mm OD

1шт.

4

86611827

CLAMP,32.08mm - 35.16mm

1шт.

5

930550R1

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

1шт.

6

100037

LOCK NUT,M10 x 1.5, Cl 8

1шт.

7

615-8020

BOLT,Hex, M8 x 20, 8.8, Full Thd

5шт.

8

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

9

9706690

NUT,M8 x 1.25, Cl 8

4шт.

10

9706755

NUT,M6, Cl 8

12шт.

11

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

14шт.

12

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

1шт.

13

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

12шт.

14

87502663

SHIELD

Top, W/Decal

1шт.

15

87502550

SHIELD

Bottom

1шт.

16

87501391

PLATE ASSY.

Cover

1шт.

17

87016571

NUT,M5, Cl 5

3шт.

18

86632597

BOLT,M5 x 0.8 x 15.65mm, Cl 8.8

2шт.

19

86975624

LATCH HOOK

1шт.

20

87500545

DOOR ASSY.

Clean Out, W/Decal

1шт.

21

87422429

STUD

Ball

1шт.

22

86998688

LATCH

Spring Clip

1шт.

23

87490325

RIVET,Pop, 1/8" x 1/4"

2шт.

24

87284816

BRACKET

1шт.

25

86975220

LATCH HOOK

Rubber

1шт.

26

88182

COTTER PIN,1/4" OD x 2" L

1шт.

27

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

28

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

29

9706685

NUT,M12 x 1.75, Cl 8

2шт.

30

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

1шт.

Выбрано товаров: 30
