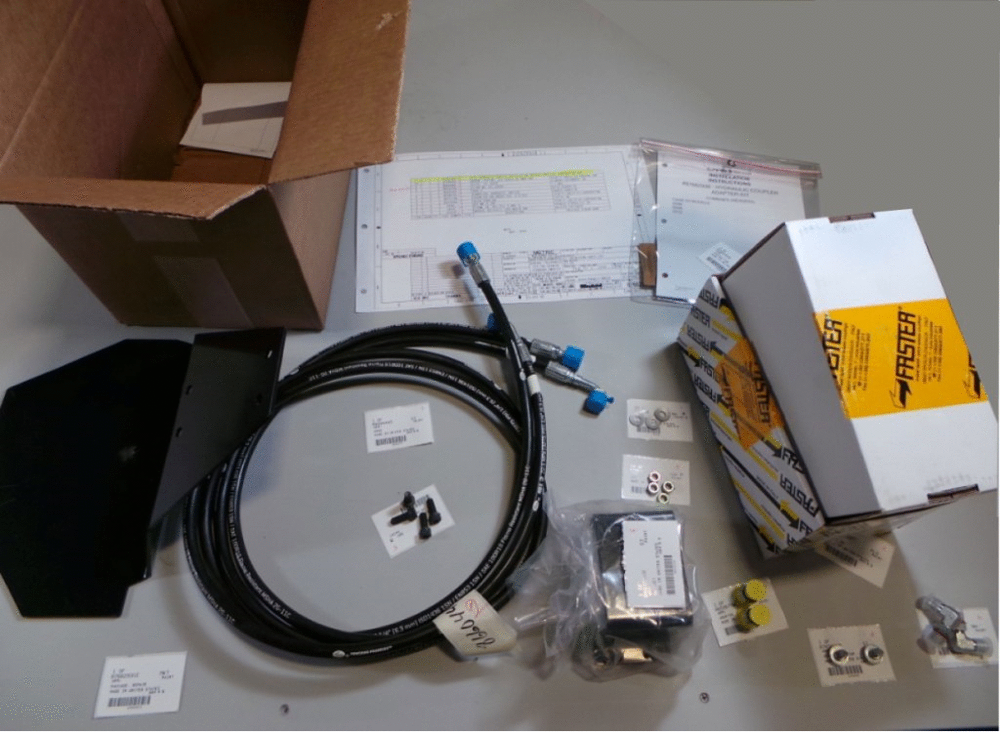

Запчасти Case IH 2208 (18.15.12) - KIT REPAIR HYD. COUPLER (88) - ACCESSORIES

1

87662931E

PACKAGE, REPAIR

Incl 2 - 12

1шт.

2

87666900

INSTRUCTION

1шт.

3

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

4

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

5

43362

NUT,M8 x 1.25, Cl 10

4шт.

6

84435009

COUPLING

1шт.

7

86512138

HEX SOC SCREW,M8 x 20mm, Cl 12.9

4шт.

8

86596730

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

2шт.

9

86604445

HOSE,6.35mm ID x 2438.4mm L, SAE 100R1

2шт.

10

86632268

BRACKET

1шт.

11

86632270

BRACKET

1шт.

12

87030040

SELF-TAP SCREW,Hex Wash Hd, 3/8" x 3/4"

2шт.
