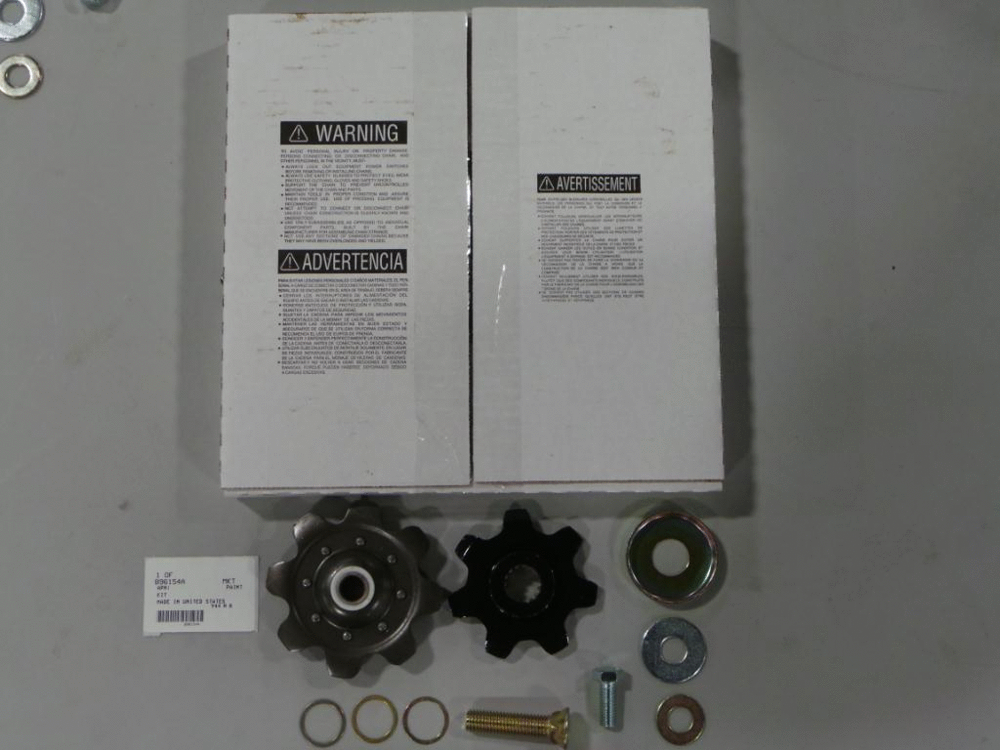

Запчасти Case IH 2208 (18.15.04[01]) - KIT CHAIN REPAIR (88) - ACCESSORIES

1

B96154A

KIT

Incl 2 - 14

1шт.

2

47365065

SPROCKET

2шт.

3

280540

PLOW BOLT,#3, 5/8" - 11 x 2 3/4", Gr 5

2шт.

4

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

2шт.

5

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

2шт.

6

85700693

NUT,5/8" - 11, Gr C

2шт.

7

86611399

WASHER,26.19mm ID x 31.24mm OD x 0.38mm Thk

2шт.

8

86611401

WASHER,25.53mm ID x 31.24mm OD x 1.65mm Thk

2шт.

9

86611403

WASHER,26.19mm ID x 31.24mm OD x 0.91mm Thk

2шт.

10

86611408

SHIELD

2шт.

11

86611429

WASHER,13.49mm ID x 36.51mm OD x 3.43mm Thk

2шт.

12

86837081

SPROCKET

2шт.

13

86979313

CHAIN (AG)

2шт.

14

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2шт.
