Запчасти Case IH 2208 (18.04) - KIT, CONVERSION FOR AF COMBINES (88) - ACCESSORIES

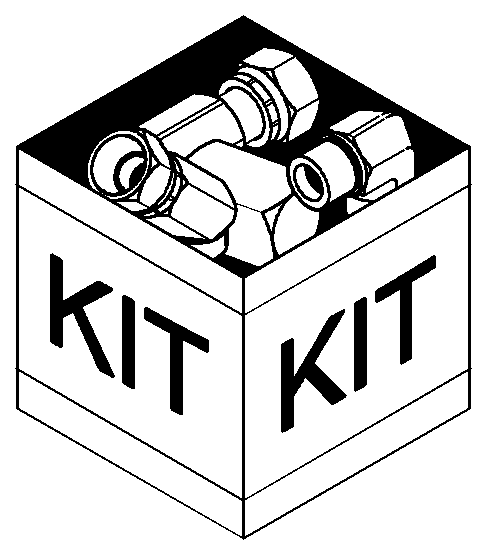

Схема запчастей Case IH 2208 - (18.04) - KIT, CONVERSION FOR AF COMBINES (88) - ACCESSORIES

Артикул

Название

Примечание

Количество

1

84135007

KIT

6 Row, Conversion For AF Midrange Combine, Ref 2 To 40

1шт.

1

84138594

KIT

8 Row, Conversion For AF Midrange Combine, Ref 2 To 40

1шт.

1

84138597

KIT

12 Row, Conversion For AF Midrange Combine, Ref 2 To 40

1шт.

2

84134176

KIT

6 Row, Yoke & Cross Bearing, Qty 1, See 18.05

1шт.

2

84134177

KIT

8 & 12 Row, Yoke & Cross Bearing, Qty 2, See 18.05

1шт.

3

87024803

DRIVING SPROCKET

25T, 6 Row

1шт.

3

87024802

DRIVING SPROCKET

30T, 8 Row

2шт.

3

87024803

DRIVING SPROCKET

25T, 12 Row

2шт.

4

87000840

CHAIN

6 Row, RC80, 1"P, 77" Total, 1 Conn, & 1 Offset Link

1шт.

4

NNA87000841

CHAIN,98 Links x 19.05mm = 1866.9mm

8 Row, RC60, 3/4"P, 73.5" Total, 1 Conn. Link

2шт.

4

87000840

CHAIN

12 Row, RC80, 1"P, 77" Total, 1 Conn, & 1 Offset Link

2шт.

5

87033816

CLIP

Latch, Secondary, See 18.06

1шт.

6

86622548

SPACER,13.55mm ID x 19.01mm OD x 10.79mm L

See 18.06

1шт.

7

86553411

SPACER,13.49mm ID x 18.97mm OD x 23.88mm L

Split, See 18.06

1шт.

8

9706693

BOLT,M12 x 60mm, Cl 8.8

1шт.

9

100038

NUT,M12 x 1.75, Cl 8

1шт.

10

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

11

87026147

SPRING

See 18.06

1шт.

12

86900194

BOLT,Hex, M12 x 115mm, Cl 10.9

See 18.06

2шт.

13

86837468

SPACER,13.5mm ID x 19mm OD x 68.3mm L

See 18.06

2шт.

14

9706685

NUT,M12 x 1.75, Cl 8

2шт.

15

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

16

143479

WASHER,15.08" ID x 31.75" OD x 3.5" Thk

4шт.

17

84435009

COUPLING

Multi, Quick

1шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

19

9706690

NUT,M8 x 1.25, Cl 8

4шт.

20

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

21

86512138

HEX SOC SCREW,M8 x 20mm, Cl 12.9

4шт.

22

86596730

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

9/16"-18 O-Ring [M] x 11/16"-16 ORFS [M]

2шт.

23

86604445

HOSE,6.35mm ID x 2438.4mm L, SAE 100R1

1/4" ID, 11/16"-16 [F] Str O-Ring x 9/16"-18 [F] 90° Flare

2шт.

24

86632268

BRACKET

Clamp, Cylinder Cover

1шт.

25

86632270

BRACKET

Cylinder

1шт.

26

87030040

SELF-TAP SCREW,Hex Wash Hd, 3/8" x 3/4"

2шт.

27

86566989

CABLE TIE,208mm L

CABLE STRAP

6шт.

28

87746711

WIRE HARNESS

See 18.03

1шт.

29

86606228

COVER

Harness Connector

1шт.

30

120098

BOLT,Hex, M5 x 20, 8.8, Full Thd

4шт.

31

322356

BELLEVILLE WASHER,M5 Bolt Size x 12mm OD x 1.85mm Thk

4шт.

32

84037188

O-RING,3mm Thk x 34.2mm ID, 70 Duro

(40mm OD)

1шт.

33

86508813

NUT,M5, Cl 8

4шт.

34

NSS

NOT SOLD SEPARAT

Installation Instructions

1шт.

35

87016747

BRACKET

PTO Storage, 6 Row

1шт.

35

87016747

BRACKET

PTO Storage, 8 & 12 Row

2шт.

36

9780090

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 125mm, Cl 8.8

6 Row

1шт.

36

9780090

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 125mm, Cl 8.8

8 & 12 Row

2шт.

37

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6 Row

5шт.

37

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8 & 12 Row

6шт.

38

100037

LOCK NUT,M10 x 1.5, Cl 8

6 Row

1шт.

38

100037

LOCK NUT,M10 x 1.5, Cl 8

8 & 12 Row

2шт.

39

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

4шт.

40

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.
