Запчасти Case IH 2208 (18.01) - KIT, CONVERSION FOR BRAZILIAN AF COMBINES, ELECTRICAL (88) - ACCESSORIES

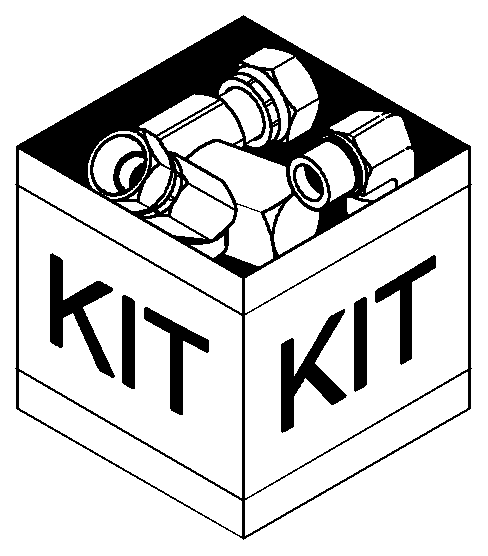

Схема запчастей Case IH 2208 - (18.01) - KIT, CONVERSION FOR BRAZILIAN AF COMBINES, ELECTRICAL (88) - ACCESSORIES

Артикул

Название

Примечание

Количество

1

87662929

PACKAGE

Includes Ref 3 to 1, See figure Note

1шт.

2

120098

BOLT,Hex, M5 x 20, 8.8, Full Thd

4шт.

3

322356

BELLEVILLE WASHER,M5 Bolt Size x 12mm OD x 1.85mm Thk

4шт.

4

84037188

O-RING,3mm Thk x 34.2mm ID, 70 Duro

1шт.

5

86508813

NUT,M5, Cl 8

4шт.

6

86606228

COVER

1шт.

7

87302553

WIRE HARNESS

32.7'[830mm] Long, Lights and AHHC

1шт.

8

86566989

CABLE TIE,208mm L

CABLE STRAP Black

6шт.

9

87010656

CLAMP,17.5mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

10

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

11

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

1шт.

Выбрано товаров: 11
