Запчасти Case IH 2208 (18.00) - KIT, 8 & 12 ROW, CONVERSION FOR AFX COMBINES (88) - ACCESSORIES

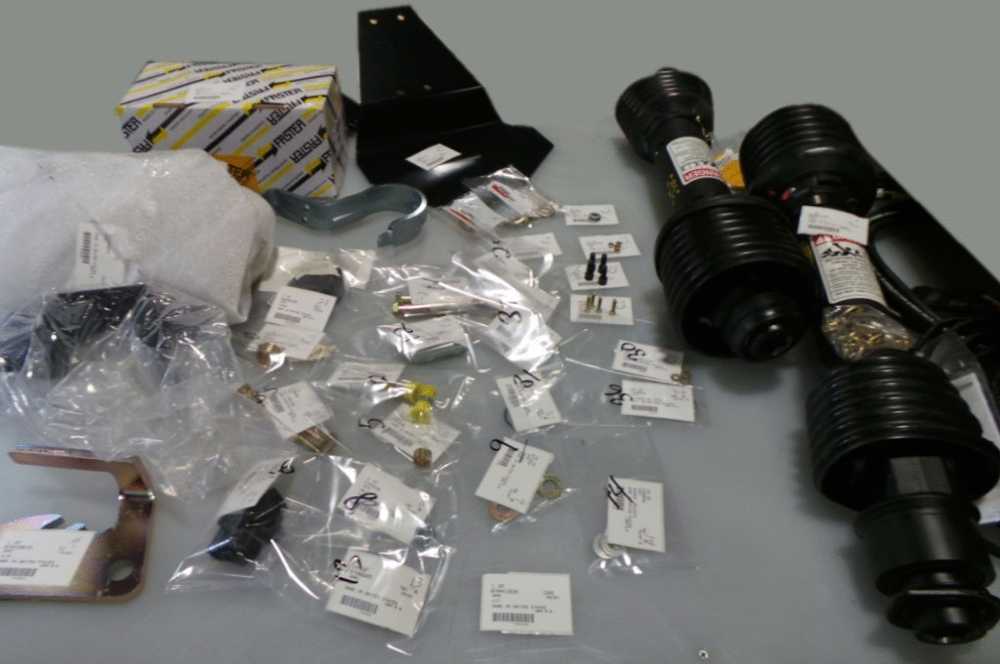

Схема запчастей Case IH 2208 - (18.00) - KIT, 8 & 12 ROW, CONVERSION FOR AFX COMBINES (88) - ACCESSORIES

Артикул

Название

Примечание

Количество

1

87041928

KIT

8 Row, Conversion For AFX Combine, Ref's 2 to 38, See Figure Note

1шт.

1

87041425

KIT

12 Row, Conversion For AFX Combine , Ref's 2 to 38, See Figure Note

1шт.

2

86980795

PTO SHAFT

2шт.

3

87024802

DRIVING SPROCKET

30T, 8 Row

2шт.

3

87024803

DRIVING SPROCKET

25T, 12 Row

2шт.

4

NNA87000841

CHAIN,98 Links x 19.05mm = 1866.9mm

8 Row, RC60, 3/4"P, 73.5" Total, 1 Conn. Link

2шт.

4

87000840

CHAIN

12 Row, RC80, 1"P, 77" Total, 1 Conn. & 1 Offset Link

2шт.

5

87033816

CLIP

Latch, Secondary

1шт.

6

86622548

SPACER,13.55mm ID x 19.01mm OD x 10.79mm L

1шт.

7

86553411

SPACER,13.49mm ID x 18.97mm OD x 23.88mm L

Split

1шт.

8

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

1шт.

9

832-46412

NUT,M12 x 1.75, Cl 8

1шт.

10

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

11

87026147

SPRING

1шт.

12

86900194

BOLT,Hex, M12 x 115mm, Cl 10.9

2шт.

13

86837468

SPACER,13.5mm ID x 19mm OD x 68.3mm L

2шт.

14

9706685

NUT,M12 x 1.75, Cl 8

2шт.

15

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

16

143479

WASHER,15.08" ID x 31.75" OD x 3.5" Thk

4шт.

17

84435009

COUPLING

Multi, Quick

1шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

19

9706690

NUT,M8 x 1.25, Cl 8

4шт.

20

6801-06

FITTING

90° Elbow, 37 Degree JIC x O-Ring

2шт.

21

86512138

HEX SOC SCREW,M8 x 20mm, Cl 12.9

4шт.

22

86596730

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

9/16"-18 O-Ring [M] x 11/16"-16 ORFS [M]

2шт.

23

86604445

HOSE,6.35mm ID x 2438.4mm L, SAE 100R1

1/4" ID, 11/16"-16 [F] Str O-Ring x 9/16"-18 [F] 90° Flare

2шт.

24

86632268

BRACKET

Clamp, Cylinder Cover

1шт.

25

86632270

BRACKET

Cylinder

1шт.

26

87030040

SELF-TAP SCREW,Hex Wash Hd, 3/8" x 3/4"

2шт.

27

86616339

SENSOR,CCW

1 KOHM Potentiometer

2шт.

28

86978862

WIRE HARNESS

W/Recognition Sensor

1шт.

29

86606228

COVER

Harness Connector

1шт.

30

814-5020

BOLT,Hex, M5 x 0.8 x 20mm, Cl 8.8, Full Thd

4шт.

31

322356

BELLEVILLE WASHER,M5 Bolt Size x 12mm OD x 1.85mm Thk

4шт.

32

84037188

O-RING,3mm Thk x 34.2mm ID, 70 Duro

(40mm OD)

1шт.

33

905819R1

NUT

M5 x 0.8

4шт.

34

87016747

BRACKET

PTO Storage, 1"

2шт.

35

9780090

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 125mm, Cl 8.8

2шт.

36

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

37

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

38

87041937

DECAL

IMPORTANT- PTO connection to 2 speed gearbox lower shaft

2шт.

Выбрано товаров: 41
