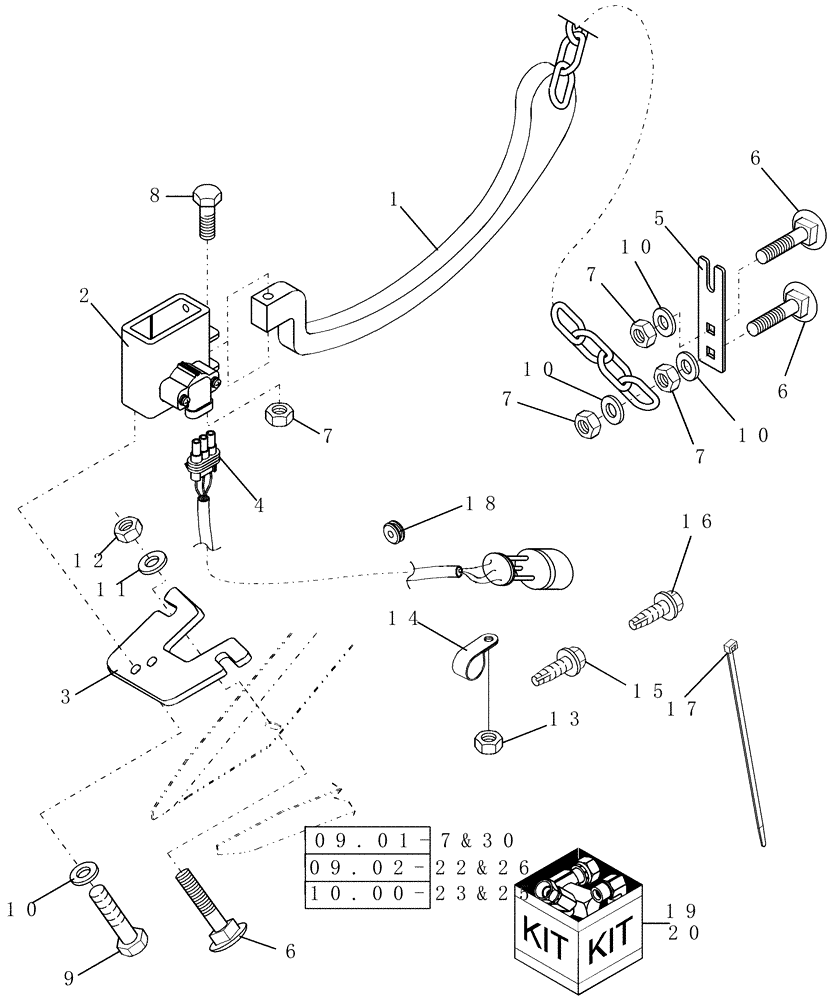

Запчасти Case IH 2208 (16.03) - AUTO HEADER HEIGHT CONTROL WITH FIELD TRACKER (88) - ACCESSORIES

1

87389599

ROD

Sensor

3шт.

2

86614410

SENSOR

AHHC, See Fig. 16.04

1шт.

2

86614411

SENSOR

Field Tracker

2шт.

3

86611597

BRACKET

Sensor, 8 Row-22", 12 Row-20" & 22", Middle Divider pT.

1шт.

3

86611596

BRACKET

Sensor, 6 & 8 Row-30", 36" & 38", 12 Row-30"

1шт.

3

87366601

BRACKET

Sensor, 70 CM Only

1шт.

4

86900652

HARNESS

AHHC, Inner Divider, 2100/2300 Combines

1шт.

4

86622140

HARNESS

AHHC, Inner Divider, 1600 Combines

1шт.

4

86980637

WIRE HARNESS

FT, LH

1шт.

4

86980636

WIRE HARNESS

FT, RH

1шт.

5

86729304

CLIP

Chain, Storage

1шт.

6

811-8030

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 30mm, Cl 8.8

14шт.

7

86629542

NUT,M8 x 1.25, Cl 8.8

6шт.

8

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

3шт.

9

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

12шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

15шт.

11

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

6шт.

12

86629542

NUT,M8 x 1.25, Cl 8.8

6шт.

13

9706690

NUT,M8 x 1.25, Cl 8

20шт.

14

858956

CLAMP,11.1mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

14

853765

CLAMP,7.9mm, Coat, 10.3mm Bolt Hole, P Type

32шт.

14

9706732

CLAMP,19mm ID, 8.7mm Bolt Hole, P Type

4шт.

15

637964

SELF-TAP SCREW,Hex, 3/8" - 16 x 3/4"

HS, 3/8"-16 x 3/4"

2шт.

16

86545825

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 5/8"

4шт.

17

86566989

CABLE TIE,208mm L

CABLE STRAP

3шт.

18

574820

GROMMET

2шт.

19

87395255

KIT

Sensor, Field Tracker®, 1600 Combines, Includes all Ref's except Ref 3

1шт.

20

87395254

KIT

Sensor Field Tracker®, 2100/2300, Includes all Ref's except Ref 3

1шт.
