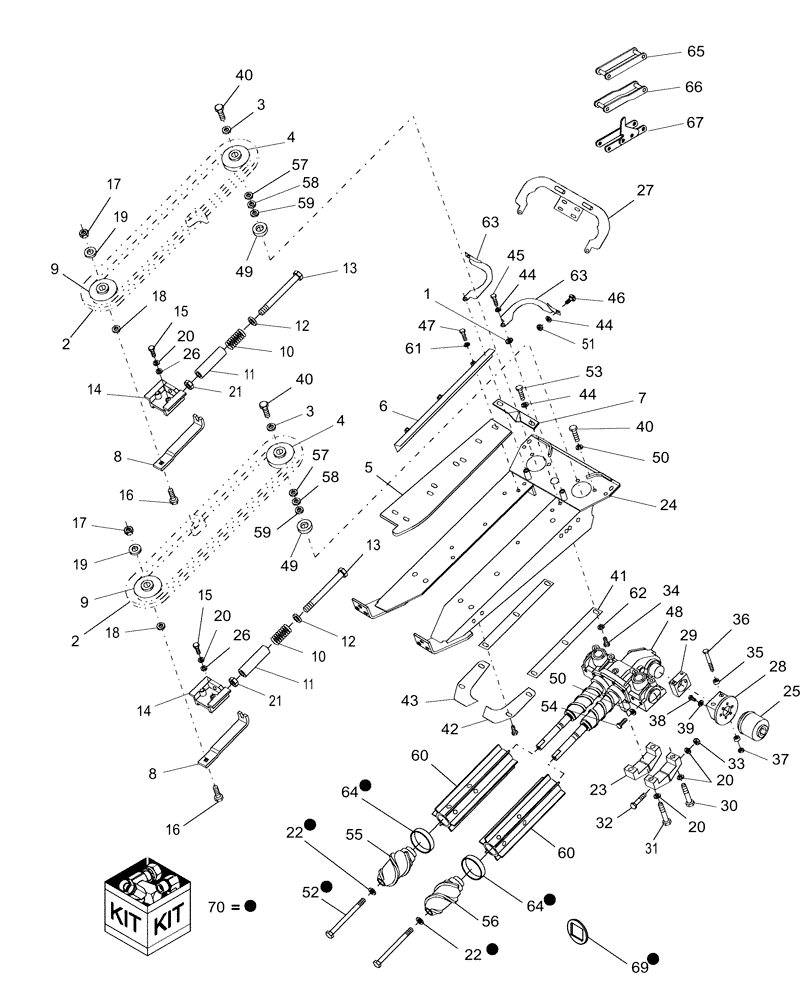

Запчасти Case IH 2206 (06.00[1]) - ROW UNIT, PRIOR TO PIN HAJ0018273 (58) - ATTACHMENTS/HEADERS

1

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(13/32" ID x 7/8" OD, 0.105" Thk)

1шт.

2

86523386

GATHERING CHAIN,1987.2mm L

Gathering, Chrome Pin, 2.63" Wide Attach Links

2шт.

BPIN HAJ0003469

1шт.

2

86978515

CHAIN (AG)

Gathering, Chrome Pin, 2.35" Wide Attach Links

2шт.

PIN HAJ0003469 and after [Includes all CBJ's]

1шт.

2

86979313

CHAIN (AG)

Gathering, Lower Cost Black Pin, 2.35" Wide Attach Links

2шт.

PIN HAJ0003469 and after [Includes all CBJ's]

1шт.

3

576658

WASHER,13.49mm ID x 36.51mm OD x 3.43mm Thk

2шт.

4

86611371

DRIVING SPROCKET

8 Teeth, Ref 2 [2.63" Links]

2шт.

PIN HAJ0003468 and before [Includes all CBJ's]

1шт.

4

86837081

SPROCKET

7 Teeth, Ref 2[2.35" links]

2шт.

PIN HAJ0003469 and after [Includes all CBJ's]

1шт.

5

86611537

PLATE

Deck, RH

1шт.

5

86611536

PLATE

Deck, Manual Adjust, LH

1шт.

See Fig 11.00 For Hydraulic Plates

1шт.

6

86611426

GUIDE

Chain

1шт.

7

86583946

PLATE

Wear

1шт.

8

86530307

BRACKET

Idler Weld Assembly

2шт.

9

86583947

DRIVING SPROCKET

Idler

2шт.

10

86583948

SPRING

2шт.

11

86583945

TUBE,38.10 mm OD x 133.40 mm L

2шт.

12

130358

WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk

2шт.

13

675499

BOLT,Hex, 5/8" - 11 x 10", Gr 5

HH, 5/8"-11 x 10", Threaded 3-1/2", Adjusting

2шт.

14

86611369

BRACKET

Mount Assy, Idler

2шт.

15

86508581

BOLT,Hex, M12 x 90mm, Cl 8.8

4шт.

16

280540

PLOW BOLT,#3, 5/8" - 11 x 2 3/4", Gr 5

2шт.

17

19670

NUT,5/8"-11, GB

2шт.

18

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

2шт.

19

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

2шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

10шт.

21

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

22

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

(33/64" ID x 1" OD x .135" Thk)

2шт.

23

86583944

BRACKET

Assy

4шт.

24

86625832

FRAME

Row Unit, Gray

1шт.

25

Clutch Assy, Radial Pin, See Fig 08.00

1шт.

BPIN HAJ0003516

1шт.

25

Clutch Assy, Radial Pin, See Fig 08.00[1]

1шт.

PIN HAJ0003516 and after [Includes all CBJ]

1шт.

26

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

27

86556547

PLATE

Stripper, Inside Outer Row Units, 8 Row-22"

2шт.

27

86543447

ANGLE

Stripper, Inside Inner Row Units, 8 Row-22"

5шт.

27

86543455

PLATE

Stripper, Inside All Row Units, 12 Row-20"

11шт.

27

86543447

ANGLE

Stripper, Inside All Row Units, 12 Row-22"

11шт.

28

86611420

HUB

1шт.

29

86583943

COUPLING

1шт.

30

86000020

BOLT,Hex, 1/2" - 13 x 6", Gr 5

2шт.

31

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

32

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

33

280431

NUT,1/2"-13, G5

2шт.

34

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

10шт.

35

103060

BUSHING,9.85mm ID x 15.95mm OD x 7.1mm Thk

Hub, Roller

4шт.

36

86578526

BOLT,Hex, 3/8" - 16 x 4 1/4", Gr 8

2шт.

37

88902

NUT,3/8"-16

2шт.

38

426-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 8

6шт.

39

80681

LOCK WASHER,5/16"

6шт.

40

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

6шт.

41

87034132

KNIFE ASSY

8.8" Long [Eventual supersession to a 16.4" Long Knife]

2шт.

42

86611414

KNIFE

Assy, LH Front

1шт.

43

86611411

KNIFE,211.5mm L x 139mm W x 6.3mm Thk

Assy, RH Front

1шт.

44

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

45

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

46

711-10030

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

1шт.

47

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

3шт.

48

Row Unit, See Fig 07.00

1шт.

49

86611408

SHIELD

2шт.

50

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

8шт.

51

100016

NUT,M10 x 1.5, Cl 8

8 Row-30", 12 Row-20"

1шт.

52

280984

BOLT,Hex, 1/2" - 13 x 8", Gr 8

2шт.

BPIN HAJ0001270

1шт.

52

426-8136

BOLT,Hex, 1/2" - 13 x 8-1/2", Gr 8

Length increased to allow greater adjustment

2шт.

PIN HAJ0001270and after [Includes all CBJ]

1шт.

53

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

26шт.

54

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

55

86611527

ROLLER

Stalk, RH Location, LH Spiral Thread

1шт.

55

86618147

POINT

Stalk Roll, RH Location. LH Spiral Thread, Option

1шт.

56

86611529

ROLLER

Stalk, LH Location, RH Spiral Thread

1шт.

56

86618146

POINT

Stalk Roll, LH Location. RH Spiral Thread, Option

1шт.

57

245532

WASHER,25.53mm ID x 31.24mm OD x 0.38mm Thk

2 ARшт.

58

245531

WASHER,25.53mm ID x 31.24mm OD x 1.65mm Thk

2 ARшт.

59

80245530

WASHER,25.53mm ID x 31.24mm OD x 0.91mm Thk

2 ARшт.

60

86611788

ROLLER,114.3mm OD x 403.2mm L

Feed, Straight Flute Stalk

1шт.

60

Feed, Knife Stalk, LH, (1) per Row, Optional, See Fig 06.00A

1шт.

60

Feed, Knife Stalk, RH, (1) per Row, Optional, See Fig 06.00A

1шт.

61

80680

LOCK WASHER,3/8 0.381 CST ZND

3шт.

62

394630

WASHER,13mm ID x 28mm OD x 4mm Thk

10шт.

63

86530235

ANGLE

Stripper, 12 Row-30"

24шт.

63

86530235

ANGLE

Stripper, 8 Row 30", 36" & 38"

16шт.

63

86530235

ANGLE

Stripper, 6 Row

12шт.

63

86530235

ANGLE

Stripper, 8 Row-22", 12 Row-20" & 22"

2шт.

64

87013281

BUSHING,66.4mm ID x 71.5mm OD x 15mm L

Spiral, Knife Roll Assy Only

2шт.

65

86595258

LINK CHAIN

CA555, 1.630 Pitch

1шт.

66

86595270

LINK CHAIN

CA555, 1.630 Pitch

1шт.

67

627481

LINK CHAIN

CA555

1шт.

68

Not Used

1шт.

69

87013282

SHIM

Stalk Roll, Knife

1шт.

69

87019828

SHIM

Stalk Roll, Straight Flute

1шт.

70

87013278

PACKAGE

Stalk Row Improvement, 1 Row, Qty 2

1шт.

Kit for use when no space exists between spiral [Ref 55 & 56] and knife roll [Ref 60].

1шт.

70

87013279

PACKAGE

Stalk Row Improvement, 6 Row, Qty 12

1шт.

Kit for use when no space exists between spiral [Ref 55 & 56] and knife roll [Ref 60].

1шт.

70

87013280

PACKAGE

Stalk Row Improvement, 8 Row, Qty 16

1шт.

Kit for use when no space exists between spiral [Ref 55 & 56] and knife roll [Ref 60].

1шт.
