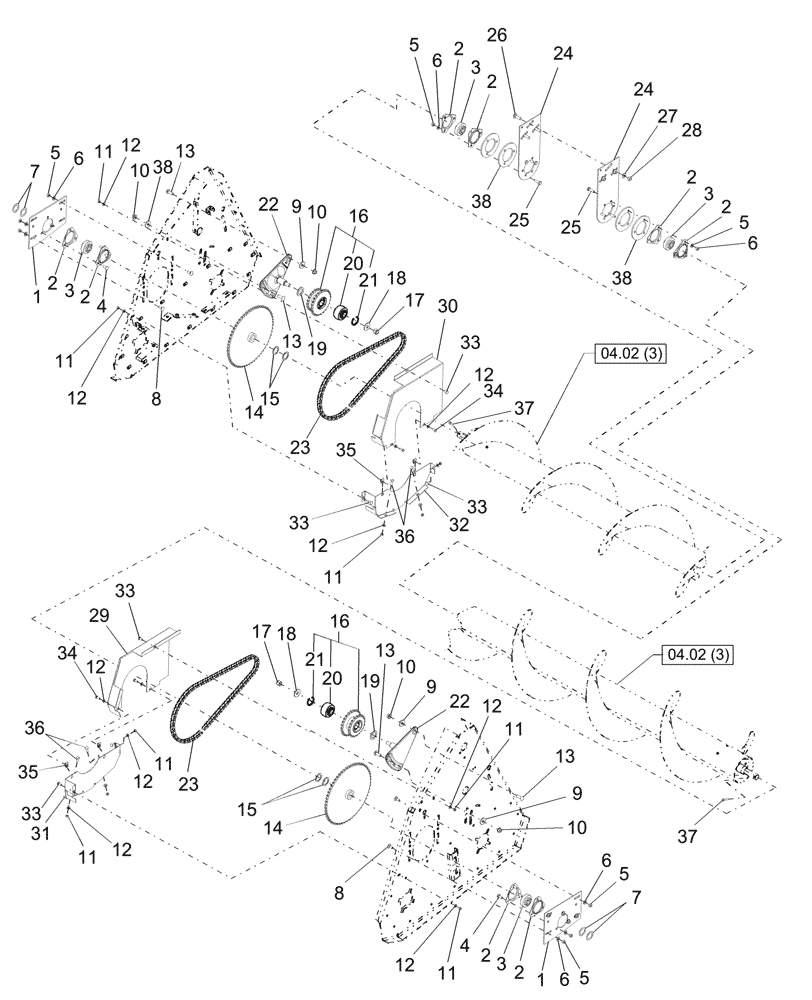

Запчасти Case IH 2206 (04.02[2]) - AUGER DRIVE, DOUBLE, DRIVEN SIDE, PIN CBJ030601 AND AFTER (58) - ATTACHMENTS/HEADERS

1

86613337

PLATE

2шт.

2

86620026

FLANGED BEARING

8шт.

3

121602

BALL BEARING,28.6mm Hex x 72mm OD x 37.7mm W

4шт.

4

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

6шт.

5

100016

NUT,M10 x 1.5, Cl 8

20шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

20шт.

7

86611850

WASHER

1-3/8" ID, 2" OD, 0.020" Thk

4ARшт.

8

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

8шт.

9

195-81030

WASHER

17/32" ID, 1-1/2" OD, 3/16" Thk, Hardened

6шт.

10

86512497

FLANGE NUT,M12 x 1.75, Cl 10

6шт.

11

9706690

NUT,M8 x 1.25, Cl 8

10шт.

12

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

14шт.

13

87035385

CARRIAGE BOLT,Sht Sq Nk, M12 x 35mm, Cl 8.8, Full Thd

6шт.

14

87280073

SPROCKET

58T

2шт.

15

136065

WASHER

1-3/8" ID, 1-7/8" OD, 5/64" Thk

4шт.

16

87283922

SPROCKET ASSY.

24T x 20T

2шт.

17

412066

NUT,M16 x 2.0, Cl 8

2шт.

18

87317689

WASHER,18mm ID x 45mm OD x 4mm Thk

18mm ID, 45mm OD, 4mm, HTS

2шт.

19

87502359

WASHER

33mm ID, 60mm OD, 3.4mm Thk

2шт.

20

87283953

BALL BEARING,30.02mm ID x 62mm OD x 50mm W

Double Row, Angular Contact

2шт.

21

370012

RING,M62, Internal

2шт.

22

87284030

IDLER

Pivot

2шт.

23

87284075

CHAIN,#60, 84 Links x 19.05mm = 1600.2mm

#60, 84 Links, 63" Length, 1 Connector W/Spring Clips

2шт.

24

86614562

BRACKET

2шт.

25

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

6шт.

26

328754

CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8

3шт.

27

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

7шт.

28

9706685

NUT,M12 x 1.75, Cl 8

7шт.

29

86613823

SHIELD

Upper, LH

1шт.

30

86613826

SHIELD

Upper, RH

1шт.

31

86614450

SHIELD

Lower, LH

1шт.

32

86614453

SHIELD

Lower, RH

1шт.

33

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

8шт.

34

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

14шт.

35

86508354

PUSH-ON NUT,M8 x 1.25

U-Spring, M8 x 1.25, 17mm x 25mm

4шт.

36

43465

CARRIAGE BOLT,Short NK, M8 x 30, Cl8.8, Full Thd

4шт.

37

87041

COTTER PIN,1/4" x 1 3/4"

1шт.

38

86614656

PLATE

Spacer

4шт.
