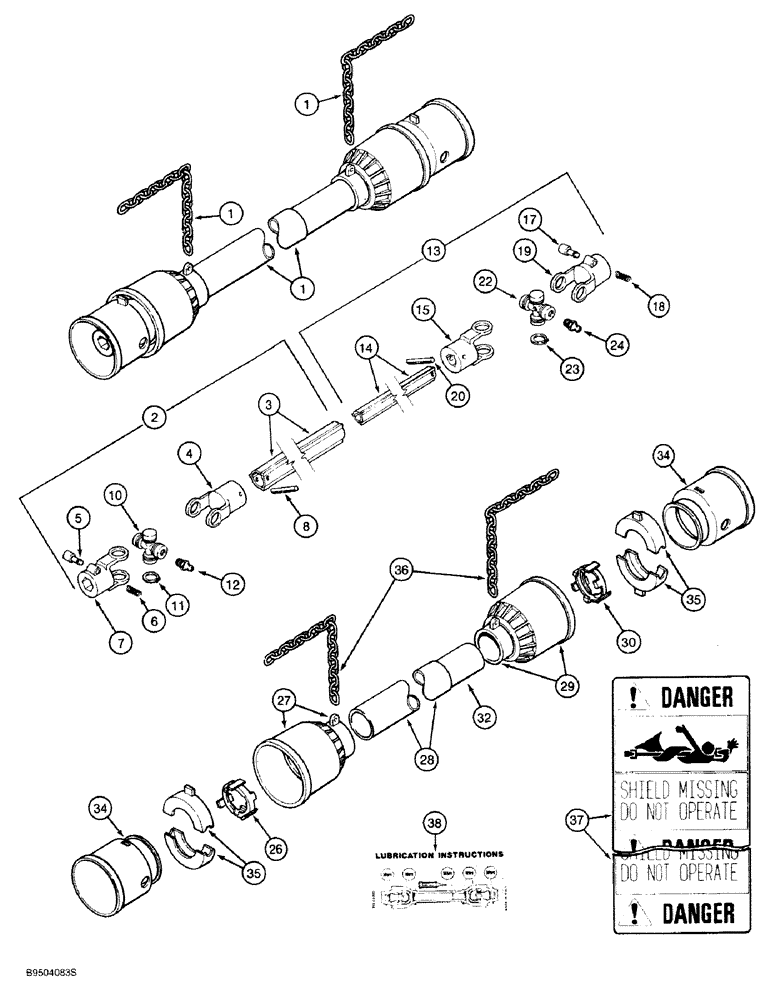

Запчасти Case IH 1084 (09-52) - 1044, 1064, 1083, 1084 HEADER DRIVE SHAFTS, BONDIOLI AND PAVESI (09) - CHASSIS/ATTACHMENTS

1

100951A1

SHAFT

ASSY., consists of 2-38

1-2шт.

2

109897A1

SHAFT

female, consists of 3-12

1шт.

3

NSS

NOT SOLD SEPARAT

TUBE, outer

1шт.

4

1988122C1

YOKE

1шт.

1311950C1

KIT

LOCK ASSY, includes 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

PIN

1шт.

6

NSS

NOT SOLD SEPARAT

SPRING

1шт.

7

384519A1

KIT

YOKE, outer

1шт.

8

CAS763896

SPLIT PIN/SAFETY PIN

PIN

1шт.

109975A1

PACKAGE

KIT, consists of 10-12

1шт.

10

NSS

NOT SOLD SEPARAT

SPIDER

1шт.

11

800-2127

SNAP RING,M27, Int

RING, 29 mm

4шт.

12

933756R1

LUBE NIPPLE,M6 x 1

LUBRICATOR, 6 x 1 mm

1шт.

13

109929A1

SHAFT

male, consists of 14-24

1шт.

14

NSS

NOT SOLD SEPARAT

TUBE, inner

1шт.

15

700708782

YOKE

1шт.

1311950C1

KIT

LOCK ASSY, includes 17, 18

1шт.

17

NSS

NOT SOLD SEPARAT

PIN

1шт.

18

NSS

NOT SOLD SEPARAT

SPRING

1шт.

19

384519A1

KIT

YOKE, outer

1шт.

20

763888

SPLIT PIN/SAFETY PIN

SPLIT PIN, safety

1шт.

109975A1

PACKAGE

KIT, consists of 22-24

1шт.

22

NSS

NOT SOLD SEPARAT

SPIDER

1шт.

23

800-2127

SNAP RING,M27, Int

RING, 29 mm

4шт.

24

933756R1

LUBE NIPPLE,M6 x 1

LUBRICATOR, 6 x 1 mm

1шт.

26

700708773

BEARING COVER

BEARING, outer

1шт.

27

109898A1

CONE

BEARING, outer

1шт.

28

109899A1

TUBE

1шт.

29

109924A1

CONE

BEARING, inner

1шт.

30

700708772

BEARING COVER

BEARING

1шт.

32

109923A1

TUBE,317 mm Length

1шт.

34

109927A1

CONE

BEARING

2шт.

35

109926A1

BEARING

2шт.

36

1326632C1

CHAIN

2шт.

37

1326528C1

DECAL

English

1шт.

37

1326529C1

DECAL

French

1шт.

37

1326530C1

DECAL

Spanish

1шт.

37

1326531C1

DECAL

German

1шт.

38

1326752C1

DECAL

1шт.
