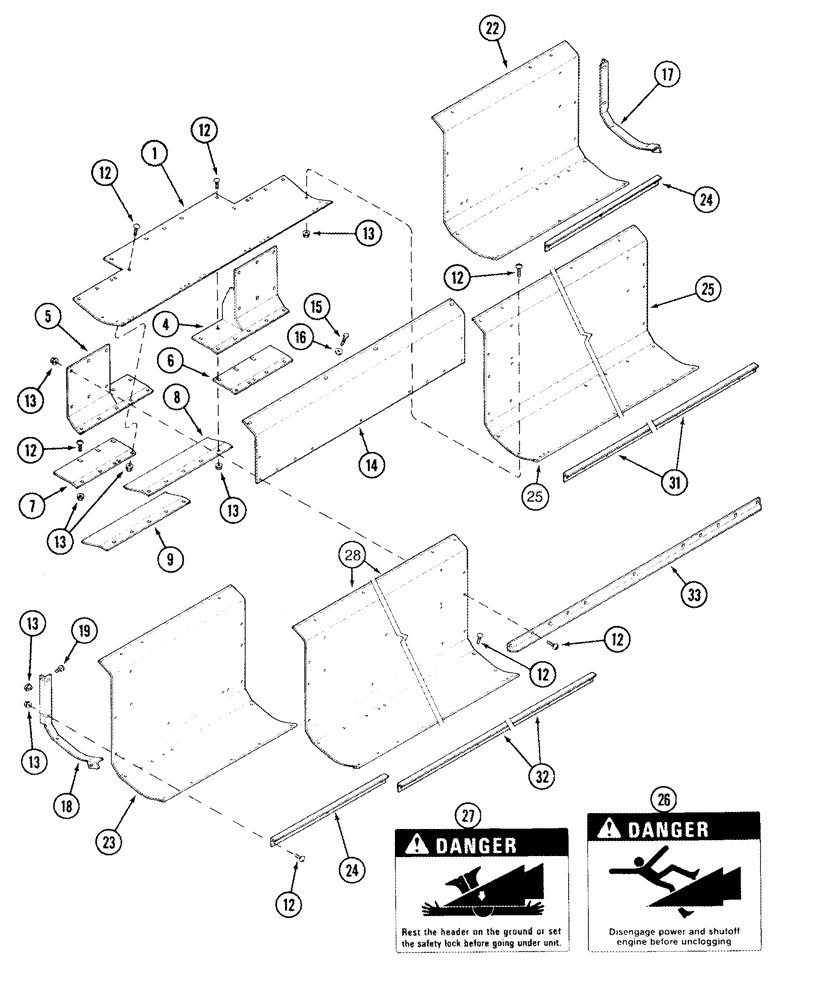

Запчасти Case IH 1084 (09-24) - AUGER - TROUGHS AND ENDS (1084), - JJC0335001 (09) - CHASSIS

1

199752C1

HOOD

1шт.

4

199753C1

SUPPORT

1шт.

5

199754C1

SUPPORT

1шт.

6

1306692C1

SUPPORT

1шт.

7

1306693C1

SUPPORT

1шт.

8

176161C2

SUPPORT

1шт.

9

176162C2

SUPPORT

1шт.

12

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

14

199749C1

SUPPORT

1шт.

15

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

1шт.

16

495-81120

WASHER,.344" x 1 1/4" x .120"

11/32 x 1-1/4 x 7/64

1шт.

17

199750C3

SUPPORT

1шт.

18

199751C3

SUPPORT

1шт.

19

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

6шт.

22

1306216C2

SUPPORT

36 and 38 inch row spacing

1шт.

22

199745C2

HOOD

38 and 40 inch row spacing

1шт.

23

1306217C2

SUPPORT

36 and 38 inch row spacing

1шт.

23

199746C2

HOOD

38 and 40 inch row spacing

1шт.

24

1306229C2

ANGLE

36 and 38 inch row spacing

2шт.

24

199788C2

ANGLE

38 and 40 inch row spacing

2шт.

25

1306263C2

SUPPORT

Includes 26, 27

1шт.

26

REF

INSTRUCTION

Decal, See Page(s) 9-131, 9-133

2шт.

27

REF

INSTRUCTION

Decal, See Page(s) 9-131, 9-133

2шт.

28

1306264C2

SUPPORT

Includes 29, 30

1шт.

31

199640C3

ANGLE

1шт.

32

199641C3

ANGLE

1шт.

33

176144C1

ANGLE

1шт.
