Запчасти Case IH 1084 (09-17) - MAIN DRIVE (1064, 1083, 1084) (09) - CHASSIS

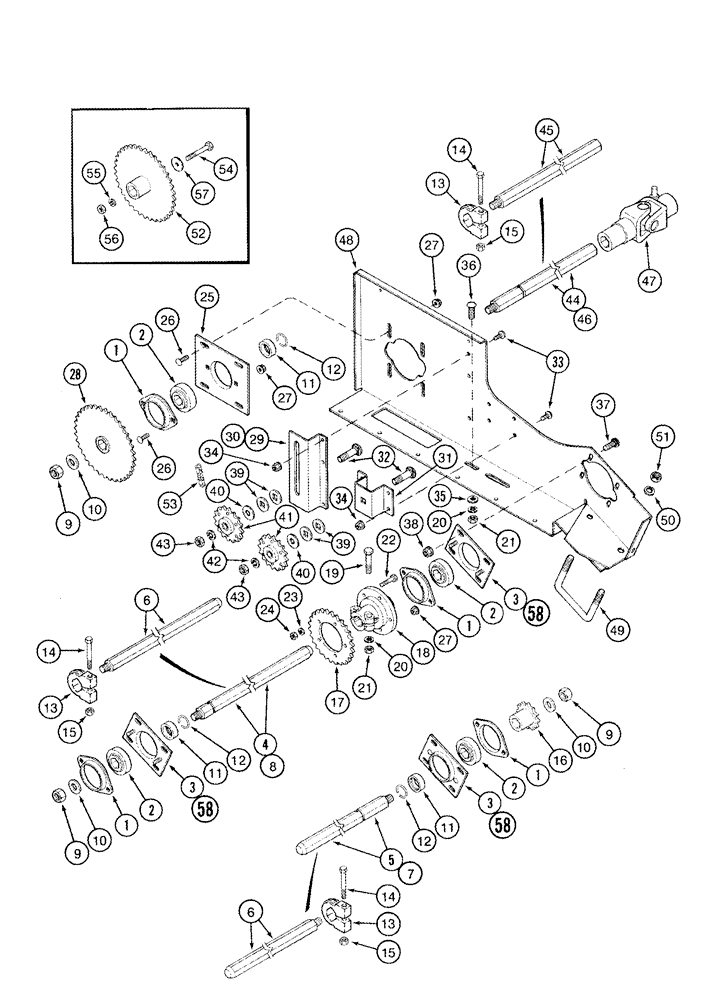

Схема запчастей Case IH 1084 - (09-17) - MAIN DRIVE (1064, 1083, 1084) (09) - CHASSIS
58
25
31
34
37
49
40
38
45
56
6
7
12
52
14
15
13
15
13
35
42
21
1
9
40
9
29
44
55
17
1
14
8
43
20
27
27
4
11
19
2
28
41
5
58
48
27
10
22
11
53
39
58
12
10
36
34
13
26
50
3
12
9
1
24
33
2
23
11
1
2
57
6
39
3
10
2
16
18
14
15
20
43
30
54
46
21
26
47
51
3
32

Артикул

Название

Примечание

Количество

1

599382R1

FLANGED BEARING

6шт.

2

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

6шт.

3

199681C1

FLANGE

4шт.

4

1306176C1

SHAFT

83-1/2 in, No Longer Available, Order 8

1шт.

4

1306221C1

SHAFT

91-1/2 in, Order 8

1шт.

5

1306177C1

SHAFT

88 in, No Longer Available, Order 7

1шт.

5

1306222C1

SHAFT

94 in, Order 7

1шт.

6

1327241C1

SHAFT

94 in, No Longer Available, Order 7, 8

2шт.

7

1327241C3

SHAFT

94 in, Left Hand

1шт.

8

1327262C2

SHAFT

94 in, Right Hand

1шт.

9

323956A1

JAM NUT

3/4 NF

4шт.

10

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

4шт.

11

935856R2

SPACER

4шт.

12

575186R1

SNAP RING

4шт.

13

1327106C1

COLLAR

3шт.

14

326-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

3шт.

15

232-4136

LOCK NUT,3/8"-16, GC

3шт.

16

199727C1

DRIVE SPROCKET

15T

1шт.

17

1306156C1

SPROCKET ASSY.

2шт.

18

1306157C1

HUB

2шт.

19

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

4шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

21

425-108

NUT,1/2" - 13, Gr 5

6шт.

22

326-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

10шт.

23

492-11038

LOCK WASHER,3/8"

18шт.

24

329-106

NUT,3/8"-16, G8

18шт.

25

1306304C1

FLANGE

2шт.

26

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 x 3/4

12шт.

27

231-5146

FLANGE NUT,3/8"-16

12шт.

28

199647C1

SPROCKET,35T

35T

2шт.

29

199678C1

SUPPORT

LH

1шт.

30

199679C1

SUPPORT

RH

1шт.

31

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 x 3/4

2шт.

31

199680C1

SUPPORT

2шт.

32

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

5/8 x 2

4шт.

33

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

10шт.

34

231-5146

FLANGE NUT,3/8"-16

10шт.

35

496-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

36

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4

4шт.

37

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1/2 x 1

16шт.

38

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

16шт.

39

498-81010

SQ HOLE WASHER,16.66mm ID x 38.1mm OD x 2.67mm Thk

Square Hole, 21/32 x 1-1/2 x 3/32

8шт.

40

495-81026

WASHER,21/32" x 1 1/2" x .060"

21/32 x 1-1/2 x 3/64

4шт.

41

629972R92

SPROCKET ASSY.

15T

4шт.

42

492-11062

BEARING WASHER,5/8"

4шт.

43

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8

4шт.

44

1306820C1

SHAFT

33-1/2 in, No Longer Available, Order 1327244C2

2шт.

44

1306821C1

SHAFT

18-1/2 in, Order 1327243C2

2шт.

45

1327244C1

SHAFT

33-1/2 in, No Longer Available, Order 1327244C2

2шт.

45

1327243C1

SHAFT

18-1/2 in, Order 1327243C2

2шт.

46

1327244C2

SHAFT

33-1/2 in, 1064(2)

1шт.

46

1327243C2

SHAFT

18-1/2 in, 1083(2)

1шт.

47

REF

INSTRUCTION

Coupling Assy, See Figure 09-18

2шт.

48

199653C3

SUPPORT

Right Hand

1шт.

48

199652C3

SUPPORT

Left Hand

1шт.

49

199410C1

STIRRUP,5/8" - 11 x 4.325"

1шт.

50

492-11062

BEARING WASHER,5/8"

4шт.

51

425-1010

NUT,5/8"-11, G5

4шт.

52

199643C1

DRIVE SPROCKET

30T, Intermediate Speed

2шт.

52

199649C1

SPROCKET ASSY.

26T, Slow Speed

2шт.

53

199869C92

CHAIN (AG)

Use 101 links of 1793D, 1 x 241-4316, 2 x 241-4716

2шт.

1793D

CHAIN (AG)

No. 60H, 10 ft, Bulk Length

1шт.

241-4316

CHAIN LINK

1шт.

241-4716

LINK,19.05mm Pitch

1шт.

54

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

Used on some models

2шт.

55

492-11031

LOCK WASHER,5/16"

Used on some models

2шт.

56

425-105

NUT,5/16"-18, G5

Used on some models

2шт.

57

495-81122

WASHER,.344" x 1 1/2" x .120"

11/32 x 1-1/2 x 7/64, Used On Some Models

2шт.

58

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 x 3/4, Used On Some Models

2шт.

1

599382R1

FLANGED BEARING

6шт.

2

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

6шт.

3

199681C1

FLANGE

4шт.

4

1306231C1

SHAFT

116-1/2 in, No Longer Available, Order 8

1шт.

4

1306223C1

SHAFT

122-1/2 in, Order 8

1шт.

5

1306232C1

SHAFT

119 in, No Longer Available, Order 7

1шт.

5

1306224C1

SHAFT

125 in, Order 7

1шт.

6

1327242C1

SHAFT

125 in, No Longer Available, Order 7, 8

2шт.

7

1327242C3

SHAFT

125 in, Left Hand

1шт.

8

1327263C2

SHAFT

125 in, Right Hand

1шт.

9

323956A1

JAM NUT

3/4 NF

4шт.

10

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

4шт.

11

935856R2

SPACER

4шт.

12

575186R1

SNAP RING

4шт.

13

1327106C1

COLLAR

3шт.

14

326-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

3шт.

15

232-4136

LOCK NUT,3/8"-16, GC

3шт.

16

199727C1

DRIVE SPROCKET

15T

1шт.

17

1306156C1

SPROCKET ASSY.

2шт.

18

1306157C1

HUB

2шт.

19

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

4шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

21

425-108

NUT,1/2" - 13, Gr 5

6шт.

22

326-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

10шт.

23

492-11038

LOCK WASHER,3/8"

18шт.

24

329-106

NUT,3/8"-16, G8

18шт.

25

1306304C1

FLANGE

2шт.

26

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 x 3/4

12шт.

27

231-5146

FLANGE NUT,3/8"-16

12шт.

28

199647C1

SPROCKET,35T

35T

2шт.

29

199678C1

SUPPORT

LH

1шт.

30

199679C1

SUPPORT

RH

1шт.

31

199680C1

SUPPORT

2шт.

32

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

5/8 x 2

4шт.

33

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

10шт.

34

231-5146

FLANGE NUT,3/8"-16

10шт.

35

496-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

36

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4

4шт.

37

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1/2 x 1

16шт.

38

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

16шт.

39

498-81010

SQ HOLE WASHER,16.66mm ID x 38.1mm OD x 2.67mm Thk

Square Hole, 21/32 x 1-1/2 x 3/32

8шт.

40

495-81026

WASHER,21/32" x 1 1/2" x .060"

21/32 x 1-1/2 x 3/64

4шт.

41

629972R92

SPROCKET ASSY.

15T

4шт.

42

492-11062

BEARING WASHER,5/8"

4шт.

43

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8

4шт.

44

1306820C1

SHAFT

33-1/2 in, No Longer Available, Order 46

2шт.

45

1327244C1

SHAFT

33-1/2 in, No Longer Available, Order 46

2шт.

46

1327244C2

SHAFT

33-1/2 in

2шт.

47

REF

INSTRUCTION

Coupling Assy, See Page(s) 9-61

2шт.

48

199653C3

SUPPORT

Right Hand

1шт.

48

199652C3

SUPPORT

Left Hand

1шт.

49

199410C1

STIRRUP,5/8" - 11 x 4.325"

1шт.

50

492-11062

BEARING WASHER,5/8"

4шт.

51

425-1010

NUT,5/8"-11, G5

4шт.

52

199643C1

DRIVE SPROCKET

30T, Intermediate Speed

2шт.

52

199649C1

SPROCKET ASSY.

26T, Slow Speed

2шт.

53

199869C92

CHAIN (AG)

Use 101 links of 1793D, 1 x 241-4316, 2 x 241-4716

2шт.

1793D

CHAIN (AG)

No. 60H, 10 ft, Bulk Length

1шт.

241-4316

CHAIN LINK

1шт.

241-4716

LINK,19.05mm Pitch

1шт.

54

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

55

492-11031

LOCK WASHER,5/16"

2шт.

56

425-105

NUT,5/16"-18, G5

2шт.

57

495-81122

WASHER,.344" x 1 1/2" x .120"

11/32 x 1-1/2 x 7/64

2шт.

58

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 x 3/4

2шт.

Выбрано товаров: 134
