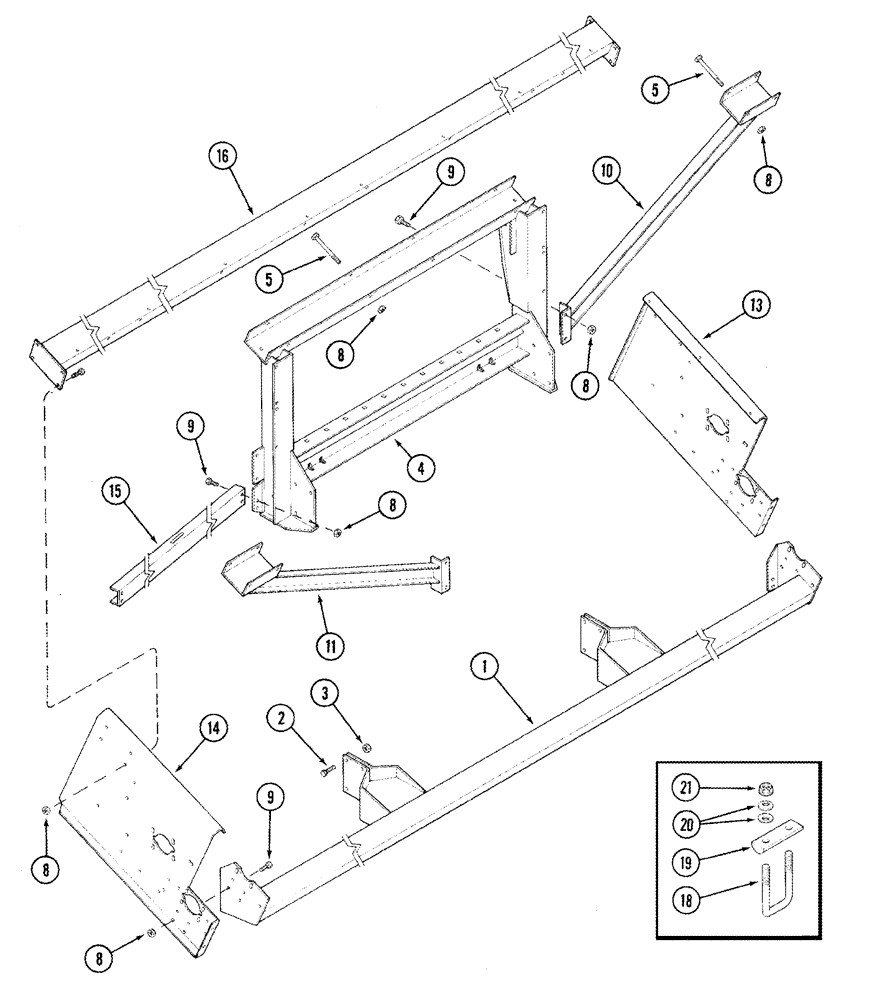

Запчасти Case IH 1084 (09-02) - MAIN FRAME ASSEMBLY - 1064, 1083, 1084 (09) - CHASSIS

1

199581C2

SUPPORT

1064(1)

1шт.

1

199582C3

SUPPORT

1083(1)

1шт.

1

1306212C3

SUPPORT

36 and 38 inch row spacing, 1084(1)

1шт.

1

199583C3

SUPPORT

38 and 40 inch row spacing, 1084(1)

1шт.

2

326-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

8шт.

3

329-1010

NUT,5/8"-11, G8

8шт.

4

176029C3

FRAME

Main

1шт.

5

413-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

1/2 x 6

8шт.

8

425-108

NUT,1/2" - 13, Gr 5

30шт.

9

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

22шт.

10

176070C2

SUPPORT

1064(1), 1083(1)

1шт.

10

199103C1

SUPPORT

1084(1)

1шт.

11

176071C2

SUPPORT

1064(1), 1083(1)

1шт.

11

199104C1

SUPPORT

1084(1)

1шт.

13

199565C3

SUPPORT

1064(1)

1шт.

13

1306737C2

SUPPORT

1083(1)

1шт.

13

199563C2

SUPPORT

1084(1)

1шт.

14

199566C3

SUPPORT

1064(1)

1шт.

14

1306738C2

SUPPORT

1083(1)

1шт.

14

199564C2

SUPPORT

1084(1)

1шт.

15

199605C2

CHANNEL

1064(2)

1шт.

15

199607C3

CHANNEL

1083(2)

1шт.

15

1306206C2

CHANNEL

36 and 38 inch row spacing, 1084(2)

1шт.

15

199608C2

CHANNEL

38 and 40 inch row spacing, 1084(2)

1шт.

16

199616C1

SUPPORT TUBE

1064(1)

1шт.

16

199617C1

SUPPORT TUBE

1083(1)

1шт.

16

1306214C2

SUPPORT TUBE,7238 mm Length

36 and 38 inch row spacing, 1084(1)

1шт.

16

199618C2

SUPPORT

38 and 40 inch row spacing, 1084(1)

1шт.

18

177134C3

U-BOLT,5/8" - 11 x 2.18" W x 4.60" L

BOLT "U"

2шт.

19

177140C2

BAR

2шт.

20

155960C1

BELLEVILLE WASHER

8шт.

21

231-14410

NUT,5/8"-11, GB

4шт.
