Запчасти Case IH 1054 (09-34) - INNER GATHERER SHIELDS WITH ANGLED DIVIDER SUPPORT (09) - CHASSIS

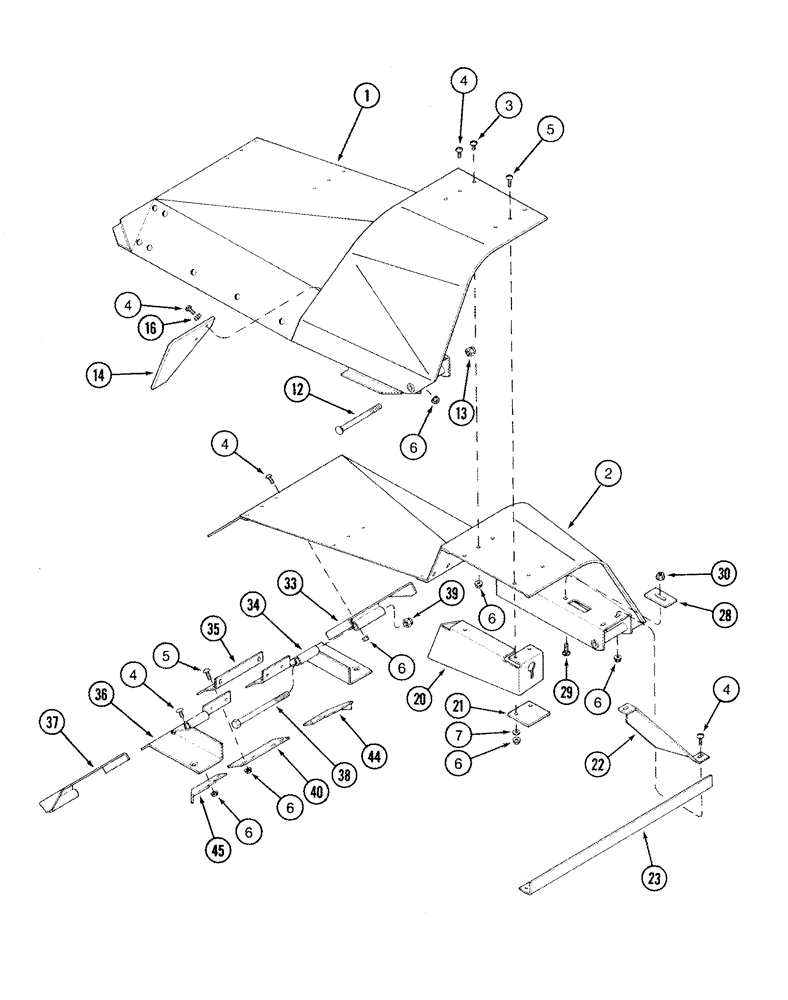

Схема запчастей Case IH 1054 - (09-34) - INNER GATHERER SHIELDS WITH ANGLED DIVIDER SUPPORT (09) - CHASSIS
36
5
23
4
39
14
30
45
12
33
4
13
34
35
44
29
5
6
4
3
4
6
2
6
6
16
7
8
6
4
6
22
20
37
21
28
40
1
33

Артикул

Название

Примечание

Количество

36, 38 and 40 Inch Row Spacing

1шт.

1

199546C2

SHIELD

No Longer Available, Order 1345362C1, See Page(s) 9-109

1шт.

2

199545C2

SHIELD

No Longer Available, Order 1345361C1, See Page(s) 9-109

1шт.

3

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

1шт.

4

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

5

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

5/16 x 1

1шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

7

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

11/32 x 1 x 3/64

3шт.

12

433-888

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 5 1/2", Gr 5

1/2 x 5-1/2

2шт.

13

231-1448

NUT,1/2"-13, GB

2шт.

14

199097C3

DEFLECTOR

4шт.

16

495-81119

WASHER,8.74mm ID x 31.75mm OD x 1.7mm Thk

11/32 x 1-1/4 x 1/16

8шт.

20

1306003C2

SUPPORT

Divider

1шт.

21

180041C1

RETAINER

1шт.

22

1306697C1

SUPPORT

1шт.

23

1306923C2

ANGLE

1шт.

28

176216C2

PLATE

2шт.

29

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 x 3/4

2шт.

30

231-5146

FLANGE NUT,3/8"-16

2шт.

33

199524C1

SUPPORT

1шт.

34

1306571C2

HINGE

1шт.

35

1306574C1

SUPPORT

1шт.

36

1306572C2

HINGE

1шт.

37

199525C1

SUPPORT

1шт.

38

413-8112

BOLT,Hex, 1/2" - 13 x 7", Gr 5

.5 X 7 UNC GR5 YZD

2шт.

39

231-1448

NUT,1/2"-13, GB

2шт.

40

1306274C2

LARGE PLATE

PLATE, LARGE

1шт.

44

1306688C3

LARGE PLATE

PLATE, LARGE

1шт.

45

1306689C3

LARGE PLATE

PLATE, LARGE

1шт.

Выбрано товаров: 29
