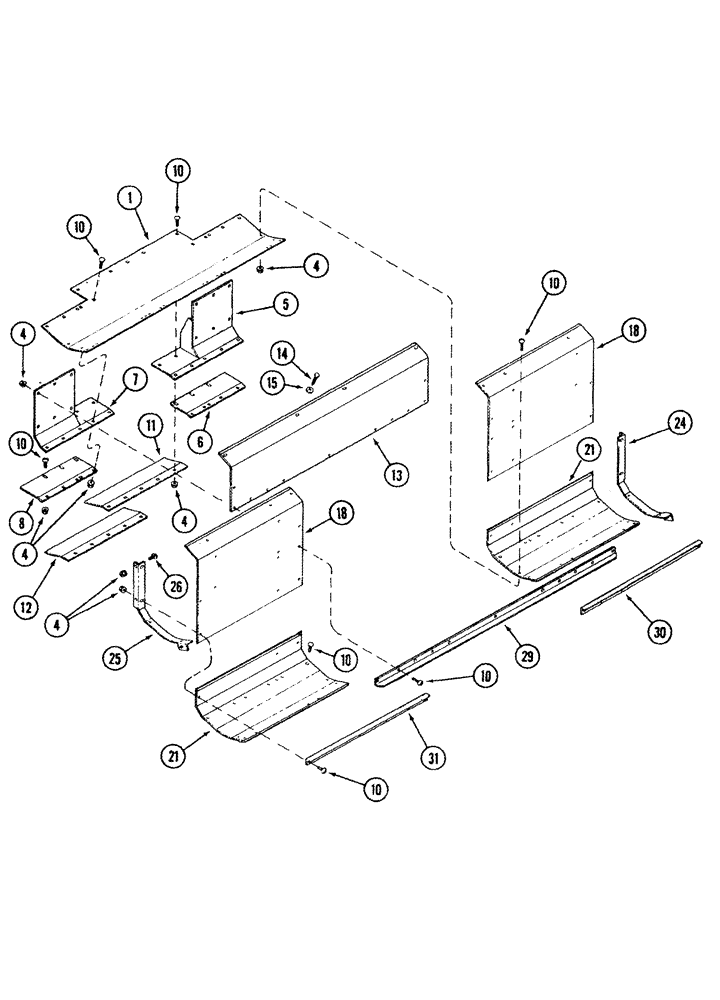

Запчасти Case IH 1054 (09-23) - AUGER - TROUGHS AND ENDS (1043, 1044, 1054, 1063, 1064, 1083, JJC0335001 -) (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
199752C1
HOOD
1043(1), 1044(1), 1063(1), 1064(1), 1083(1)
1шт.
1
1306113C1
TROUGH
1054(1)
1шт.
4
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
1шт.
5
199753C1
SUPPORT
1шт.
6
1306692C1
SUPPORT
1шт.
7
199754C1
SUPPORT
1шт.
8
1306693C1
SUPPORT
1шт.
10
477-73112
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"
1шт.
11
176161C2
SUPPORT
1шт.
12
176162C2
SUPPORT
1шт.
13
199749C1
SUPPORT
1шт.
14
199953C1
SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"
1шт.
15
495-81120
WASHER,.344" x 1 1/4" x .120"
11/32 x 1-1/4 x 7/64
1шт.
18
322336A1
SHEET
Left Hand, Includes Decals, 1043(1)
1шт.
18
322339A1
SHEET
Left Hand, Includes Decals, 1044(1)
1шт.
18
322340A1
SHEET
Left Hand, Includes Decals, 1054(1)
1шт.
18
322341A1
SHEET
Left Hand, Includes Decals, 1063(1)
1шт.
18
322342A2
SHEET
Left Hand, Includes Decals, 1064(1)
1шт.
18
322343A1
SHEET
Left Hand, Includes Decals, 1083(1)
1шт.
18
322346A1
SHEET
Right Hand, Includes Decals, 1043(1)
1шт.
18
322347A1
SHEET
Right Hand, Includes Decals, 1044(1)
1шт.
18
322348A1
SHEET
Right Hand, Includes Decals, 1054(1)
1шт.
18
322349A1
SHEET
Right Hand, Includes Decals, 1063(1)
1шт.
18
322350A2
SHEET
Right Hand, Includes Decals, 1064(1)
1шт.
18
322351A1
SHEET
Right Hand, Includes Decals, 1083(1)
1шт.
21
319202A1
TROUGH
Left Hand, 1043(1)
1шт.
21
319204A1
TROUGH
Left Hand, 1044(1)
1шт.
21
319206A1
TROUGH
Left Hand, 1054(1)
1шт.
21
319208A1
TROUGH
Left Hand, 1063(1)
1шт.
21
319210A1
TROUGH
Left Hand, 1064(1)
1шт.
21
319212A1
TROUGH
Left Hand, 1083(1)
1шт.
21
319203A1
SHEET
Right Hand, 1043(1)
1шт.
21
319205A1
TROUGH
Right Hand, 1044(1)
1шт.
21
319207A1
TROUGH
Right Hand, 1054(1)
1шт.
21
319209A1
TROUGH
Right Hand, 1063(1)
1шт.
21
319211A1
TROUGH
Right Hand, 1064(1)
1шт.
21
319213A1
TROUGH
Right Hand, 1083(1)
1шт.
24
199750C3
SUPPORT
1шт.
25
199751C3
SUPPORT
1шт.
26
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2
6шт.
29
176144C1
ANGLE
1шт.
30
199776C2
ANGLE
1043(1)
1шт.
30
199778C2
ANGLE
1044(1)
1шт.
30
199780C2
ANGLE
1054(1)
1шт.
30
199782C3
ANGLE
1063(1)
1шт.
30
199784C2
ANGLE
1064(1)
1шт.
30
199786C3
ANGLE
1083(1)
1шт.
31
199777C2
ANGLE
1043(1)
1шт.
31
199779C2
ANGLE
1044(1)
1шт.
31
199781C2
ANGLE
1054(1)
1шт.
31
199783C3
ANGLE
1063(1)
1шт.
31
199785C2
ANGLE
1064(1)
1шт.
31
199787C3
ANGLE
1083(1)
1шт.
Выбрано товаров: 53
