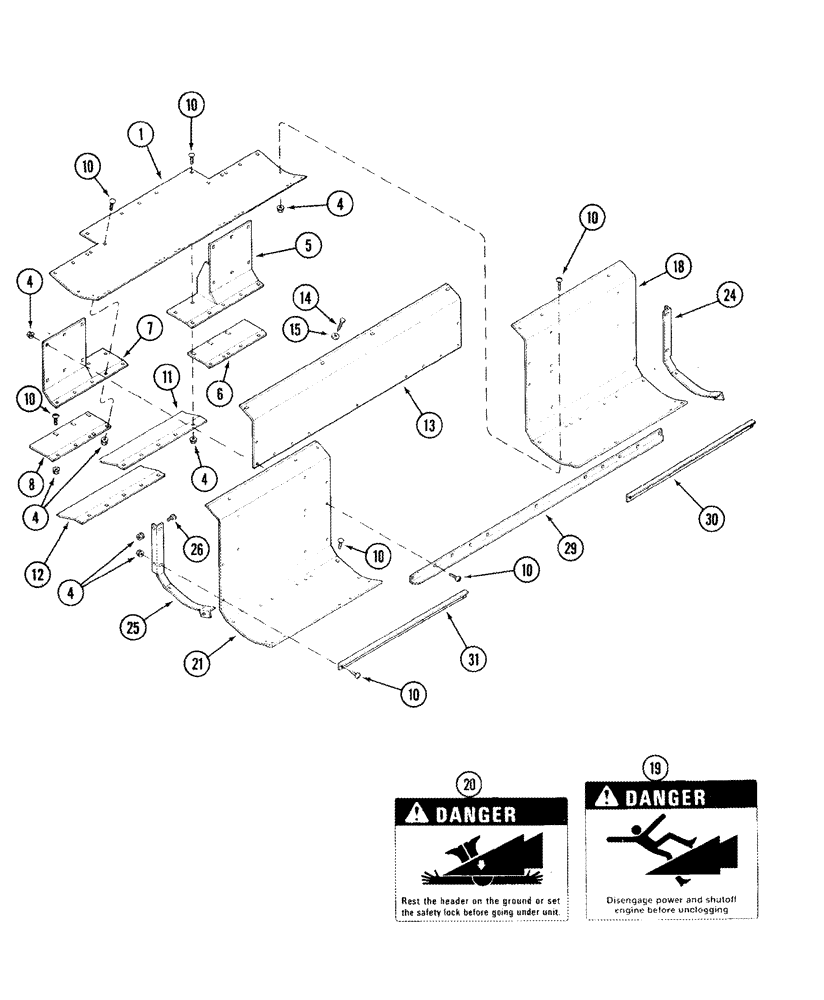

Запчасти Case IH 1054 (09-22) - AUGER - TROUGHS AND ENDS (1043, 1044, 1054, 1063, 1064, 1083, - JJC0335001) (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
199752C1
HOOD
1043(1), 1044(1), 1063(1), 1064(1), 1083(1)
1шт.
1
1306113C1
TROUGH
1054(1)
1шт.
4
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
1шт.
5
199753C1
SUPPORT
1шт.
6
1306692C1
SUPPORT
1шт.
7
199754C1
SUPPORT
1шт.
8
1306693C1
SUPPORT
1шт.
10
477-73112
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"
1шт.
11
176161C2
SUPPORT
Left Hand
1шт.
12
176162C2
SUPPORT
Right Hand
1шт.
13
199749C1
SUPPORT
1шт.
14
199953C1
SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"
1шт.
15
495-81120
WASHER,.344" x 1 1/4" x .120"
11/32 x 1-1/4 x 7/64
1шт.
18
1306255C2
SUPPORT
Includes 19, 20, 1043(1)
1шт.
18
1306257C2
SUPPORT
Includes 19, 20, 1044(1)
1шт.
18
1306259C2
SUPPORT
Includes 19, 20, 1054(1)
1шт.
18
1306261C2
SUPPORT
Includes 19, 20, 1063(1)
1шт.
18
1306263C2
SUPPORT
Includes 19, 20, 1064(1)
1шт.
18
1306265C3
SUPPORT
Includes 19, 20, 1083(1)
1шт.
19
REF
INSTRUCTION
Decal, See Page(s) 9-131, 9-133
1шт.
20
REF
INSTRUCTION
Decal, See Page(s) 9-131, 9-133
2шт.
21
1306256C1
SUPPORT
Includes 22, 23, 1043(1)
1шт.
21
1306258C1
SUPPORT
Includes 22, 23, 1044(1)
1шт.
21
1306260C1
SUPPORT
Includes 22, 23, 1054(1)
1шт.
21
1306262C1
SUPPORT
Includes 22, 23, 1063(1)
1шт.
21
1306264C2
SUPPORT
Includes 22, 23, 1064(1)
1шт.
21
1306266C3
SUPPORT
Includes 22, 23, 1083(1)
1шт.
24
199750C3
SUPPORT
1шт.
25
199751C3
SUPPORT
1шт.
26
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2
6шт.
29
176144C1
ANGLE
1шт.
30
199776C2
ANGLE
1043(1)
1шт.
30
199778C2
ANGLE
1044(1)
1шт.
30
199780C2
ANGLE
1054(1)
1шт.
30
199782C3
ANGLE
1063(1)
1шт.
30
199784C2
ANGLE
1064(1)
1шт.
30
199786C3
ANGLE
1083(1)
1шт.
31
199777C2
ANGLE
1043(1)
1шт.
31
199779C2
ANGLE
1044(1)
1шт.
31
199781C2
ANGLE
1054(1)
1шт.
31
199783C3
ANGLE
1063(1)
1шт.
31
199785C2
ANGLE
1064(1)
1шт.
31
199787C3
ANGLE
1083(1)
1шт.
Выбрано товаров: 43
