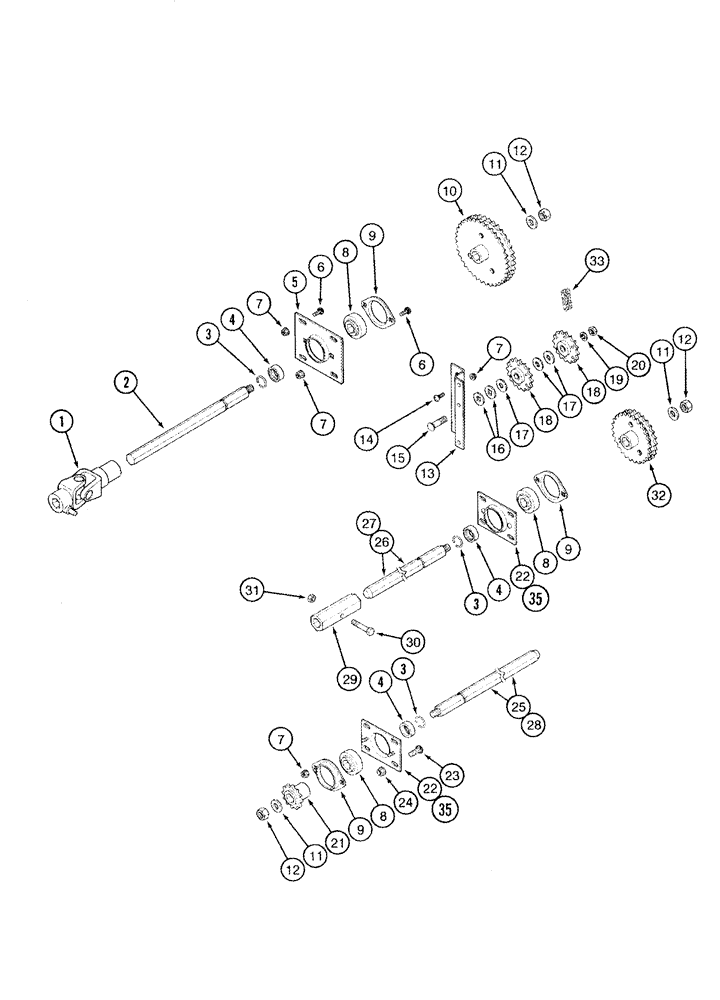

Запчасти Case IH 1054 (09-16) - MAIN DRIVE - WITHOUT SPROCKET HUB (1054, 1063) (09) - CHASSIS

1

REF

INSTRUCTION

Coupling Assy, See Page(s) 9-18

1шт.

2

1338483C2

SHAFT

1386 mm

1шт.

2

1338484C2

SHAFT

1259 mm

1шт.

3

575186R1

SNAP RING

3шт.

4

935856R2

SPACER

3шт.

5

1306304C1

FLANGE

1шт.

6

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 x 3/4

6шт.

7

231-5146

FLANGE NUT,3/8"-16

11шт.

8

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

3шт.

9

599382R1

FLANGED BEARING

3шт.

10

1338460C1

SPROCKET ASSY.

35T, Standard Speed

1шт.

10

1338459C1

SPROCKET ASSY.

30T, Intermediate Speed

1шт.

10

1338488C1

SPROCKET ASSY.

26T, Slow Speed

1шт.

11

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

3шт.

12

323956A1

JAM NUT

3/4 NF

3шт.

13

199678C1

SUPPORT

LH, 1054(1)

1шт.

13

134135A1

SUPPORT

1063(1)

1шт.

14

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

1шт.

15

433-1048

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3", Gr 5

5/8 x 3 in

1шт.

16

498-81010

SQ HOLE WASHER,16.66mm ID x 38.1mm OD x 2.67mm Thk

Square Hole, 21/32 x 1-1/2 x 3/32

2шт.

17

495-81026

WASHER,21/32" x 1 1/2" x .060"

21/32 x 1-1/2 x 3/64

3шт.

18

629972R92

SPROCKET ASSY.

15T, Idler

2шт.

19

492-11062

BEARING WASHER,5/8"

1шт.

20

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8

1шт.

21

199727C1

DRIVE SPROCKET

15T, Drive

1шт.

22

199681C1

FLANGE

Also Order 35

2шт.

23

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1/2 x 1

8шт.

24

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

25

1327238C3

SHAFT

72-11/16 in, Right Hand, 1054(1)

1шт.

26

1338481C2

SHAFT

113-15/16 in, Left Hand, 1054(1)

1шт.

27

1338482C3

SHAFT

88-11/16 in, Left Hand, 1063(1)

1шт.

28

1327240C3

SHAFT

87-3/4 in, Right Hand, 1063(1)

1шт.

29

1306158C1

SPACER

1шт.

30

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1/2 x 2-1/2

1шт.

31

231-1448

NUT,1/2"-13, GB

1шт.

32

1338458C1

SPROCKET ASSY.

24T, Drive

1шт.

33

1306360C92

CHAIN (AG)

Use 99 links of 1355D, 1 x 241-4326, 1 x 241-4726

1шт.

1355D

CHAIN (AG)

10 ft, Bulk Length

1шт.

241-4326

LINK,19.05mm Pitch

1шт.

241-4726

LINK,19.05mm Pitch

1шт.

35

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 x 3/4

2шт.
