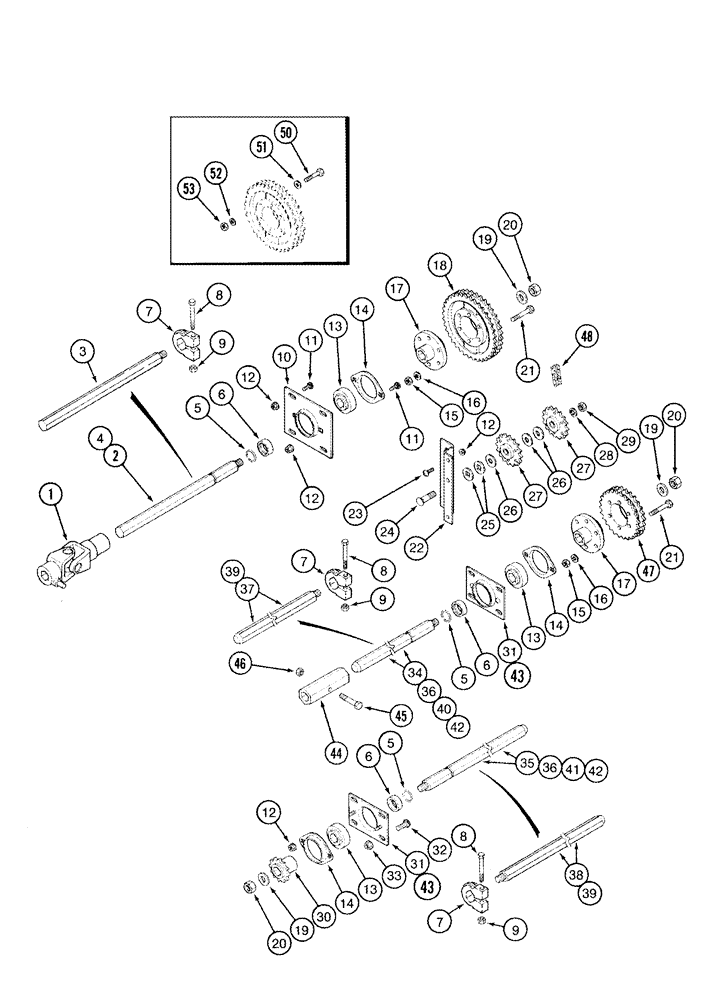

Запчасти Case IH 1054 (09-15) - MAIN DRIVE - WITH SPROCKET HUB (1054, 1063) (09) - CHASSIS

1

REF

INSTRUCTION

Coupling Assy, See Page(s) 9-61

1шт.

2

1306819C1

SHAFT

53-1/2 in, No Longer Available, Order 1324245C2

1шт.

2

1306817C2

SHAFT

48-1/2 in, Order 1327246C2

1шт.

3

1327245C1

SHAFT

53-1/2 in, No Longer Available, Order 1327245C2

1шт.

3

1327246C1

SHAFT

48-1/2 in, Order 1327246C2

1шт.

4

1327245C2

SHAFT

53-1/2 in, 1054(1)

1шт.

4

1327246C2

SHAFT

48-1/2 in, 1063(1)

1шт.

5

575186R1

SNAP RING

3шт.

6

935856R2

SPACER

3шт.

7

1327106C1

COLLAR

3шт.

8

326-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

3шт.

9

232-4136

LOCK NUT,3/8"-16, GC

3шт.

10

1306304C1

FLANGE

1шт.

11

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 x 3/4

6шт.

12

231-5146

FLANGE NUT,3/8"-16

11шт.

13

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

3шт.

14

599382R1

FLANGED BEARING

3шт.

15

425-107

NUT,7/16"-14, G5

12шт.

16

492-11044

LOCK WASHER,7/16"

12шт.

17

1306358C1

HUB

2шт.

18

1306892C1

SPROCKET ASSY.

Standard Speed, 35 Teeth

1шт.

18

158418C1

DRIVE SPROCKET

Intermediate Speed, 30 Teeth

1шт.

18

1306146C1

SPROCKET ASSY.

Slow Speed, 1063(1), 26 Teeth

1шт.

19

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

3шт.

20

323956A1

JAM NUT

3/4 NF

3шт.

21

113-319

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 5

12шт.

22

199678C1

SUPPORT

LH, 1054(1)

1шт.

22

134135A1

SUPPORT

1063(1)

1шт.

23

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

1шт.

24

433-1048

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3", Gr 5

5/8 x 3 in

1шт.

25

498-81010

SQ HOLE WASHER,16.66mm ID x 38.1mm OD x 2.67mm Thk

Square Hole, 21/32 x 1-1/2 x 3/32

2шт.

26

495-81026

WASHER,21/32" x 1 1/2" x .060"

21/32 x 1-1/2 x 3/64

3шт.

27

629972R92

SPROCKET ASSY.

15T

2шт.

28

492-11062

BEARING WASHER,5/8"

1шт.

29

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8

1шт.

30

199727C1

DRIVE SPROCKET

15T

1шт.

31

199681C1

FLANGE

Also Order 43

2шт.

32

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1/2 x 1

8шт.

33

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

34

1306219C1

DRIVE SHAFT

73 in, No Longer Available, Order 40

1шт.

35

1306225C1

SHAFT

112-3/4 in, No Longer Available, Order 41

1шт.

36

1306220C2

SHAFT

87-3/4 in, No Longer Available, Order 42

2шт.

37

1327238C1

SHAFT

72-11/16 in, No Longer Available, Order 40

1шт.

38

1327239C1

SHAFT

112-3/4 in, No Longer Available, Order 41

1шт.

39

1327240C1

SHAFT

87-3/4 in, No Longer Available, Order 42

2шт.

40

1327238C3

SHAFT

72-11/16 in, Right Hand, 1054(1)

1шт.

41

1327239C2

SHAFT

112-3/4 in, Left Hand, 1054(1)

1шт.

42

1327240C3

SHAFT

87-3/4 in, 1063(2)

1шт.

43

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 x 3/4

2шт.

44

1306158C1

SPACER

1шт.

45

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1/2 x 2-1/2

1шт.

46

231-1448

NUT,1/2"-13, GB

1шт.

47

1306352C1

SPROCKET ASSY.

24T

1шт.

48

1306360C92

CHAIN (AG)

Use 99 links of 1355D, 1 x 241-4326, 1 x 241-4726

1шт.

1355D

CHAIN (AG)

10 ft, Bulk Length

1шт.

241-4326

LINK,19.05mm Pitch

1шт.

241-4726

LINK,19.05mm Pitch

1шт.

50

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Used On Some Models

1шт.

51

28588R1

WASHER

11/32 x 11/16 x 3/64, Used On Some Models

1шт.

52

492-11031

LOCK WASHER,5/16"

Used on some models

1шт.

53

425-105

NUT,5/16"-18, G5

Used on some models

1шт.
