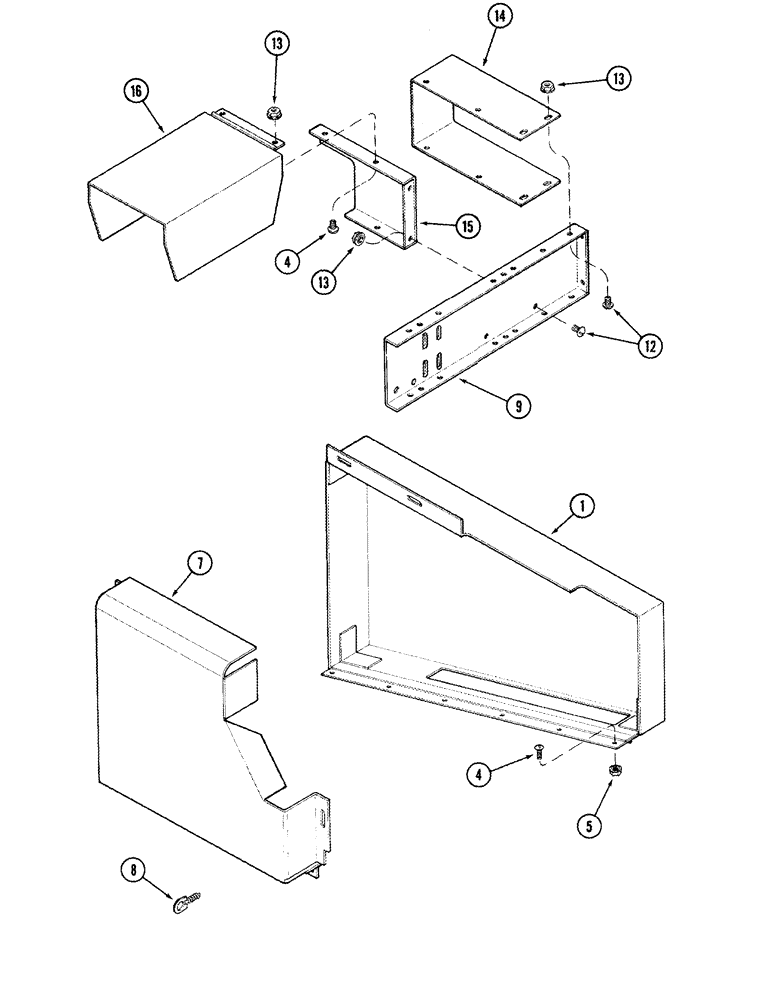

Запчасти Case IH 1054 (09-12) - MAIN DRIVE - SHIELDS (1043, 1044, 1054, 1063) (09) - CHASSIS

1

199519C2

GUARD

1шт.

4

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

14шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

14шт.

7

1306235C1

SHIELD

1шт.

8

188029C1

LATCH

4шт.

9

199682C3

SUPPORT

1043(1)

1шт.

9

199602C1

SUPPORT

1044(1)

1шт.

9

199603C3

SUPPORT

1054(1)

1шт.

9

199604C4

SUPPORT

1063(1)

1шт.

12

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

1шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

14

1327113C1

HOOD

1043(1)

1шт.

14

1327114C1

HOOD

1044(1)

1шт.

14

1327116C1

GUARD

1054(1)

1шт.

14

1327115C1

GUARD

1063(1)

1шт.

15

1327014C2

SUPPORT

1шт.

16

1327117C1

HOOD

1шт.
