Запчасти Case IH 1054 (09-10) - STALK ROLL AND FRAME - JJC0146000 (09) - CHASSIS

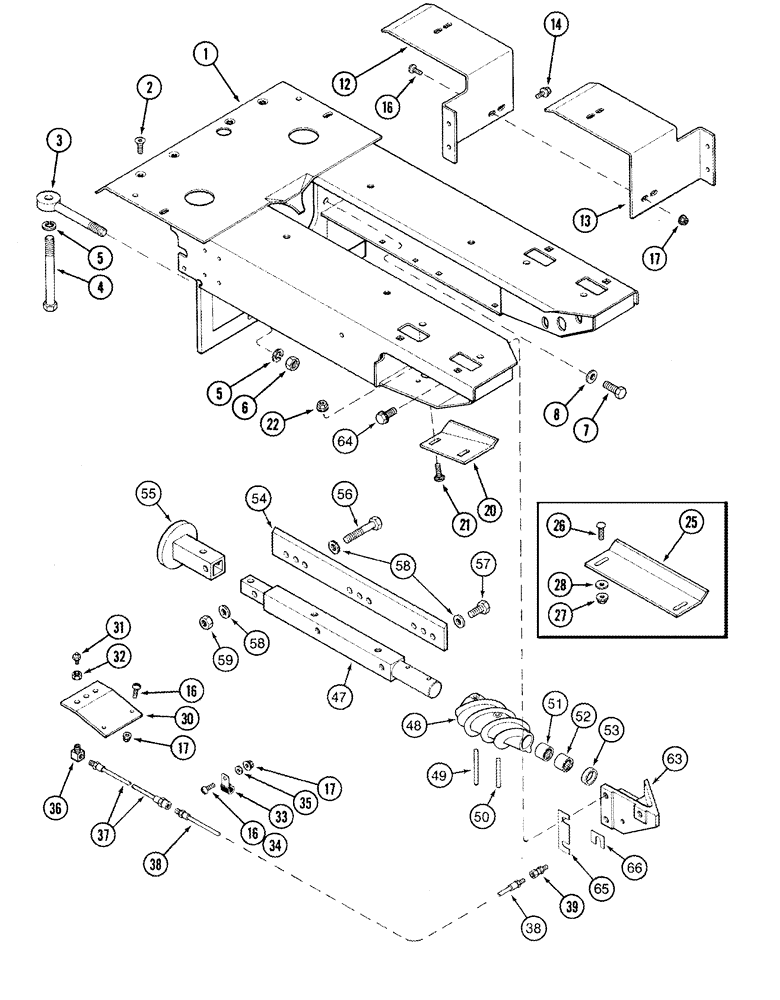

Схема запчастей Case IH 1054 - (09-10) - STALK ROLL AND FRAME - JJC0146000 (09) - CHASSIS
57
63
21
65
17
52
2
4
5
58
22
5
59
51
28
12
38
16
50
27
35
13
8
36
32
66
38
7
17
54
3
47
16
39
14
56
64
31
20
6
48
49
1
16
25
26
53
17
34
30
33
55
58
37

Артикул

Название

Примечание

Количество

1

199460C1

FRAME

1шт.

2

361-43816

HEX SOC SCREW,FLAT, 3/8" - 16 x 1"

3/8 x 1 in

1шт.

3

176365C1

BOLT,5/8" - 11 x 5.8"

1шт.

4

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8 x 6

1шт.

5

492-11062

BEARING WASHER,5/8"

1шт.

6

425-1010

NUT,5/8"-11, G5

1шт.

7

326-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

1шт.

8

496-21053

WASHER,17/32" x 1 1/16" x .134"

1шт.

12

1327136C1

SHIELD

1043, 1063, 1083

1шт.

12

1327139C1

SHIELD

1044, 1054, 1064, 1084, Not Illustrated

1шт.

13

1327135C1

SHIELD

1043, 1063, 1083

1шт.

13

1327138C1

SHIELD

1044, 1054, 1064, 1084, Not Illustrated

1шт.

14

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

1/4 x 1/2

1шт.

16

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

20

1306824C1

KNIFE

Right Hand

1шт.

20

1306823C1

KNIFE

Left Hand, Not Illustrated

1шт.

21

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

22

231-5146

FLANGE NUT,3/8"-16

1шт.

25

1306079C1

KNIFE

Rear

2шт.

26

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

4шт.

27

231-5146

FLANGE NUT,3/8"-16

4шт.

28

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

4шт.

30

199589C1

SUPPORT

1шт.

31

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

32

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

1шт.

33

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

1шт.

34

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

1шт.

35

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

36

580258R1

ELBOW

1шт.

37

1306686C1

HOSE ASSY.,3.02mm ID x 457.2mm L

HOSE

2шт.

38

199373C2

HOSE,12.7mm ID x 1473.2mm L

1448 mm (57 in)

1шт.

39

218-900

HYD CONNECTOR,1/8" NPT x 1/8" NPSM Fem

1шт.

1306174C93

ROLL

Right Hand, Consists Of 47 - 59

1шт.

1306173C93

ROLL

Left Hand, Not Illustrated, Consists Of 47 - 59

1шт.

1306163C93

ROLL

Right Hand, Consists Of 47 - 53

1шт.

1306162C93

ROLL

Left Hand, Not Illustrated, Consists Of 47 - 53

1шт.

47

199293C5

SHAFT

1шт.

48

1306729C2

AUGER

Right Hand

1шт.

48

1306728C2

AUGER

Left Hand, Not Illustrated

1шт.

49

176307C1

RIVET,9.53mm OD x 76.2mm L

3/8 x 3

1шт.

50

156167C1

RIVET,9.53mm OD x 65mm L

3/8 x 2-9/16

1шт.

51

308674R1

BEARING, NEEDLE,Needle, 25.4mm ID x 33.35mm OD x 19.05mm W

1шт.

52

630836C91

NEEDLE BEARING,Needle, 25.4mm ID x 33.35mm OD x 20.62mm W

1-19/64 OD

1шт.

53

1327151C1

BUSHING,26.4mm ID x 33.39mm OD x 8mm L

1шт.

54

1327126C1

KNIFE,457mm L x 55.8mm W x 5.46mm Thk

4шт.

55

176301C2

COUPLING,Assembly, Shaft, Stalk Roll

1шт.

56

326-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

2шт.

57

326-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

8шт.

58

496-21053

WASHER,17/32" x 1 1/16" x .134"

12шт.

59

329-108

NUT,1/2"-13, G8

2шт.

63

1306172C1

SUPPORT

Right Hand

1шт.

63

1306171C1

SUPPORT

Left Hand, Not Illustrated

1шт.

64

409-7812

BOLT,Hex Flg, 1/2" - 13 x 3/4", Spcl

1/2 x 3/4

1шт.

65

199806C1

SHIM,28mm OD x 0.81mm Thk

0.032 in

1шт.

66

199408C1

SHIM,28mm OD x 1mm Thk

0.032 in

1шт.

66

1327159C1

SHIM

0.010 in

1шт.

Выбрано товаров: 57
