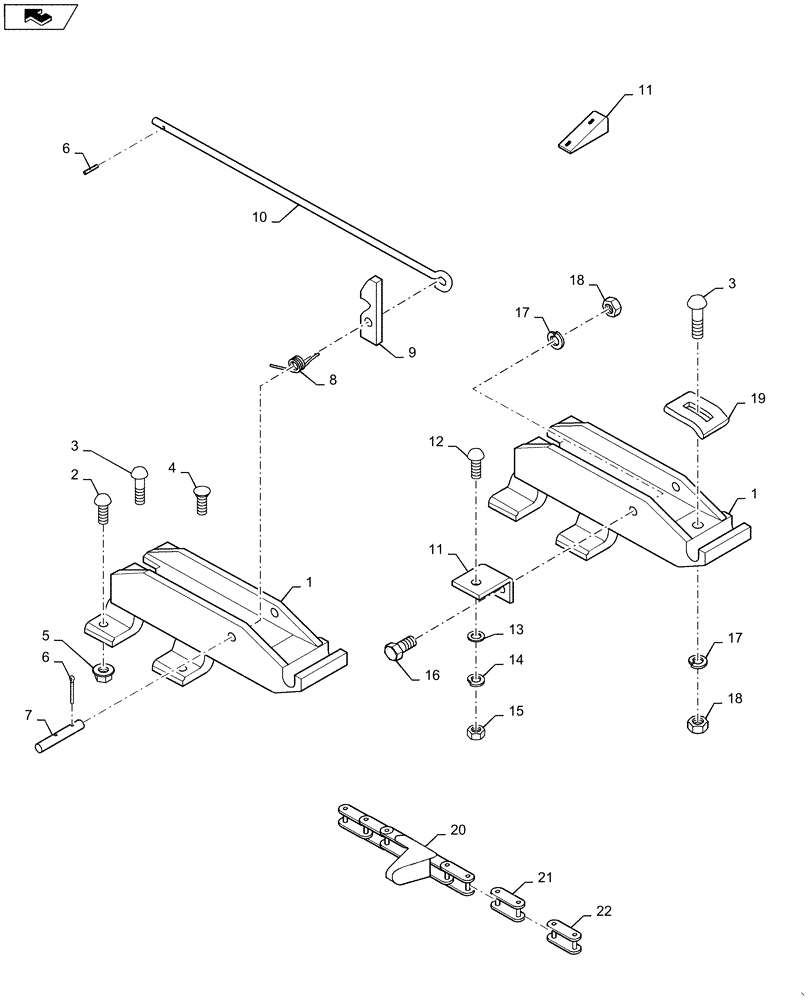

Запчасти Case IH 1054 (09-09) - GATHERER AND CONVEYOR (09) - CHASSIS

1

199372C5

SUPPORT ASSY.

Right Hand

1шт.

1

199371C5

SUPPORT ASSY.

Left Hand, Not Illustrated

1шт.

2

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4

1шт.

3

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2

1шт.

4

19059R1

PLOW BOLT,#3, 1/2" - 13 x 1 1/4", Gr 2

1/2 x 1-1/4

1шт.

5

473197R1

FLANGE NUT

1/2

1шт.

6

38-11216

LOCK PIN,3/16" x 1", Slotted

1шт.

7

199481C1

LOCK PIN,12.7mm OD x 81mm L

1шт.

8

176468C1

SPRING

Right Hand

1шт.

8

176467C1

SPRING

Left Hand, Not Illustrated

1шт.

9

176464C1

HOOK

1шт.

10

199315C1

ROD

1шт.

11

176394C1

ANGLE

Use With, Outer Idler Supports Only

2шт.

11

315035A1

SUPPORT

Used With Plastic Hood Assembly

2шт.

12

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 x 3/4

2шт.

12

412-612

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4; 2

2шт.

13

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

425-106

NUT,3/8"-16, Cl 5

2шт.

16

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

18

425-108

NUT,1/2" - 13, Gr 5

4шт.

19

176466C2

PLATE

Use With, Outer Idler Supports Only

2шт.

20

176279C91

CHAIN,1987.3mm L

Includes 63, 64

1шт.

21

199072C1

LINK,19.94mm Pitch

1шт.

22

199073C1

LINK,Chain, 41.4mm Pitch

1шт.
