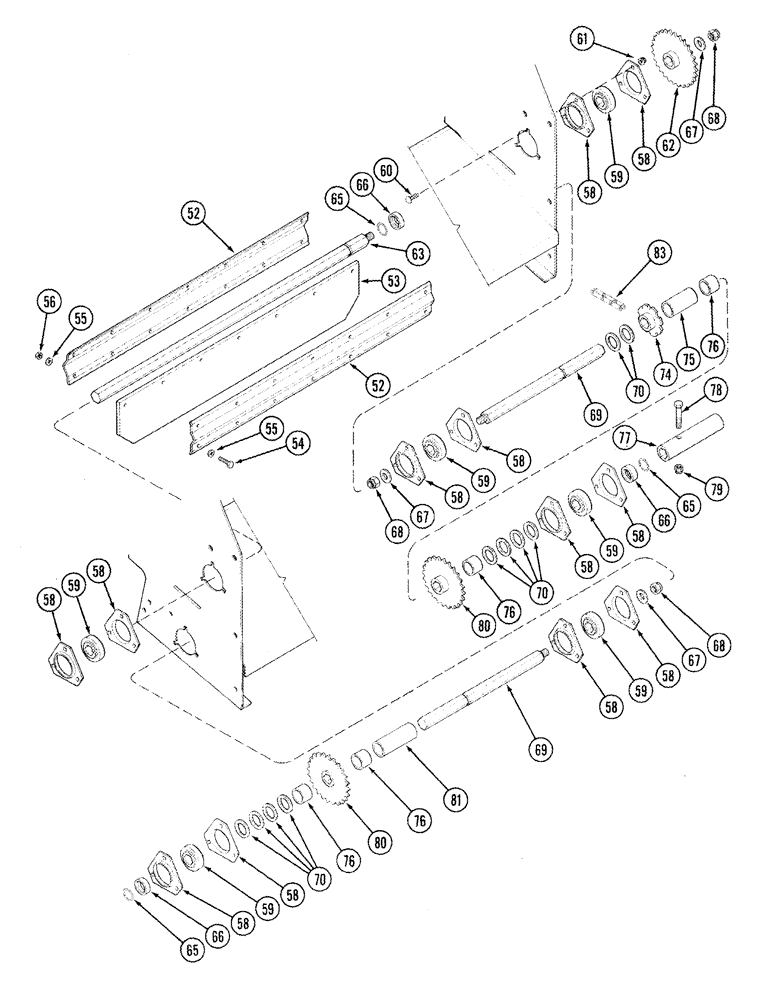

Запчасти Case IH 1054 (09-06) - FEEDER ADAPTER 915 COMBINE WITH QUICK-ATTACH FEEDER - 8000 (09) - CHASSIS

1043/1044/1054/1063/1064/1083

1шт.

52

199083C1

STIFFENER

2шт.

53

199085C2

LARGE PLATE

PLATE, LARGE

2шт.

54

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

55

496-21041

WASHER,13/32" x 13/16" x .089", HDN

1шт.

56

231-4116

NUT,3/8"-16, GB

3/8

1шт.

58

180955C1

FLANGED BEARING,0.375"

12шт.

59

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

6шт.

60

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 x 3/4

18шт.

61

231-5146

FLANGE NUT,3/8"-16

18шт.

62

199123C1

SPROCKET ASSY.

1шт.

63

199087C1

SHAFT

1шт.

65

575186R1

SNAP RING

3шт.

66

935856R2

SPACER

3шт.

67

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

3шт.

68

102609R1

LOCK NUT,3/4"-16

3/4 NF

3шт.

69

199089C2

SHAFT

2шт.

70

495-81211

WASHER,34.14mm ID x 50.8mm OD x 3.4mm Thk

1-11/32 x 2 x 7/64

1шт.

74

176342C1

SPROCKET,8T

1шт.

75

199081C1

SPACER

Left Hand

1шт.

77

176537C2

SPLINED COUPLING,28.83mm ID x 44.45mm OD x 203.2mm L

1шт.

78

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1/2 x 2-1/2

1шт.

79

231-1448

NUT,1/2"-13, GB

1шт.

80

176340C1

DRIVE SPROCKET

2шт.

81

199098C1

SPACER

Right Hand

1шт.

81

199099C1

SPACER

Right Hand

1шт.

83

NSS

NOT SOLD SEPARAT

Chain Assy, Use 27 links of 569089R91, 1 x 242-1310, 2 x 242-1710

1шт.

569089R91

CHAIN (AG),10' L, 1.0" Pitch

10 ft, Bulk Length

1шт.

242-1310

SPRING CLIP

Connecting

1шт.

242-1710

CHAIN LINK

Offset

2шт.
