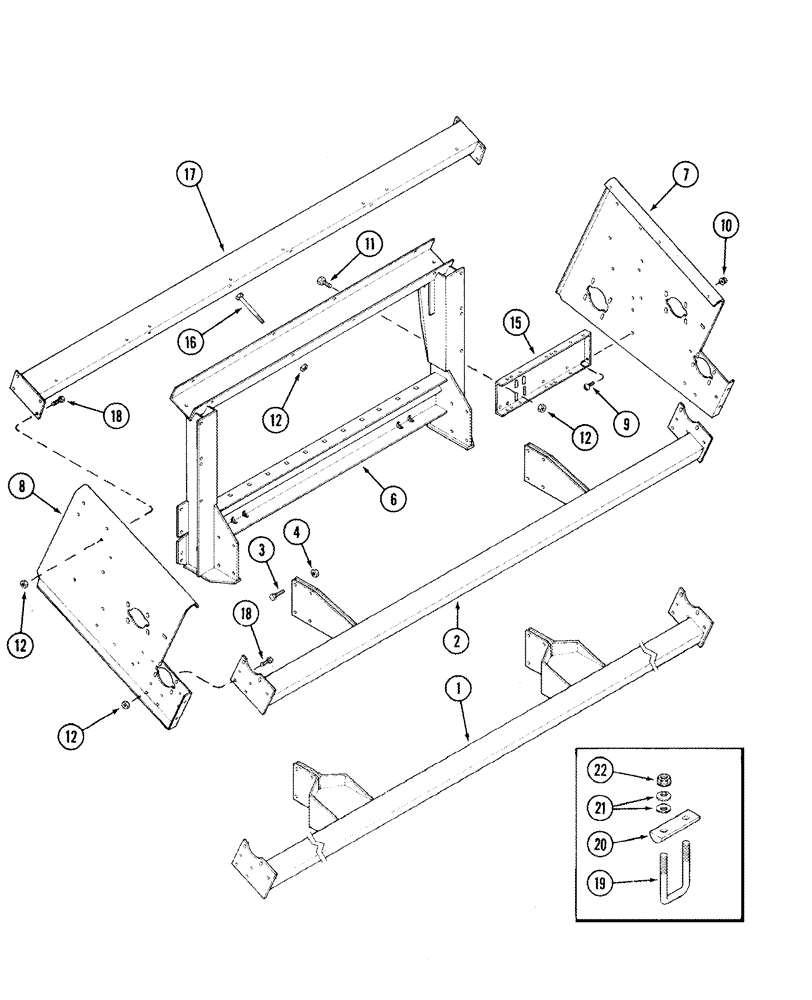

Запчасти Case IH 1054 (09-01) - MAIN FRAME ASSEMBLY 1043, 1044, 1054, 1063 (09) - CHASSIS

1

199580C1

SUPPORT TUBE

1063(1)

1шт.

2

199577C1

SUPPORT TUBE

1043(1)

1шт.

2

199578C1

SUPPORT TUBE

1044(1)

1шт.

2

199579C1

SUPPORT TUBE

1054(1)

1шт.

3

326-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

8шт.

4

329-1010

NUT,5/8"-11, G8

8шт.

6

176029C3

FRAME

Main

1шт.

7

199792C5

SUPPORT

Left Hand

1шт.

8

1306738C2

SUPPORT

Right Hand

1шт.

10

231-5146

FLANGE NUT,3/8"-16

2шт.

11

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

12

425-108

NUT,1/2" - 13, Gr 5

20шт.

15

199682C3

SUPPORT

1043(1)

1шт.

15

199602C1

SUPPORT

1044(1)

1шт.

15

199603C3

SUPPORT

1054(1)

1шт.

15

199604C3

SUPPORT

1063(1)

1шт.

16

413-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

1/2 x 6

4шт.

17

199612C1

SUPPORT TUBE

1043(1)

1шт.

17

199613C1

SUPPORT TUBE

1044(1)

1шт.

17

199614C1

SUPPORT TUBE

1054(1)

1шт.

17

199615C1

SUPPORT TUBE

1063(1)

1шт.

18

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

14шт.

19

177134C3

U-BOLT,5/8" - 11 x 2.18" W x 4.60" L

BOLT "U"

2шт.

20

177140C2

BAR

2шт.

21

155960C1

BELLEVILLE WASHER

8шт.

22

231-14410

NUT,5/8"-11, GB

4шт.

9

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

2шт.
