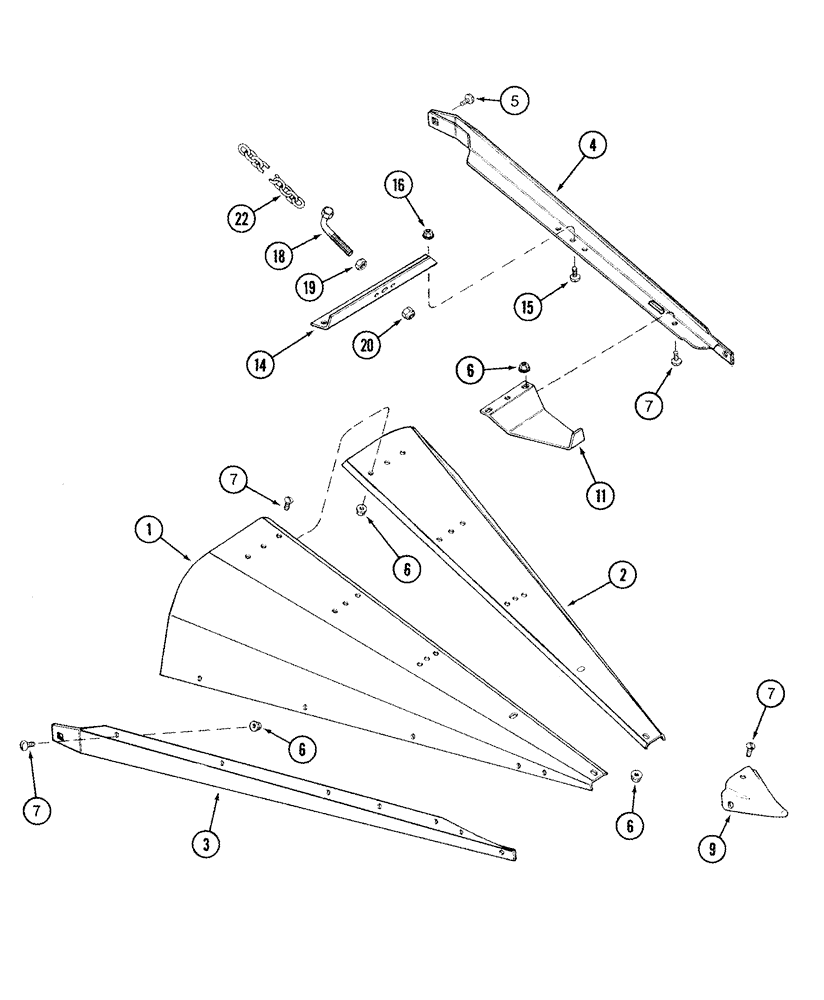

Запчасти Case IH 1044 (09-36) - INNER DIVIDER SHIELDS - STEEL (09) - CHASSIS

28 and 30 Inch Row Spacing

1шт.

176228C95

DIVIDER

Consists Of 1 - 16

1шт.

1

176230C3

SHEET

1шт.

2

176229C3

SHEET

1шт.

3

176232C4

SUPPORT

1шт.

4

176231C4

SUPPORT

1шт.

5

450-73112

SERRATED SCREW,Truss HD, 5/16" - 18 x 3/4"

5/16 x 3/4 in

6шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

22шт.

7

1338233C1

SERRATED SCREW,Cross Rec Truss Hd, 5/16" - 18 x 1"

16шт.

9

176227C1

POINT

1шт.

11

199070C2

SUPPORT

1шт.

14

176484C3

ANGLE

1шт.

15

1319406C1

SERRATED SCREW,Cross Rec Truss Hd, 3/8" - 16 x 1", Spcl

3/8 x 1

2шт.

16

231-5146

FLANGE NUT,3/8"-16

2шт.

18

180040C1

BOLT,Hex, 1/2" - 13 x 4 1/4"

1шт.

19

425-108

NUT,1/2" - 13, Gr 5

1шт.

20

231-1448

NUT,1/2"-13, GB

1шт.

22

199217C2

CHAIN (AG)

1шт.
