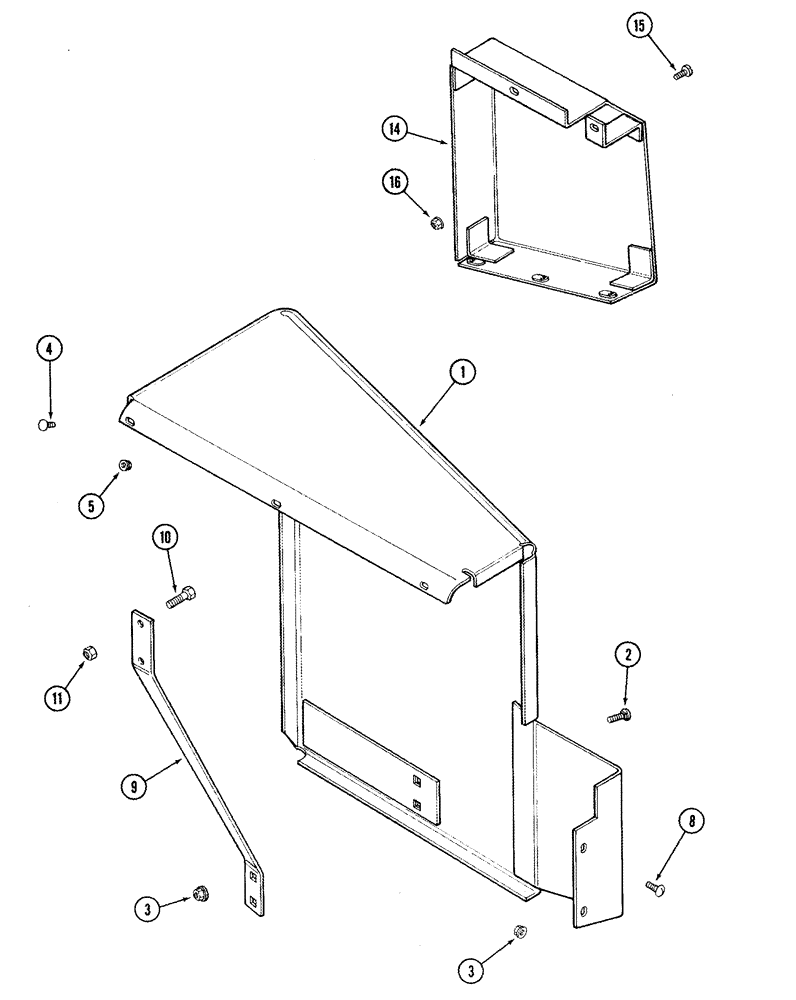

Запчасти Case IH 1043 (09-45) - WHEEL SHIELD - 1043 (09) - CHASSIS

1

1306014C1

GUARD

Right Hand

1шт.

1

1306013C1

GUARD

Left Hand

1шт.

2

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

4шт.

3

231-5146

FLANGE NUT,3/8"-16

8шт.

4

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

6шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

8

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

4шт.

9

1306020C1

SUPPORT

Right Hand

1шт.

9

1306019C1

SUPPORT

Left Hand

1шт.

10

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

11

425-108

NUT,1/2" - 13, Gr 5

4шт.

14

1306536C1

GUARD

1шт.

15

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.
