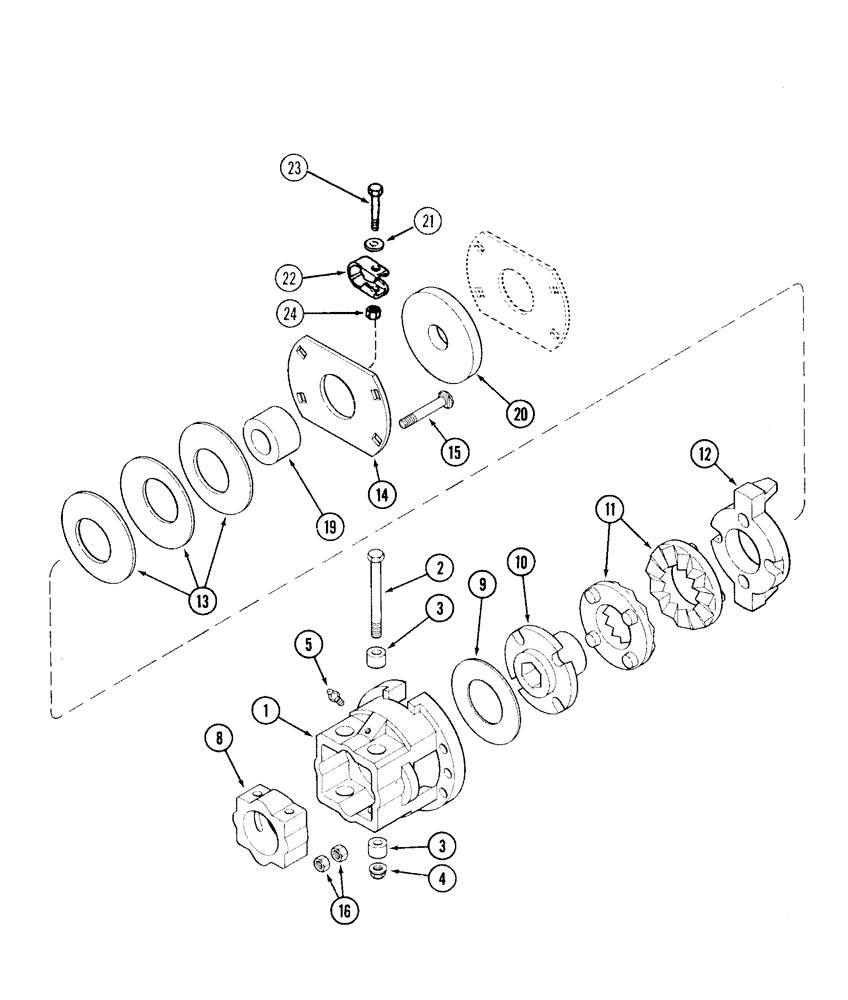

Запчасти Case IH 1043 (09-20) - STALK ROLL DRIVE BELLEVILLE SPRING CLUTCH - 1043, 1063, 1083 (09) - CHASSIS

1043, 1063

1шт.

With 28 Inch Row Spacing

1шт.

Except For 2 Center Rows on 1063 Corn Head

1шт.

1083

1шт.

With 28 Inch Row Spacing

1шт.

NSS

NOT SOLD SEPARAT

Clutch Assy, Order Component Parts Below, Consists Of 1 - 16

1шт.

1

199689C5

HOUSING

1шт.

2

326-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 8

2шт.

3

199804C1

SPACER

4шт.

4

1306680C1

FLANGE NUT

3/8

2шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

8

176387C1

HUB

1шт.

9

1327069C1

WASHER

1шт.

10

176499C1

HUB

1шт.

11

168370C2

RATCHET,Clutch Slip, 50.04mm ID x 94.49mm OD

2шт.

12

180032C1

HOLDER

1шт.

13

176392C1

LOCK WASHER

3шт.

14

1306550C1

RETAINER

1шт.

15

433-636

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5

3/8 x 2-1/4

4шт.

16

425-106

NUT,3/8"-16, Cl 5

4шт.

19

1327005C1

SEAL

1шт.

20

1306966C1

SEAL

1шт.

21

495-81211

WASHER,34.14mm ID x 50.8mm OD x 3.4mm Thk

1-11/32 x 2 x 7/64, If Used

4шт.

22

225265R1

CLAMP

If Used

4шт.

23

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1/2 x 2-1/2, If Used

4шт.

24

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

If Used

4шт.
