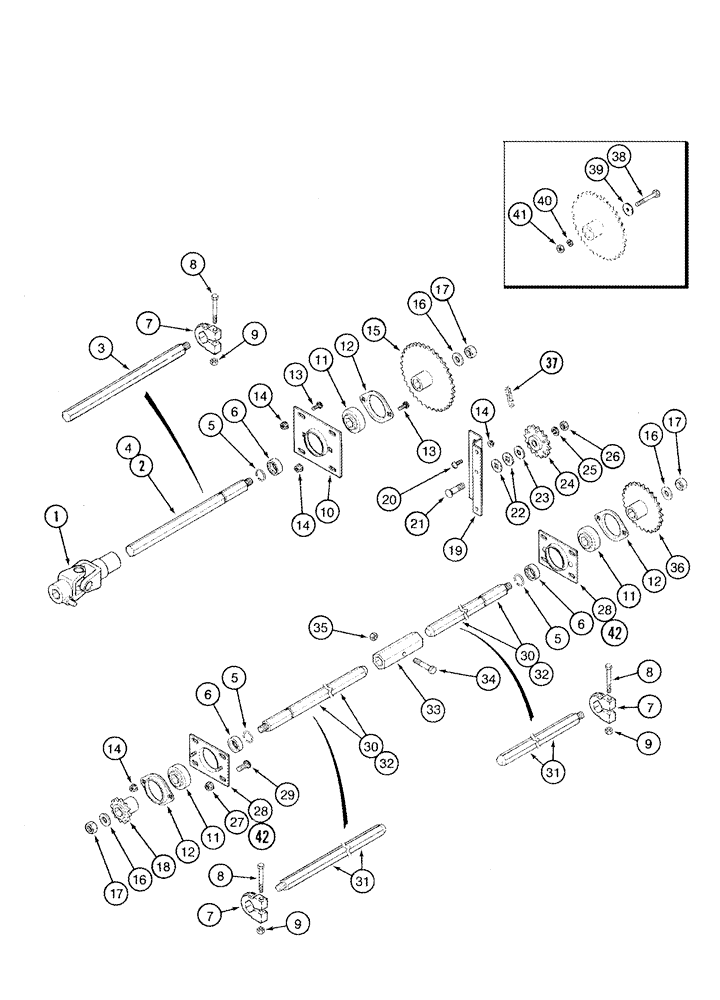

Запчасти Case IH 1043 (09-14) - MAIN DRIVE - 1043, 1044 (09) - CHASSIS

1

REF

INSTRUCTION

Coupling Assy, See Page(s) 9-61

1шт.

2

1306821C1

SHAFT

18-1/2 in, No Longer Available, Order 1327243C2

1шт.

2

1306820C1

SHAFT

33-1/2 in, Order 1327244C2

1шт.

3

1327243C1

SHAFT

18-1/2 in, No Longer Available, Order 1327243C2

1шт.

3

1327244C1

SHAFT

33-1/2 in, Order 1327244C2

1шт.

4

1327243C2

SHAFT

18-1/2 in, 1043(1)

1шт.

4

1327244C2

SHAFT

33-1/2 in, 1044(1)

1шт.

5

575186R1

SNAP RING

3шт.

6

935856R2

SPACER

3шт.

7

1327106C1

COLLAR

3шт.

8

326-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

3шт.

9

232-4136

LOCK NUT,3/8"-16, GC

3шт.

10

1306304C1

FLANGE

1шт.

11

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

3шт.

12

599382R1

FLANGED BEARING

3шт.

13

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 x 3/4

6шт.

14

231-5146

FLANGE NUT,3/8"-16

11шт.

15

199647C1

SPROCKET,35T

35T, Standard Speed

1шт.

15

199643C1

DRIVE SPROCKET

30T, Intermediate Speed

1шт.

15

199649C1

SPROCKET ASSY.

26T, Slow Speed, 1043(1)

1шт.

16

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

3шт.

17

323956A1

JAM NUT

3/4 NF

3шт.

18

199727C1

DRIVE SPROCKET

15T, Drive

1шт.

19

199678C1

SUPPORT

LH

1шт.

20

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

1шт.

21

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

5/8 x 2

1шт.

22

498-81010

SQ HOLE WASHER,16.66mm ID x 38.1mm OD x 2.67mm Thk

Square Hole, 21/32 x 1-1/2 x 3/32

2шт.

23

495-81026

WASHER,21/32" x 1 1/2" x .060"

21/32 x 1-1/2 x 3/64

1шт.

24

629972R92

SPROCKET ASSY.

15T, Idler

1шт.

25

492-11062

BEARING WASHER,5/8"

1шт.

26

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8

1шт.

27

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

28

199681C1

FLANGE

Also Order 42

2шт.

29

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1/2 x 1

8шт.

30

1306218C1

DRIVE SHAFT

58 in, No Longer Available, Order 1327237C2

2шт.

30

1306219C1

DRIVE SHAFT

73 in, Order 1327238C3

2шт.

31

1327237C1

SHAFT

57-11/16 in, No Longer Available, Order 1327237C2

2шт.

31

1327238C1

SHAFT

72-11/16 in, Order 1327238C3

2шт.

32

1327237C2

SHAFT

57-11/16 in, 1043(2)

1шт.

32

1327238C3

SHAFT

72-11/16 in, 1044(2)

1шт.

33

1306158C1

SPACER

1шт.

34

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1/2 x 2-1/2

1шт.

35

231-1448

NUT,1/2"-13, GB

1шт.

36

199645C1

SPROCKET ASSY.

24T, Drive

1шт.

37

199870C92

CHAIN (AG)

Use 99 links of 1793D, 1 x 241-4316, 2 x 241-4716

1шт.

1793D

CHAIN (AG)

No. 60H, 10 ft, Bulk Length

1шт.

241-4316

CHAIN LINK

1шт.

241-4716

LINK,19.05mm Pitch

2шт.

Spare Sprocket Mounting Hardware

1шт.

Consists Of 38 - 42

1шт.

If Used

1шт.

38

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

1шт.

39

495-81122

WASHER,.344" x 1 1/2" x .120"

11/32 x 1-1/2 x 7/64

1шт.

40

492-11031

LOCK WASHER,5/16"

1шт.

41

425-105

NUT,5/16"-18, G5

1шт.

42

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 x 3/4

2шт.
