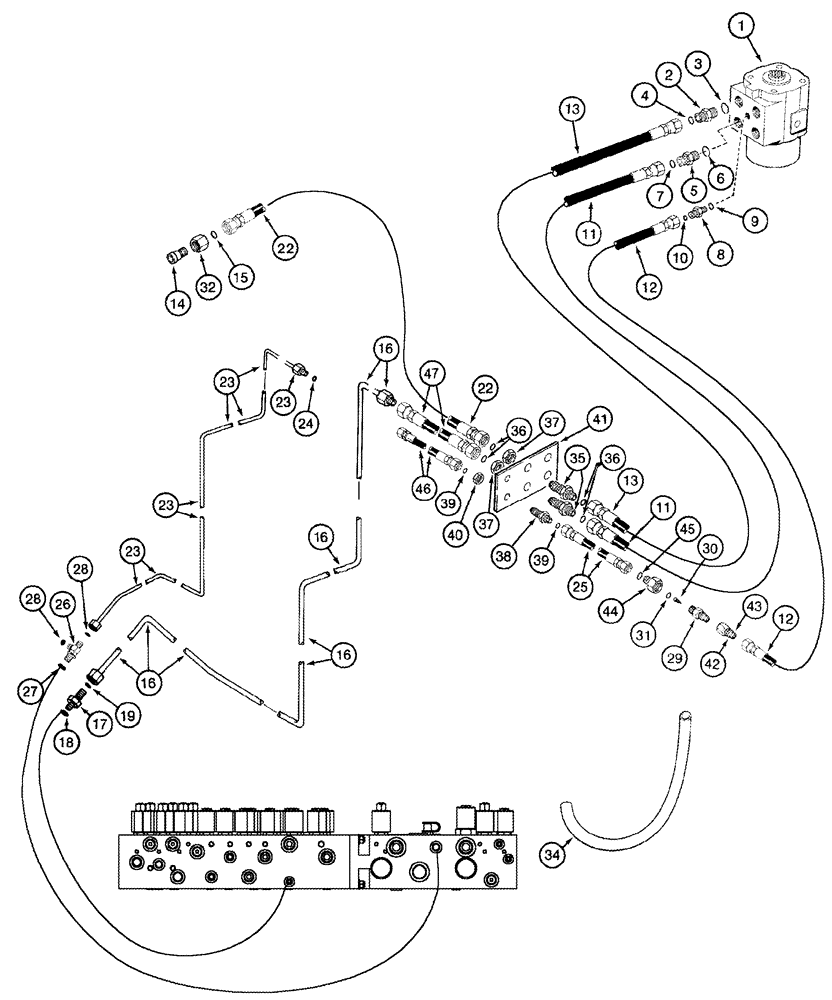

Запчасти Case IH CPX620 (05-02) - HYDRAULICS STEERING (04) - STEERING
№
Артикул
Название
Примечание
Количество
1
387550A2
STEERING VALVE
Steering, No Service Parts
1шт.
2
201-102
HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB
Includes 3, 4
1шт.
3
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
4
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
5
175170A1
ADAPTER
11/16 fc x 3/4 Or, Inc. 6, 7
1шт.
6
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
7
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
8
201-100
HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB
9/16 fc x 7/16 Or, Inc. 9, 10
1шт.
9
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
10
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
1шт.
11
187655A1
HOSE
1830 mm (72 in), Steering Supply
1шт.
12
187644A1
HOSE
360 mm (14-1/8 in), Sensing
1шт.
13
187656A1
HOSE
1830 mm (72 in), Steering Return
1шт.
14
201-142
REDUCER,11/16"-16 Male x 1 3/16"-16 Fem, ORFS
11/16 fc x 1-3/16 fem fc, Inc. 15
1шт.
15
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
16
1546031C1
TUBE,980, 1305.9 mm Length
Supply Valve
1шт.
17
201-101
HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB
Incl 18, 19
1шт.
18
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
19
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
22
187647A1
HOSE
890 mm (35 in), Return
1шт.
23
1546032C1
TUBE,617.8, 1254.9 mm Length
Sensing Valve
1шт.
24
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
1шт.
25
187646A1
HOSE
1270 mm (50 in), Sensing
1шт.
26
201-435
TEE,9/16"-18 x 7/16"-20 Run, ORFS
Inc. 27, 28
1шт.
27
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
28
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
2шт.
29
1980237C2
CHECK VALVE
Inc. 30, 31
1шт.
30
NSS
NOT SOLD SEPARAT
SCREEN
1шт.
31
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
32
203-904
TUBE NUT,1 3/16"-12 ORFS
1шт.
34
191134A1
HOSE,60.3mm ID x 956mm L
965 mm (38 in)
2шт.
35
201-120
HYD CONNECTOR,11/16"-16, Blkhd, ORFS
11/16 fc x blkhd fc, Inc. 36, 37
2шт.
36
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
2шт.
37
201-909
BHD LOCK NUT,Blkhd, 11/16"-16
1шт.
38
201-108
HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS
Includes 39, 40
1шт.
39
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
2шт.
40
218-1254
LOCK NUT,Blkhd, 9/16"-18
1шт.
41
184359A2
LARGE PLATE
PLATE, LARGE
1шт.
42
218-791
REDUCER,37 Degree, 1/2" x 1/4" Tube
1шт.
43
218-344
TUBE NUT,37 Degree, 3/4"-16, Type B
1шт.
44
201-138
REDUCER,11/16"-18 Male x 13/16"-16 Fem, ORFS
11/16 fc x 13/16 fem fc, Inc. 45
1шт.
45
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
46
187653A2
HOSE ASSY.
1450 mm (57 in), Sensing
1шт.
47
187648A1
HOSE
1015 mm (40 in), Supply
1шт.
48
324826A1
GROMMET
294 mm (11-5/8 in), Not Illustrated
1шт.
Выбрано товаров: 45
