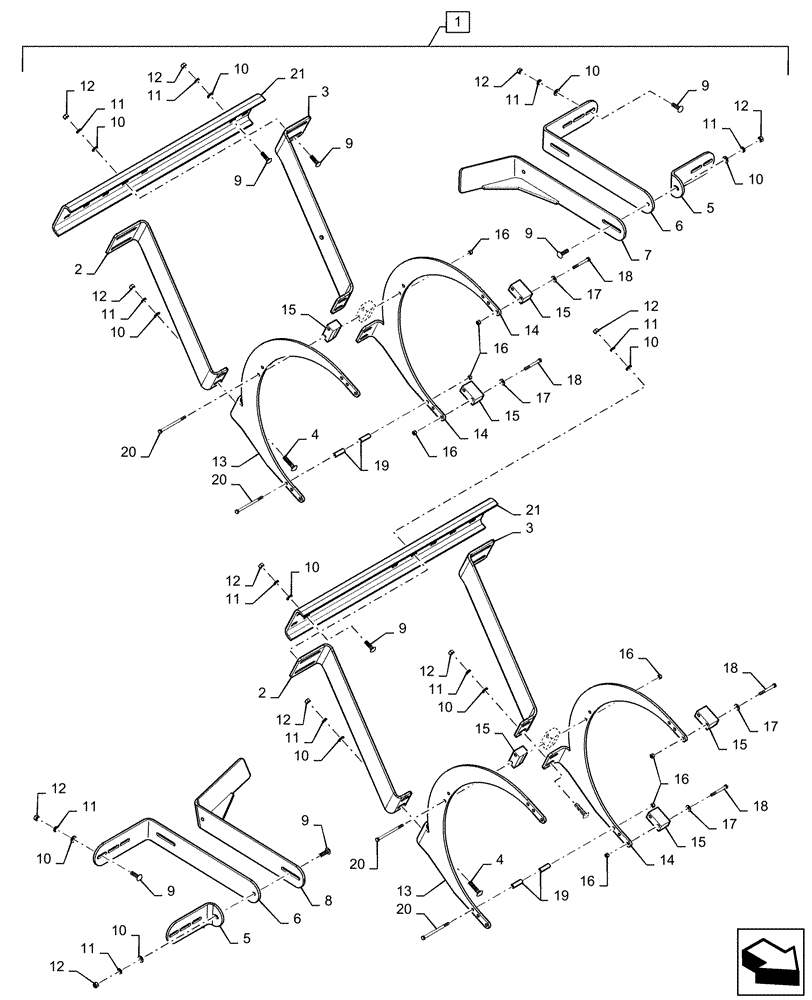

Запчасти Case IH CPX620 (06-23) - BI-DIRECTIONAL MUD SCRAPER, NARROW ROWS (03) - POWER TRAIN

1

84559007

PACKAGE

Mud Scraper, Narrow Rows, Incl 2 - 21

1шт.

2

435620A1

BAR

Mud Scraper RH

2шт.

3

435621A1

BAR

Mud Scraper LH

2шт.

4

433-836

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

4шт.

5

87455840

ANGLE

Mud Scraper, Inner Front

2шт.

6

87455841

ANGLE

Mud Scraper, Inner Rear

2шт.

7

392484A1

BRACKET

Mud Scraper, RH

1шт.

8

392485A1

BRACKET

Mud Scraper, LH

1шт.

9

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

28шт.

10

495-11053

WASHER,1/2", SAE

32шт.

11

495-11050

WASHER

32шт.

12

425-108

NUT,1/2" - 13, Gr 5

32шт.

13

84356294

BAR

Mud Scraper, Narrow Row, RH

2шт.

14

84356292

BAR

Mud Scraper, Narrow Row, LH

2шт.

15

222680A2

GUIDE

Basket Wear Strip

12шт.

16

232-4146

NUT,3/8"-16, GC

24шт.

17

495-21044

WASHER,3/8"

16шт.

18

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

16шт.

19

221338H1

SPACER,10.3mm ID x 15.88mm OD x 50.8mm L

8шт.

20

413-688

BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 5

8шт.

21

87455822

CHANNEL

Mud Scraper

2шт.
