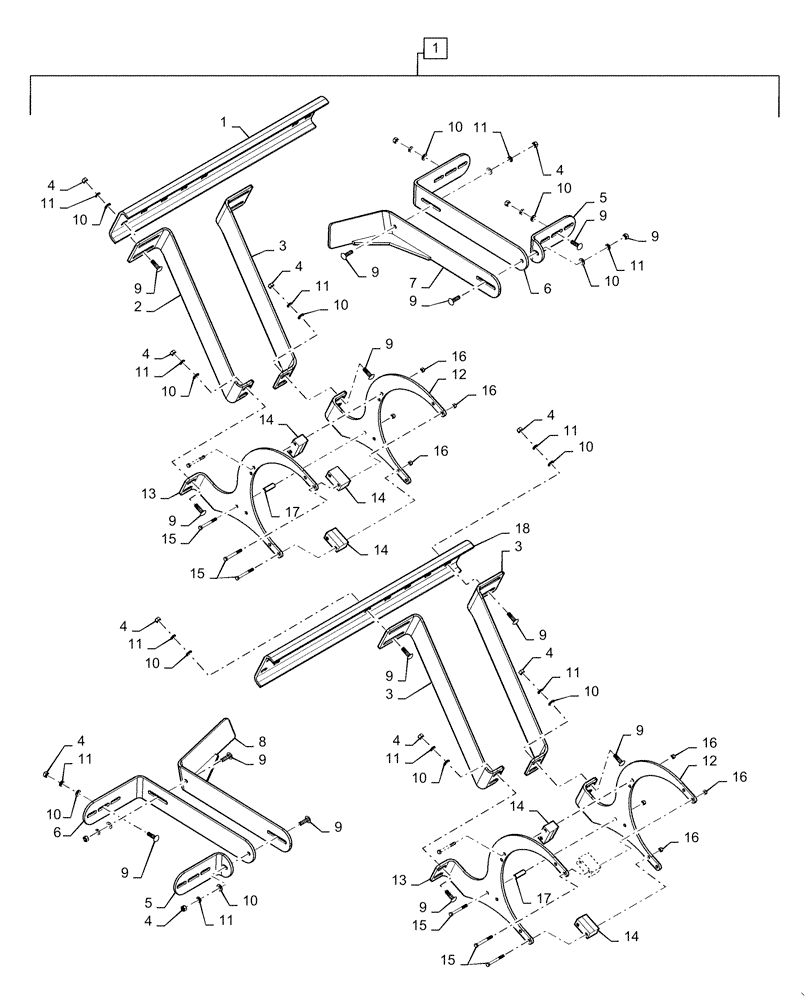

Запчасти Case IH CPX620 (06-22) - BI-DIRECTIONAL MUD SCRAPERS, WIDE ROWS (03) - POWER TRAIN

1

84559006

PACKAGE

Mud Scrapper, Wide Rows, Incl 2 - 18

1шт.

2

435620A1

BAR

Mud Scrapper Right

2шт.

3

435621A1

BAR

Mud Scrapper Left

2шт.

4

425-108

NUT,1/2" - 13, Gr 5

36шт.

5

87455840

ANGLE

Inner Front

2шт.

6

87455841

ANGLE

Inner Rear

2шт.

7

392484A1

BRACKET

RH

1шт.

8

392485A1

BRACKET

LH

1шт.

9

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

36шт.

10

496-11053

WASHER,17/32" x 1 1/16" x .095", HDN

36шт.

11

492-11050

LOCK WASHER,1/2"

36шт.

12

84354982

BAR

Wide Row, RH

2шт.

13

84354985

BAR

Wide Row, LH

2шт.

14

222680A2

GUIDE

Basket Top Corner Wearstrip

6шт.

15

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

16шт.

16

232-4146

NUT,3/8"-16, GC

16шт.

17

221338H1

SPACER,10.3mm ID x 15.88mm OD x 50.8mm L

4шт.

18

87455822

CHANNEL

2шт.
