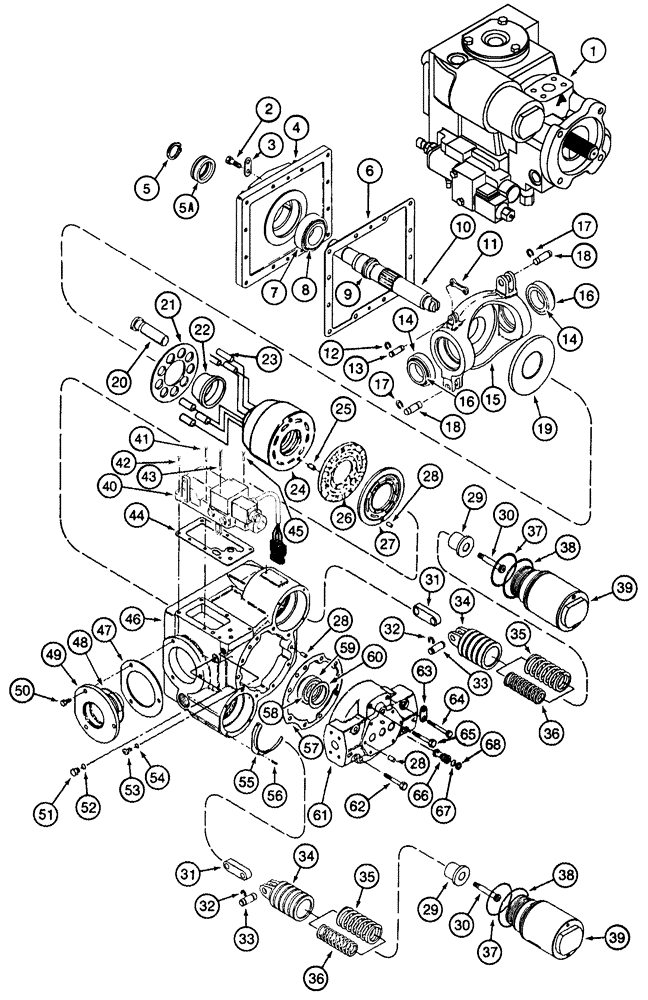

Запчасти Case IH CPX620 (06-07) - TANDEM PUMP ASSEMBLY - HYDROSTATIC (FRONT) (03) - POWER TRAIN

1

407438A1

HYDROSTATIC PUMP,105.4 CC

Front, Inc. 2 - 68

1шт.

2

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

12шт.

3

NSS

NOT SOLD SEPARAT

STRAP

1шт.

4

NSS

NOT SOLD SEPARAT

FLANGE

1шт.

5

100-21250

SNAP RING,2.50", Int, #250

1шт.

5a

87678486

SEAL KIT

1шт.

6

142399C1

GASKET

1шт.

7

445520A1

BEARING CUP

1шт.

445519A1

SHAFT

Input Shaft, Inc. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

BEARING, Cone

1шт.

9

NSS

NOT SOLD SEPARAT

No. 215, Ring, Retaining

1шт.

10

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

11

NSS

NOT SOLD SEPARAT

LINK, Connecting

1шт.

12

100-1125

SNAP RING,#25, Ext

2шт.

13

140765C1

PIN

1шт.

14

NSS

NOT SOLD SEPARAT

3-1/4 OD, Bearing, Cup

2шт.

15

NSS

NOT SOLD SEPARAT

PLATE, Swash

1шт.

16

NSS

NOT SOLD SEPARAT

2 ID, Bearing, Cone

2шт.

17

100-1356

SNAP RING,#56, Ext

4шт.

18

140766C1

PIN,14.22mm OD x 39.12mm L

Linkage

2шт.

19

NSS

NOT SOLD SEPARAT

PLATE, Thrust

1шт.

20

NSS

NOT SOLD SEPARAT

PISTON, Cylinder

9шт.

21

NSS

NOT SOLD SEPARAT

PLATE

1шт.

22

NSS

NOT SOLD SEPARAT

GUIDE

1шт.

23

NSS

NOT SOLD SEPARAT

DOWEL

6шт.

24

NSS

NOT SOLD SEPARAT

BARREL

1шт.

25

37-1510

DOWEL,5/16" x 5/8"

5шт.

26

NSS

NOT SOLD SEPARAT

PLATE

1шт.

27

NSS

NOT SOLD SEPARAT

PLATE, Valve

1шт.

28

37-1510

DOWEL,5/16" x 5/8"

7шт.

29

NSS

NOT SOLD SEPARAT

RETAINER

1шт.

30

NSS

NOT SOLD SEPARAT

SCREW

1шт.

31

NSS

NOT SOLD SEPARAT

LINK

1шт.

32

100-1375

SNAP RING,#75, Ext

2шт.

33

140766C1

PIN,14.22mm OD x 39.12mm L

1шт.

34

NSS

NOT SOLD SEPARAT

PISTON

1шт.

35

NSS

NOT SOLD SEPARAT

SPRING, Heavy

1шт.

36

NSS

NOT SOLD SEPARAT

SPRING, Light

1шт.

37

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

38

238-5237

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

1шт.

39

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

40

445482A1

CONTROL VALVE

Hydrostatic Pump, Inc. 41 - 45

1шт.

See Figure 06-09

1шт.

41

61-33132

HEX SOC SCREW,5/16"-18 x 2"

2шт.

42

61-33116

HEX SOC SCREW,5/16"-18 x 1"

3шт.

43

61-33154

HEX SOC SCREW,5/16" - 18 x 3-3/8"

1шт.

44

133756C1

GASKET

1шт.

45

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

46

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

142386C91

SHIM KIT

Trunnion Bearing, Inc. 47

1шт.

47

NSS

NOT SOLD SEPARAT

SHIM, 0.002 in

6шт.

47

NSS

NOT SOLD SEPARAT

SHIM, 0.005 in

4шт.

47

NSS

NOT SOLD SEPARAT

SHIM, 0.010 in

4шт.

47

NSS

NOT SOLD SEPARAT

SHIM, 0.020 in

4шт.

47

NSS

NOT SOLD SEPARAT

SHIM, 0.025 in

4шт.

48

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

2шт.

49

NSS

NOT SOLD SEPARAT

TRUNNION

2шт.

50

413-714

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5

6шт.

51

9672438

PLUG,7/16" - 20 ORB

Incl. 52

1шт.

52

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

53

278548

PLUG,Hex, 7/16"-20 ORB

Incl 54

1шт.

54

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

55

142408C1

RETAINER

2шт.

56

461-3086

HEX SOC SCREW,#8 - 32 x 3/8"

6шт.

57

92741C2

GASKET,0.38mm Thk

1шт.

58

445522A1

BEARING CUP

1шт.

59

445523A1

BEARING CONE

1шт.

445524A1

SHIM

End Cover, Inc. 60

1шт.

60

NSS

NOT SOLD SEPARAT

SHIM, 0.003 in

1шт.

60

NSS

NOT SOLD SEPARAT

SHIM, 0.005 in

1шт.

60

NSS

NOT SOLD SEPARAT

SHIM, 0.010 in

1шт.

60

NSS

NOT SOLD SEPARAT

SHIM, 0.015 in

1шт.

60

NSS

NOT SOLD SEPARAT

SHIM, 0.020 in

1шт.

60

NSS

NOT SOLD SEPARAT

SHIM, 0.030 in

1шт.

61

NSS

NOT SOLD SEPARAT

COVER, End

1шт.

62

326-732

BOLT,Hex, 7/16" - 14 x 2", Gr 8

2шт.

63

NSS

NOT SOLD SEPARAT

STRAP, If Equipped

1шт.

64

24858R1

BOLT,Hex, 7/16" - 14 x 5", Gr 8

4шт.

65

326-748

BOLT,Hex, 7/16" - 14 x 3", Gr 8

2шт.

140769C1

CHECK VALVE

Inc. 66 - 68

2шт.

66

NSS

NOT SOLD SEPARAT

BODY

1шт.

67

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

1шт.

68

140770C1

RING

1шт.
