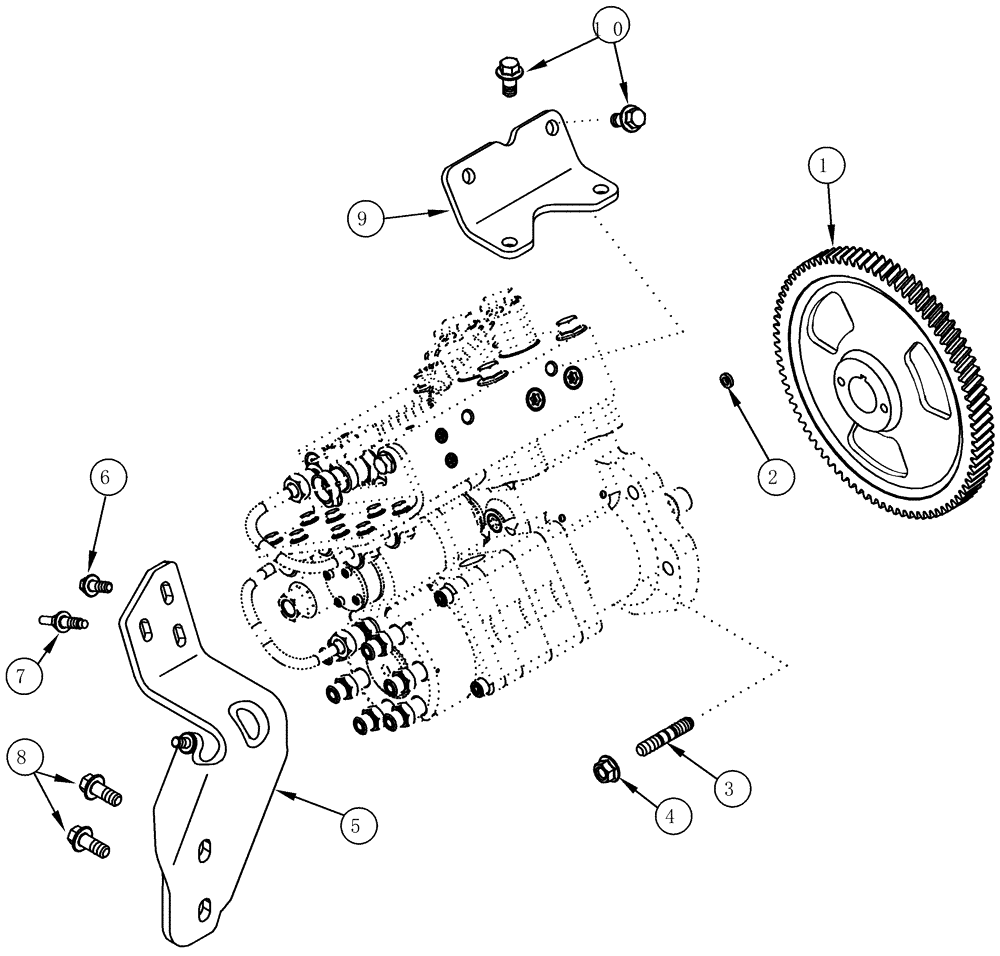

Запчасти Case IH CPX620 (03-14) - FUEL INJECTION PUMP GEAR AND MOUNTING BRACKETS - BSN Y6T011701 (02) - FUEL SYSTEM

1

J942764

GEAR

1шт.

2

J926722

SEALING RING,Square, 2.51mm Thk x 6.27mm ID, -108

1шт.

3

86991263

STUD,M10 x 1.5 x 55

(2-5/32")

4шт.

4

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

5

J943440

SUPPORT

1шт.

6

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

7

J909310

SCREW,Hex Flg, M8 x 1.25 x 25mm, Cl 10.9

Special

1шт.

8

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

2шт.

9

J991108

SUPPORT

1шт.

10

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

4шт.
