Запчасти Case IH CPX620 (03-05) - PUMP, FUEL TRANSFER - BSN Y6T011701 (02) - FUEL SYSTEM

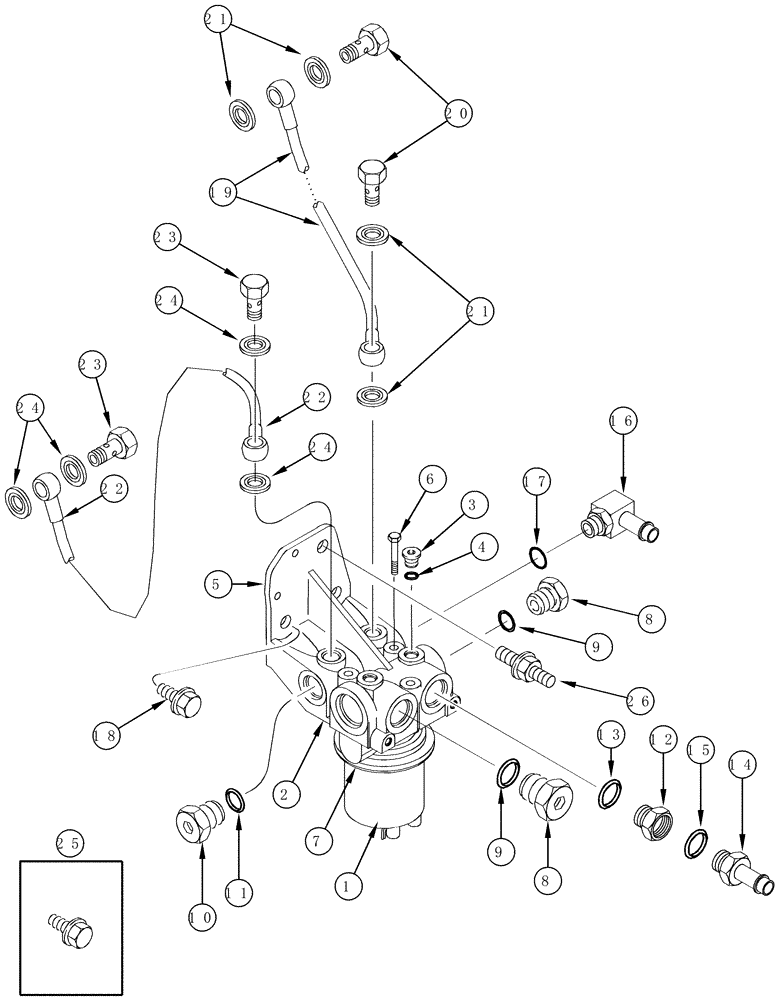

Схема запчастей Case IH CPX620 - (03-05) - PUMP, FUEL TRANSFER - BSN Y6T011701 (02) - FUEL SYSTEM
17
7
3
22
1
14
26
10
11
9
24
5
8
21
13
20
15
12
18
9
16
24
24
23
22
25
8
19
23
2
6
21
4

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Pump Assy, Complete, Order J949093

1шт.

2

J949093

FEED PUMP

Fuel Transfer, Inc. 2 - 7

1шт.

3

J678923

PLUG,M10 x 1

10 mm, Includes 4

2шт.

4

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

5

NSS

NOT SOLD SEPARAT

BRACKET

1шт.

6

414-432

BOLT,Hex, 1/4" - 28 x 2", Gr 5

3шт.

7

J964385

GASKET, Mounting

1шт.

8

311184A1

PLUG

7/8-16, Inc. 9

2шт.

9

87405641

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

3/4 ID x 3/32

1шт.

10

311215A1

PLUG

1/2 OD Or, Inc. 11

1шт.

11

237-8008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 8, 90 Duro

1шт.

12

J944823

ADAPTER

Inc. 13

1шт.

13

87405641

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

3/4 ID x 3/32

1шт.

14

J931014

FITTING

Inc. 15

1шт.

15

237-8008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 8, 90 Duro

1шт.

16

J944825

COUPLING

Inc. 17

1шт.

17

237-8008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 8, 90 Duro

1шт.

18

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

2шт.

19

J943599

FUEL TUBE,8 mm OD

1шт.

20

J903035

BANJO BOLT

M12 x 24

2шт.

21

87415913

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

12 x 19 x 1.5 mm

4шт.

22

J948229

FUEL TUBE,0.394" OD

1шт.

23

J924725

BANJO BOLT,M14 x 1.5 x 26mm

2шт.

24

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

14 x 20 x 1 mm

4шт.

25

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

1шт.

26

J944099

STUD

3/8 UNC x M8

1шт.

Выбрано товаров: 26
