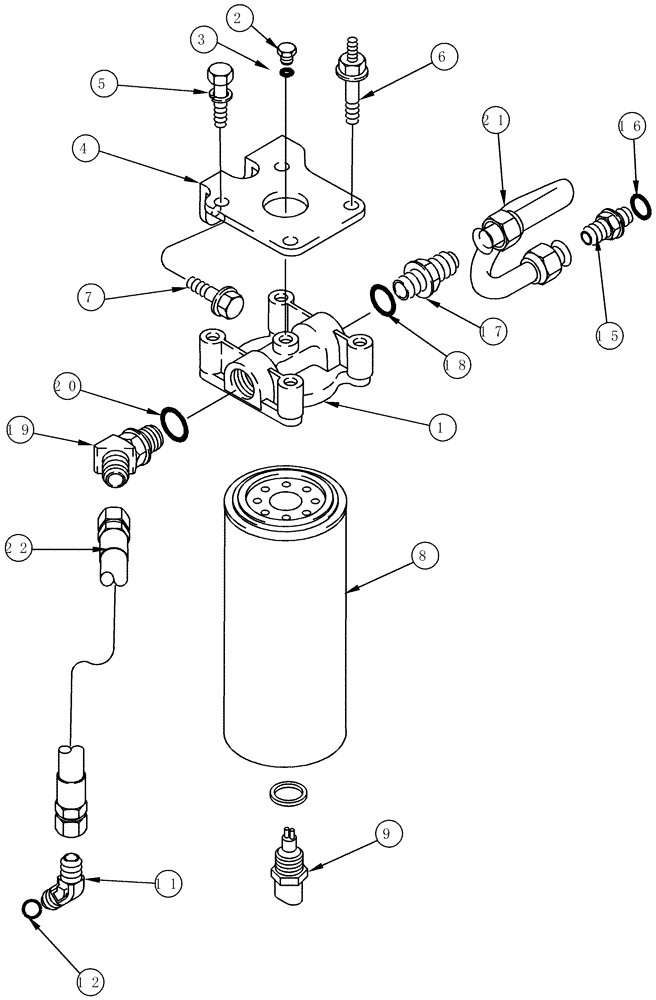

Запчасти Case IH CPX620 (03-03) - FUEL FILTER AND CONNECTIONS - BSN Y6T011701 (02) - FUEL SYSTEM

1

J944987

HEAD

Filter

1шт.

2

J678923

PLUG,M10 x 1

10 mm, Inc. 3

1шт.

3

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

4

J944845

BRACKET

1шт.

5

A77546

BOLT,Hex, 3/8" - 16 x 1.25"

3/8 NC x 1-1/4 in

3шт.

6

J944099

STUD

1шт.

7

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

2шт.

J800394

FUEL FILTER

Fuel Filter, Inc. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

FILTER, Fuel

1шт.

9

NSS

NOT SOLD SEPARAT

SENSOR

1шт.

10

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

1шт.

11

311171A1

ELBOW

45 deg, Inc. 12

1шт.

12

237-8008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 8, 90 Duro

1шт.

15

J202101

PLUG

ADAPTER Inc. 16

1шт.

16

237-8012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 8, 90 Duro

1шт.

17

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

1шт.

18

237-8010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 8, 90 Duro

1шт.

19

326380A1

ELBOW

45 deg, Inc. 20

1шт.

20

237-8010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 8, 90 Duro

1шт.

21

J944213

FUEL TUBE,0.625" OD

1шт.

22

J944988

FUEL HOSE,12.00"

1шт.
